Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HD-F1650 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Large Size 1650mm Feeder Feeding Carton Box Die Cutting Machine Die Cutters Price | Maximum Paper Feeding Size: | 1650x1200mm |
|---|---|---|---|
| Minimum Paper Feeding Size: | 650x530mm | Maximum Speed Of Machine: | 4500 Sheets/h |
| Total Weight: | 39T | Total Power: | 34KW |
| Vlotage Supply: | 220V/380V | Maximum Die Cutting Size: | 1630x1180mm |
| High Light: | Large Size Carton Box Die Cutting Machine,Carton Box Die Cutting Machine 1650mm,Carton Box Die Cutting Machine 4500 Sheets/h |
||
Product Description

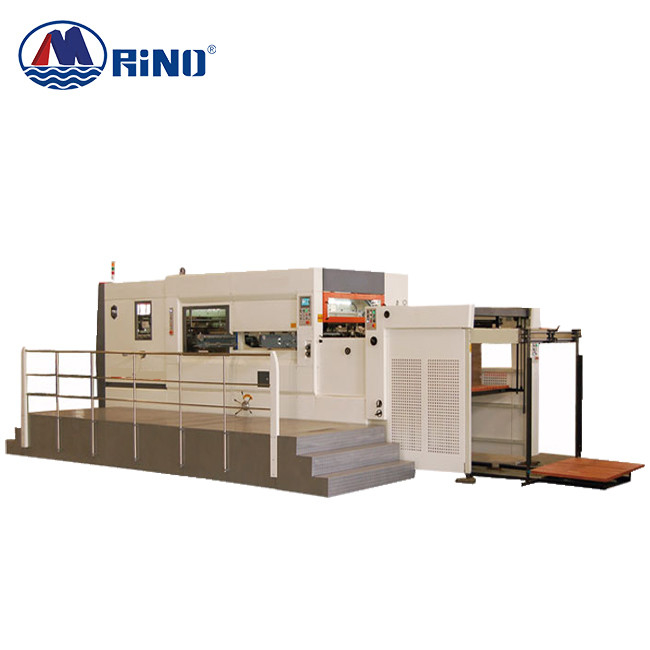

Large Size 1650mm Feeder Feeding Carton Box Die Cutting Machine Die Cutters Price
Carton Box Die Cutting Machine Introduction
Feeder paper feeding automatic flattening and full waste removal die-cutting machine, large format feeder paper feeding automatic flattening and full waste removal die-cutting machine, mainly for corrugated cardboard with thickness ≤7mm, high-speed top feeding feeder, Effectively prevent scratches on the surface of the paper during feeding.
Parameter of Die Cutting Machine
| Model | HD-F1650 |
| Max feeding cardboard size | 1650x1200mm |
| Min feeding cardboard size | 650x530mm |
| Max die cutting size | 1630x1180mm |
| Max die cutting pressure | 400T |
| Cardboard thickness | Corrugated board thickness ≤7mm (max. thickness) |
| Max die cutting speed | 4500 sheets/h |
| Weight | 39T |
| Total power | 34KW |
| Dimension | 11946x5549x2644mm |
Main Units
|
|
Feeder feeding unit
Feeder Feeding and pre-loading paper mechanism, automatic fine-tuning function of paper table, non-stop cycle paper loading function (optional), saving paper changing time and improving work efficiency.
|
|
|
Die cutting unit
Unique side positioning device and compensation mechanism are used to help the gripper bars moving in a line, ensuring the die cutting precision.
|
|
|
Paper receving unit
It is equipped with non-stop paper collection, automatically paper stacked and counted and shipped out of the machine
|
