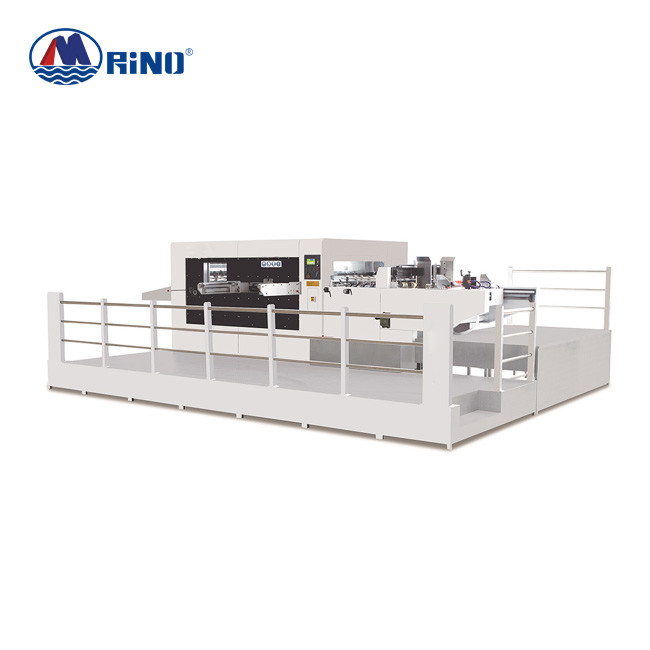

Lead Edge Feeding Die Cutting Creasing Machine 1700mm Automatic

Product Details:
Place of Origin: Shandong,China
Brand Name: RINO
Certification: CE
Model Number: HD-L1700
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 1700mm Automatic Lead Edge Feeding Die Cutting Creasing Machine Maximum Paper Feeding Size: 1700*1200mm
Minimum Paper Feeding Size: 500*450mm Die Cutting Accuracy: ±0.4mm
Maximum Speed: 4000pcs/h Total Power: 30KW
Total Weight: 24T Minimum Front Scrap Size: ≥8mm
High Light:

1700mm Carton Die Cutting Machine


Carton Box Die Cutting Creasing Machine


Automatic Die Cutting Creasing Machine

Product Description

1700mm Automatic Lead Edge Feeding Die Cutting Creasing Machine


Carton Box Die Cutting Machine Introduction


Fully automatic flat die-cutting machine is a special equipment developed by our company in combination with the superior performance of similar products at home and abroad, which is suitable for high-grade color boxes and color box die-cutting. The machine adopts high-strength gripper row, and the advanced open-grip gripper mechanism can adapt to various types of cardboard and corrugated paper; the front and rear positioning and side positioning mechanisms ensure the die-cutting accuracy of the paper. Equipped with high-precision intermittent mechanism; fast-acting pneumatic clutch, pneumatic locking plate. Using the programmable controller and man-machine interface, the working speed of the machine, the number of processed sheets, and the total running time of the machine are digitally displayed; the fault display of the machine makes the troubleshooting operation very convenient. The inverter is used to control the main motor, with stepless speed regulation and stable operation. The machine is equipped with sensors and safety devices in many places to ensure the normal operation of the machine and personal safety. The die-cutting pressure can be adjusted separately before and after, the manual turning is convenient and labor-saving, and it can also perform die-cutting without a mouth.


Carton Box Die Cutting Machine Parameter


Model HD-L1700
Paper processed cardboard E,C,B,AB The maximum thickness shall not exceed 8mm
Max. paper size 1700mm×1200mm
Min. paper size 500mm×450mm
Max. Die-cutting size 1640mm×1190mm
Feeding paper pile height 400mm
Delivery paper pile height 1200mm
Die cutting pressure 300T
Max. working speed 4500sheets/h
Processable paper carton board 1-8mm
Voltage 380V
Weight 24T


Main Units


Lead Edge Feeding Die Cutting Creasing Machine 1700mm Automatic 0

Paper feeding unit


The machine is suitable for different kinds of corrugated paper, and has strong applicability. The leading edge servo feeding system can adapt to the requirements of different thickness corrugated paper from F to 5 layers, overcome the temperature, humidity and paper weight differences caused by paper warping, and ensure smoother feeding of warp paper or thick paper. Install the side-beating baffle device, which ensures that the position of the paper stack is basically correct when feeding paper. Just input the length of the paper, and the paper wheel can completely send the paper out.


Lead Edge Feeding Die Cutting Creasing Machine 1700mm Automatic 1

Die cutting unit


The die-cutting plate is fastened with four-jaw nuts to ensure that the large-size paper die is always smooth, and has a pneumatic locking device, which is more effective when changing plates.
The steel plate is made of hardened manganese alloy steel and has a long service life. Pneumatic suspension device, easy to operate. Die-cutting pressure is adjusted electrically, which is more convenient and quicker. 300 tons of die-cutting pressure, whether it is cardboard, corrugated paper, thick paper can be easily die-cut. Abnormal automatic control such as die-cut paper or waste paper falling, realize humanization and automation of mechanical operation. Turbine, crank, toggle link type high-precision lower die-cutting table. Upper die-cutting table, static, high precision. Equipped with a multi-piece cam intermittent drive mechanism, 6 high-precision imported clamping bars, each with 11 clamping jaws (imported spring sheets) and matching pillows. The clamp bar is reserved to ensure that the step distance is correct and consistent. Sensors are installed on both the paper inlet and the paper outlet to detect the paper position and paper size. Centerline system for fast and accurate centering of cuts and strips. Equipped with electronic fault display and speed display device. High-speed rotary joint for longer service life.


Lead Edge Feeding Die Cutting Creasing Machine 1700mm Automatic 2

Delivery unit


Linear bearings are used for paper delivery and paper uniformity, with simple structure and perfect paper feeding. The machine can complete the delivery process without downtime. The take-up take-up reel allows quick and easy stack transfer, ensuring that the printed paper is latte-free.


Finished Products


Lead Edge Feeding Die Cutting Creasing Machine 1700mm Automatic 3


Main Electrical Appliances


No Name Brand Remark
1 Frequency converter Yaskawa Japan
2 PLC Siemens Germany
3 Electrical switches Omron/Schneider Japan/France
4 Touch screen Siemens Germany
5 Wallboard Chuanban China
6 Upper and lower platform Ductile iron China
7 Tooth row Aviation aluminum China
8 Tooth row chain TYC Taiwan
9 Double-row chain Renold Britain
10 Cam divider (intermittent box) Taiwan Taiwan
11 Die-cut steel plate 75Cr1 China
12 Main bearings NSK Japan
13 Worm gear Wear-resistant tin copper worm gear China
14 Pneumatic clutch OMPI s.r.l Italy
15 Knife plate liner 75Cr1 China
