1300mm Feeder Carton Box Die Cutting Machine 21KW

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HD-F1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 1300mm Feeder Feeding Carton Box Die Cutting Machine Maximum Paper Feeding Size: 1300×1020mm
Minimum Paper Feeding Size: 380×400mm Maximum Speed Of Machine: 6500 Sheets/h
Total Weight: 23T Total Power: 21KW
Vlotage Supply: 220V/380V Maximum Die Cutting Size: 1300×1010mm
High Light:

Carton Die Cutting Machine 21KW


1300mm Feeder Carton Die Cutting Machine

Product Description

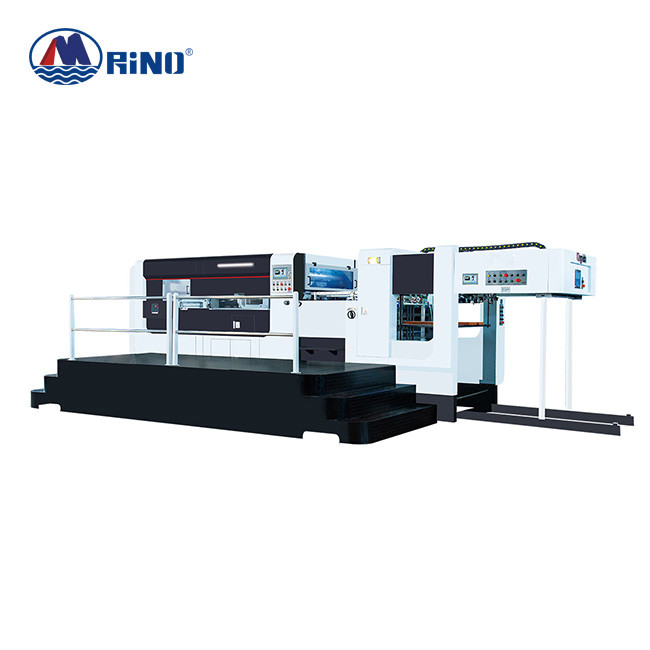

1300mm Feeder Feeding Carton Box Die Cutting Machine


Carton Box Die Cutting Machine Introduction


This machine is newly designed by our company based on the bending and warping of the paper, combined with our company's years of production experience in semi-automatic die-cutting machines and full-automatic die-cutting machines, and combined with the questions raised by a large number of customers. Wide suitable for more customers.


The paper feeder adopts chainless transmission, which is easy to operate and more humane. It is convenient for manual one-key conversion and adjustment. Hand-automatic integration means that it has two paper feeding methods, manual and automatic. The model is developed according to the customer's product requirements. When the paper quality is good, the automatic state can be adopted, and the speed is high and easy to use. When the paper quality is poor, the manual mode is adopted, and the conversion between the two is flexible and fast. The range of usable paper is wide, which can better adapt to the customer's product diversity and broaden the use range of the machine. It is a widely applicable model designed according to the actual needs of customers. The 1300 manual automatic integrated machine produced by our company discards the traditional chain for the transmission part of the paper section, and uses a large amount of synchronous belt and gear components at any cost. The fine-tuning mechanism can adjust the paper arrival time without limitation.


The left and right movement mechanism of the paper feeding table is electrically controlled, with a large adjustment distance. It has the function of automatic centering when the paper is changed. The manual and automatic shift position is changed by one key. When the paper is automatically pressed, the upper roller presses the paper, and the lower roller does not move.


The machine runs more Stable, smoother paper feeding, fast die-cutting speed; manual reciprocating movement for the lower point roller, large stroke, more suitable for curved paper, and equipped with a stop rule, manual paper feeding is simpler than ordinary semi-automatic paper feeding Convenience. Switch the electrical control, the cylinder will automatically switch after the switch is turned, without manual adjustment. Feida is powered by an independent servo motor to track the paper feed time of the host, and installs two motors to control the forward and backward movement, which can be manually adjusted. It is automatically adjusted when the hand is automatically switched, and when it is set to automatic, the feeder automatically adjusts to the maximum paper position and drops to the preset height. The customer fine-tunes the feeder position according to the size of the paper. When switching to manual, the feeder moves to the rear, rises to the highest position, and stops the paper feeding action, freeing up a lot of space for personnel. The entire conversion process only needs to manually remove the paper flipping board, and all the rest are automatically controlled, saving a lot of time, manpower, high efficiency and high degree of automation.



Parameter of Die Cutting Machine


Model HD-F1300
Max feeding cardboard size 1300×1020mm
Min feeding cardboard size 380×400mm
Max die cutting size 1300×1010mm
Max die cutting pressure 300T
Cardboard thickness Corrugated board thickness ≤8mm (max. thickness), ≥200gsm cardboard
Max die cutting speed 6000 sheets/h
Weight 23T
Total power 21KW
Dimension 9200×2500×2400mm


1. The paper feeding and die cutting size is the largest 1300*1025 among the same model of machines in the world. It can realize bite-free die cutting of many products.
2. The transmission mechanism adopts non-chain and transmission shaft transmission. Low noise.
3. The super-large intermittent mechanism is 320 intermittent (other production plants are 250 intermittent), the machine is more stable, and the machine speed can reach 6500 sheets/hour.
4. The main gripper bar chain adopts imported chain, which is pneumatically tightened, which increases the service life of the gripper bar chain.
5. One-key conversion of manual-automatic integration mode, feeder pans to the rear, completely leaving a place for manual feeding.
6. The heavy-duty feeder with 4 suctions and 5 feeds can easily feed tile paper within 8mm.
7. Wide application range: cardboard and corrugation within 8mm.
8. Die-cutting accuracy of cardboard +-0.1mm (cut medicine box can guarantee accuracy)
9. The paper feeder adopts full servo drive, adaptive to the speed of the host.
10. Unlimited adjustment of paper in place.
11. The machine adopts a fully automatic oil supply system to ensure proper lubrication of the machine.
12. The steel plate frame is made of 65 #manganese steel plate, the quenching hardness is HRC 55-60 degrees. The same hardness as the knife line, more wear-resistant.


Main Units


1300mm Feeder Carton Box Die Cutting Machine 21KW 0

Feeder feeding unit


The feeder can stop the action during manual feeding, reducing the wear of the feeder. The height of the feeder head and the adjustment of the size of the paper can be adjusted with one button, which saves labor and effort, and is convenient and time-saving. When the paper is too warped, you can manually feed the paper. The feeder can be adjusted to the end with one key. Multiple control panels provide you with more convenience . The combination of paper feeding frame and cylinder can easily solve problems. Imported paper conveyor belt has high friction, high wear resistance and longer use. The paper feeder adopts a special feeder with four suction and five feed to ensure the smooth conveyance of various papers. The power is large and the time is accurate. Advanced push-pull integrated gauge, easy to adjust. With fine adjustment, the small distance can be easily handled without stopping the machine. Push-pull gauge interchange conveniently and quickly.


1300mm Feeder Carton Box Die Cutting Machine 21KW 1

Die cutting unit


The die-cutting pressure is adjusted by four points, which can be adjusted easily by turning the handle. With 300 tons of pressure, cardboard, corrugated paper and thick board paper can be easily die-cut. Unusual automatic control of loose plates, paper falling, etc. realizes humanized automation of mechanical operation. Turbine crank toggle type high-precision flat die-cutting table. Fixed high-precision flat die cutting upper worktable. The plate frame is made of 5 mm thick 65 manganese steel plate, the blade is not easy to deform, and the die cutting is more stable.


1300mm Feeder Carton Box Die Cutting Machine 21KW 2

Paper receving unit


The paper delivery adopts the three-sided paper-aligning device, and the paper-receiving brush makes the paper-receiving more neat and convenient to clear the waste paper. The paper-receiving table and the side-aligning device can be adjusted easily, apply for different sizes paper.


Main Electrical device


No Name Brand
1 Frequency converter BOSCH
2 Geared motor CPG /ZD
3 Power Supply MIWE
4 Oil pump motor Baoteng
5 filter Baoteng
6 clutch Shanghai Yuyi
7 power switch button IDEC
8 Rotary joint Shanghai Yuyi
9 Automatic control FUJI
10 bearing SKF/NSK
12 Contactor IDEC
13 Main Motor Siemens
14 Air pump BECKER
15 Feeder servo Fuji
16 HMI Pingtong
17 Intermittent Taiwan
18 Tooth row chain IWIS
Finished Products
1300mm Feeder Carton Box Die Cutting Machine 21KW 3
Machine details


1300mm Feeder Carton Box Die Cutting Machine 21KW 4
