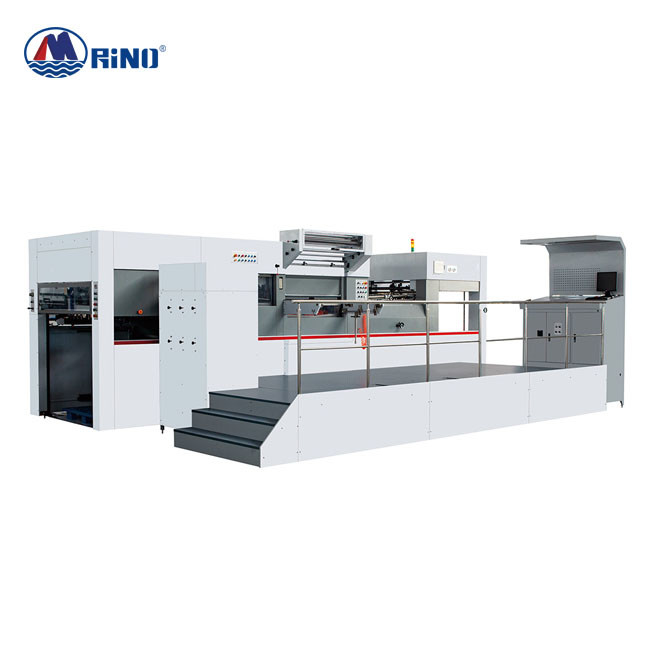

1060mm Hot Stamping And Die Cutting Machine Fully Automatic

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HH-S1060
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 1060mm Fully Automatic Hot Stamping And Die Cutting Machine Maximum Cardboard Size: 1060×760 Mm
Minimum Cardboard Size: 390×290 Mm Maximum Speed: 7500 Sheets/h
Total Weight: 20.5 T Total Power: 46 KW
Vlotage: 220V/380V Max Die Cutting Size: 1055×750 Mm
High Light:

7500 Sheets/H Carton Die Cutting Machine

,

Fully Automatic Carton Die Cutting Machine

,

1060mm Carton Box Die Cutting Machine

Product Description

1060mm Fully Automatic Hot Stamping And Die Cutting Machine

Carton Box Die Cutting Machine Introduction

The automatic flat-bed die-cutting and hot stamping machine is a new generation of automatic flat-bed die-cutting and hot stamping machine developed by our company after years of design and innovation. Die-cutting, bronzing, creasing and cold pressing of paper cartons, cartons, and trademarks in the industry, especially various high-level and fine prints, such as cigarette boxes, wine boxes, gift boxes, small household appliances boxes, cosmetic boxes, etc. Both can be used for ordinary bronzing and embossing on this machine to obtain three-dimensional, exquisite and beautiful printed products. This machine realizes automation from paper feeding, die cutting, hot stamping, and paper delivery. It can realize the functions of automatic detection, fault display, and non-stop sampling. It also has the advantages of high die-cutting pressure and high registration accuracy. The main drive system of the machine is equipped with a pneumatic clutch and a braking device; a torque limiter (safety clutch) is installed on the main sprocket shaft; and multiple safety detection electric eyes and safety devices, etc.; can avoid the operation due to emergencies to the greatest extent The injury and equipment damage caused by the operator shall fully protect the safety of persons and equipment.


Parameter of Die Cutting Machine


Maximum paper size 1060×760 mm Anodized aluminum foil feeding servo system

Vertical 3
Horizontal 2

Minimum paper size 390×290 mm Maximum diameter of anodized aluminum foil

Verticalφ250 mm
Horizontalφ200 mm

Maximum die cutting size 1055×750 mm Temperature control area 20 independent areas
Maximum hot stamping size 1050×745 mm Maximum speed 7500 sheet/h
Paper 0.1~2.0 mm Grip mouth blank size 8~17 mm
Corrugated board ≤4 mm Maximum working pressure 300 T
Speed 7000sheet/h Power 46 KW
Precision ≤±0.075 mm Weight 20.5 T
Dimension 7570×4650×2530 mm


Main Units


1060mm Hot Stamping And Die Cutting Machine Fully Automatic 0

Feeder feeding unit

1.Overweight feeder paper feeding mechanism
2.The size of the processed paper can be input to the man-machine interface. After the system is calculated, the operator can automatically adjust the front and rear positions of the feeder head through the man-machine interface.
3.Fish scale paper feeder, maximum speed 125 sheets/min
4.Independent pre-coded paper mechanism, the work paper stack can be maintained at any time when stacking paper


1060mm Hot Stamping And Die Cutting Machine Fully Automatic 1

Die cutting unit

1.Servo-controlled pressure regulating device adopts a gapless ball screw to make pressure regulating accurate and reliable
2.40Cr crankshaft
3.Worm 20Cr is ground after carburizing and quenching
4.The left and right wall panels, upper and lower platforms and bottom platforms of QT60 resin sand craft ductile iron
5.Die cutting bottom plate and knife template rotating device
6.The lubricating oil air-conditioning forced cooling lubrication system in the main transmission box






Finished Products

 1060mm Hot Stamping And Die Cutting Machine Fully Automatic 21060mm Hot Stamping And Die Cutting Machine Fully Automatic 3
Machine details



1060mm Hot Stamping And Die Cutting Machine Fully Automatic 4
