Rino Packaging Machinery Co., Ltd

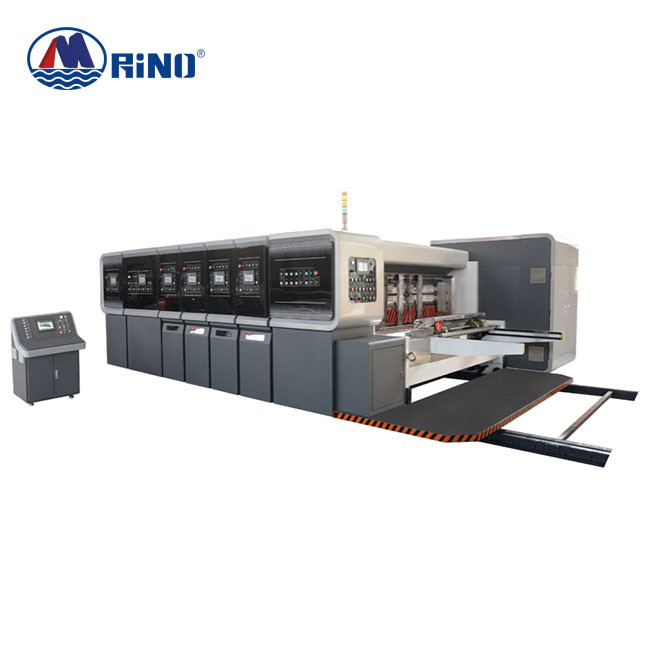

Automatic Carton Box Four Color Flexo Printing Machine With Slotter

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LM1224
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Automatic Carton Box Four Color Flexo Printing Machine With Slotter Grade: Automatic Speed: 300 Sheets/min Max. Paper Coverage Area: 1250×2400mm
Effective Print Area: 1200×2400mm Tinted Precision: ±0.5mm
Flexo Printing Plate Thickness: 7.2mm Wallboard Thickness: 60mm
High Light:

Slotter 4 Color Flexo Printing Machine


Slotter Four Color Flexo Printing Machine


Automatic 4 Color Carton Flexo Printing Machine

Product Description

Automatic Carton Box Four Color Flexo Printing Machine With Slotter


Box Flexo Printing Machine Introduction



1. Wind absorbing auxiliary paperboard feeding, can make the cardboard feed favoringly,The volume of the wind can be adjusted accord the camber of the paperboard.

2. Electric and PLC control the side baffles move left and right.electric control the behind baffles move back and front.The distance between the frontal baffles and the feed table is synchronous manual adjust.

3. Four shaft feeding wheels make feeding most high precision.

4. With colorful touch screen show the produce quantity and can be input the production plan and also show the produce sheets number. Once the plan is finished, the counter system stops the feeding part and warns.999 order can store in the touch screen.

5. With pusher in the feeding unit.make feeding sheet more tidily.

6. The “Automatic zero-returning” and “printing plate cleaned memory” function can make the machine adjust the printing plate to the right printing location quickly.(The “Automatic zero-returning” function is for clear the print plate,when you use this function,the printing roller will automatic run to the best location which for wash the print plate, after finish washing, “printing plate cleaned memory” can make the print roller automatic return to the location before wash the printing plate,it will save time for adjust the print block again after clear printing plate)


Parameter of Carton Flexo Printing Machine machine speed: 300 sheets/min.

Max. paper coverage area:1250×2400mm

Min. paper coverage area:380(full block print)×650mm.

Effective print area:1200×2400mm.

Printing precision: ≤±0.5mm.

Slotting and die-cutting precision: ≤±1mm.

The standard thickness of the printing plate:7.2mm.

Skip feeding size is 1450×2400mm.

Max. slotting depth:320mm

Min. slot distance:235×65×235×65mm

Body thickness:60mm


Main units

Automatic Carton Box Four Color Flexo Printing Machine With Slotter 0

Paper feeding unit


Each unit is electric moving left and right with warning bell. When unit moving, the bell will be warning to make sure the operator safe. The moving motor with constant torsional moment which can buffer the impact of the two units when the operation is wrong.


Automatic Carton Box Four Color Flexo Printing Machine With Slotter 1

Slotting unit


Creasing wheel roller and slotting shaft material is solid roller,43CrMo material after heating treatment.

The surface of the creasing wheel roller is grinded, polished and hard chromium plating. And after balance corrective.

With three layers sets creasing wheels,one set pre creasing small diameter creasing wheels,one set big diameter creasing wheels,one set small diameter creasing wheels. the creasing quality.make the carton after fold more normative.



1.Bearing HRB & NSK
2.Lead edge feeding wheels Maxdura, Taiwan
3.Contactor Siemens
4.PLC Siemens
5.Encoder ELCO,Switzerland
6.Touch screen Siemens
7.Key-free connect rings Chaoyue, Xianyang
8-1.Servo motor(for drive anvill roller) CT,UK
8-2.servo motor for phase adjust Siemens
9.double direction pneumatic diaphragm pump ChangJiang,China
10.Inverter Siemens
11.Pneumatic electromagnetic valve Airtac, Taiwan
12.Anilox roller Haili, China
13.Rubber roller Jingyang,taiwan
14.Main motor MengNiu,China
15.Blower Shangwei,Beijing,China
16.Rubber anvil Ruticut,Span
17.Gears 20CrMnTi (YuXi,China)
18.Supporting walls Carbon steel(thickness 60mm)
19.adjust motor ZHENGMING Taiwan






1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
