1060×760mm Carton Box Die Cutting Machine Feeding With Stripping

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HD-F1060
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 1060×760mm Carton Box Die Cutting Machine Feeder Feeding With Stripping Maximum Cardboard Size: 1060×760mm
Minimum Cardboard Size: 400×370mm Maximum Speed: 7000 Sheets/h
Total Weight: 14500kg Total Power: 18KW
Vlotage: 220V/380V Max Die Cutting Size: 1060×760mm
High Light:

Feeding Carton Box Die Cutting Machine

,

Carton Box Die Cutting Machine 1060×760mm

,

300T Carton Box Die Cutting Machine

Product Description

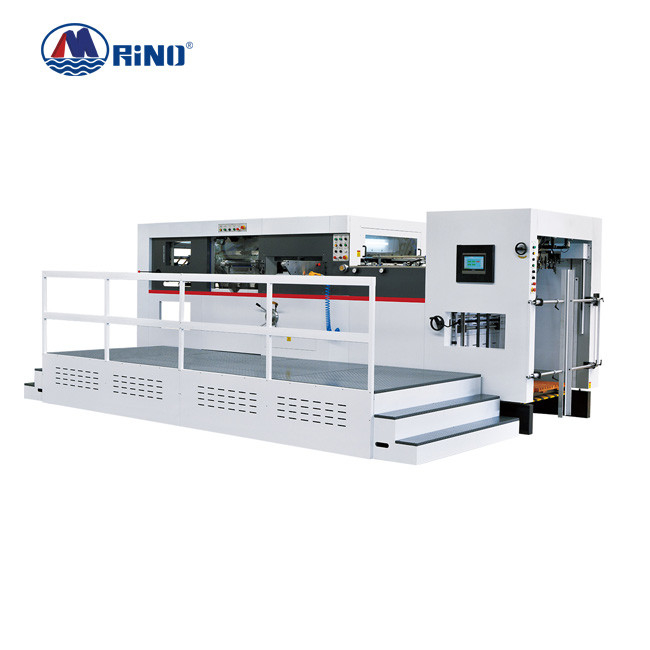

1060×760mm Carton Box Die Cutting Machine Feeder Feeding With Stripping



Carton Box Die Cutting Machine Introduction



1. The Germany Becker air pump has large air volume, low noise, long use time and easy maintenance.

2. 4 suction 5 delivery feeder head can make 3mm cardboard BE corrugated paper, PVC film stickers.

3. The paper-feeding lifting chain is equipped with a chain guide plate to run smoothly without jumping or disjointing.

4. The main wall panel is 70MM steel plate cutting, double-sided processing to 65MM, and the operating surface is reinforced.

5. In order to ensure that the upper and lower whole and the processing height are consistent with the wallboard, the strength of the wallboard.

6. The overall height of the bottom support, increase the height of the paper delivery, using the national standard I-beam welding.

7. The main drive system of the machine is equipped with pneumatic clutches, and a torque limiter (safety clutch) is installed on the main sprocket shaft to avoid injury and damage to operators and equipment due to emergencies, so as to ensure personal safety and equipment safety.

8. The machine is equipped with many safety protection devices in the whole machine. Once a person touches or enters the area, the alarm device will automatically alarm and the equipment is in a shutdown state.





Parameter of Die Cutting Machine



Model HD-F1060
Max feeding cardboard size 1060×760mm
Min feeding cardboard size 400×370mm
Max die cutting size 1060×760mm
Max die cutting pressure 300T
Cardboard thickness Die-cutting and embossing flat corrugated paper, suitable for die-cutting, embossing and cold embossing of cartons, paper trademarks, PVC films, cardboard 0.1-2.5mm, corrugated paper ≤ 4mm
Max die cutting speed 7000 sheets/h
Weight 14.5Ton
Total power 18KW
Dimension 6800×3990×2300mm



Main Units



1060×760mm Carton Box Die Cutting Machine Feeding With Stripping 0

Feeder feeding unit



Large-screen human-machine interface, PLC program control input and output points and moving platform monitoring of obstacles, fast and accurate troubleshooting, the operation is very simple.

1060×760mm Carton Box Die Cutting Machine Feeding With Stripping 1

Die cutting unit



Turbine crank drives the elbow-type high-precision die-cutting upper workbench;

Fixed high-precision die-cutting lower workbench;

The main parts of the core unit (crankshaft, worm, worm gear, toggle shaft) are imported high-grade alloy steel;



1060×760mm Carton Box Die Cutting Machine Feeding With Stripping 2

Paper receving unit



Sectional adjustable brush and paper flattening and blowing device to stabilize the finished product in the delivery section. Paper delivery and air blowing device, delivery of paper is smooth and tidy.

The paper-receiving and paper-receiving mechanism can be changed quickly, effectively saving manpower.







Main Electrical device



Name Model Brand
Breaker 3P040 LG
Breaker 3PD16 LG
Breaker 2PD16 LG
Breaker 1PD6 LG
Air switch NSC60E3060N Schneider
PLC programmable controller CP1W-M60DT-D Omron
Expand CP1W-40EDT Omron
Expand CP1W-20EDT Omron
Communication card CP1W-CIF11 Omron
AC contactor LC1D32 Schneider
AC contactor LC1D12 Schneider
AC contactor LC1D09 Schneider
AC contactor LC1D50 Schneider
Switching power supply DR-120-24 MIWE
Transformer 380V-220V 670V TENGEN
Swim suppressor LAD4RCU Schneider
Interlock connector LAD9R1V Schneider

Finished Products
