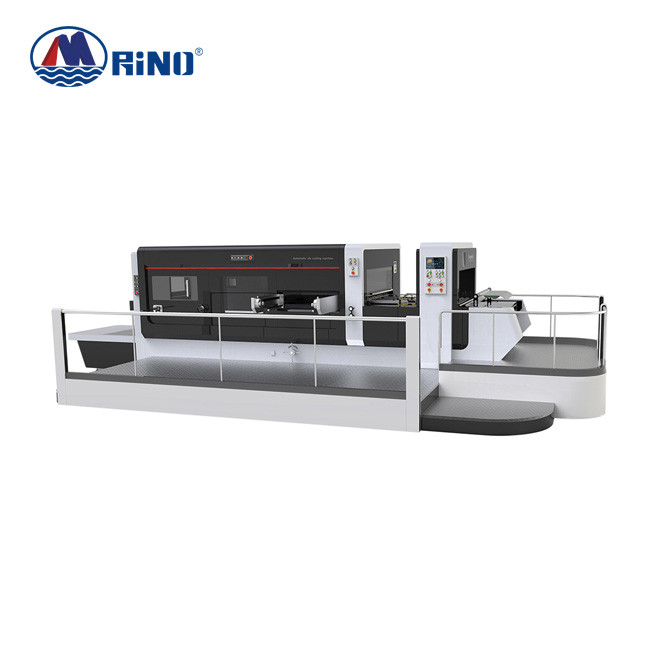

Cartonbox Automatic Die Cutting Machine With Stripping Station

Product Details:
Place of Origin: Shandong,China
Brand Name: RINO
Certification: CE
Model Number: HD-L1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 1500 Full-Automatic Die-Cutting&Creasing With Stripping Station Maximum Paper Size: 1510×1120mm
Minimum Paper Size: 450×550mm Die Cutting Precision: ±0.4mm
Maximum Speed: 4500S/H Total Power: 38KW
Weight: 27T Minimum Front Scrap Size: ≥8mm
High Light:

38KW Carton Box Die Cutting Machine


Cartonbox Automatic Die Cutting Machine


Stripping Station Automatic Die Cutting Machine

Product Description

1500 Full-Automatic Die-Cutting&Creasing With Stripping Station


Carton Box Die Cutting Machine Introduction


The die-cutting machine is a high-end color box die-cutting special equipment developed by our company based on the superior performance of similar products at home and abroad. This machine uses a high-strength paper clamp. The advanced opening clamping mechanism can adapt to various types of cardboard and corrugated paper; the front and rear positioning and lateral positioning mechanisms ensure the accuracy of die-cutting paper. Equipped with high-precision intermittent mechanism; quick-acting pneumatic clutch and pneumatic lock plate. The programmable controller and man-machine interface are used to display the working speed, number of processed sheets, and total running time of the machine; the fault display of the machine makes the troubleshooting operation very convenient. The frequency converter is used to control the main motor, stepless speed regulation, and stable operation. The machine is equipped with sensors and safety devices in many places to ensure the normal operation of the machine and personal safety. Die-cutting pressure can be adjusted individually, manual turning of the mold is convenient and labor-saving, and die-cutting without knife edge.


Carton Box Die Cutting Machine Parameter


paper application E, C, B, AB max. thickness≤9mm
Max. paper size 1510×1120mm
Min. paper size 450×550mm
Paper stack height 500mm
Receiving pile height 400/1100mm
Die cutting size 1480×1100mm
Inner size of board frame 1510×1130mm
Die-cutting steel plate size 1515×1120mm
waste paper edge >12mm
Gripper bite edge >8mm
Die cutting pressure 350T
Max. Speed 4500r/h
Total power 38KW
Voltage 380V
Machine net weight 25T
Gross weight 27T
Machine size 11470×5000×2600mm


Main Units


Cartonbox Automatic Die Cutting Machine With Stripping Station 0

Die cutting department


The die-cutting plate adopts four-claw nut fastening type installation to ensure that the large-format die-cutting plate is always flat, and equipped with a pneumatic plate locking device, which effectively reduces the preparation time for plate change.
The steel plate adopts quenched manganese alloy steel material, which has extremely long life. The steel plate pneumatic suspension device ensure plate can be easily loaded and unloaded.
Electric adjustment of die cutting pressure is more convenient and quick.


Cartonbox Automatic Die Cutting Machine With Stripping Station 1

Automatic Paper Collection department


Receiving paper without stopping to ensure that the whole machine does not stop running.
The output belt can quickly and conveniently transfer the paper pile to ensure that there is no scratches or garland in printing.
Automatic conversion of non-stop counting delivery and whole stack delivery.



Finished Products


Cartonbox Automatic Die Cutting Machine With Stripping Station 2



Our Factory


Cartonbox Automatic Die Cutting Machine With Stripping Station 3

Cartonbox Automatic Die Cutting Machine With Stripping Station 4
