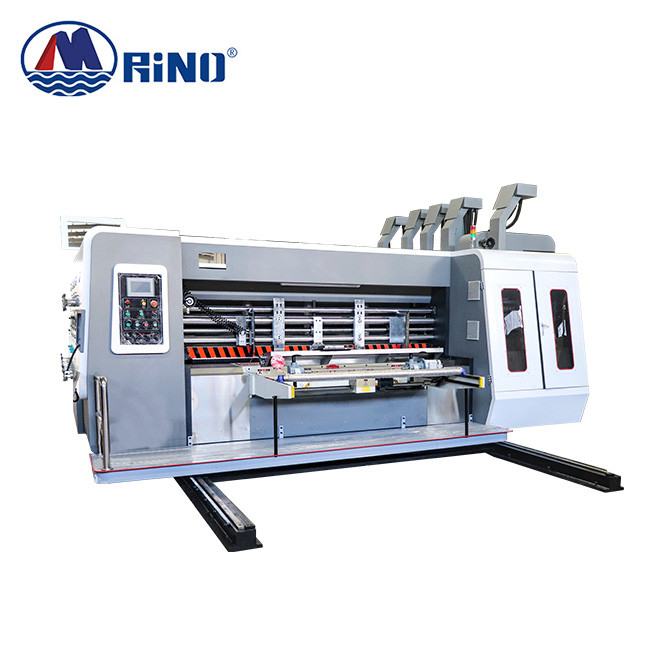

Corrugated Carton Flexo Printing Machine 2 Color With Die Cutter

Maximum paper size

1600×4200mm

Minimum paper size

450×700mm

Skip paper feeding size

1750×4200mm

Maximum printing size

1600×4200mm

Printing repeating dots

1683

Standard printing plate thickness

7.2mm

Cardboard thickness

2-11mm

Maximum speed

100pcs/min

Paper feeding accuracy (paper feeding direction)

±1.0mm

Paper feeding unit

The position of the left and right side baffle, the position button electric and the value setting adjustment, speed up the setting speed, the slide bar mechanism, the displacement is stable and accurate. Maximum and minimum limit position program and limit switch dual protection device. The position value is interpreted by a rotary encoder to ensure the correctness of the signal. Both sides can be adjusted at the same time or separately to make the operation more convenient and quick. A side-shooting device is installed on the drive side. The flapping board is driven by air pressure, and the frequency of platooning can be set.

Printing unit

1. Synchronous lifting device for impression roller and paper feeding wheel, gap button electric and value setting adjustment, gap upper and lower position program protection device, gap value man-machine display.

2. The special ceramic hard paper feeding wheel has a long service life and ensures the accuracy of cardboard conveying.

Die Cutting Unit

1. Die cutting phase, main control computer and unit man-machine control.

2. Pneumatic toothed gap fixing device, electric gap and setting adjustment.

3. The rubber pad roller automatic displacement mechanism extends the service life of the rubber pad. Imported quick-change rubber pads, easy to exchange and wear-resistant. The rubber pad grinding and correcting mechanism increases the usage rate of the rubber pad and reduces consumption.

4. Precise "set-control" speed difference compensation system to ensure die-cutting accuracy and wide compensation range.
