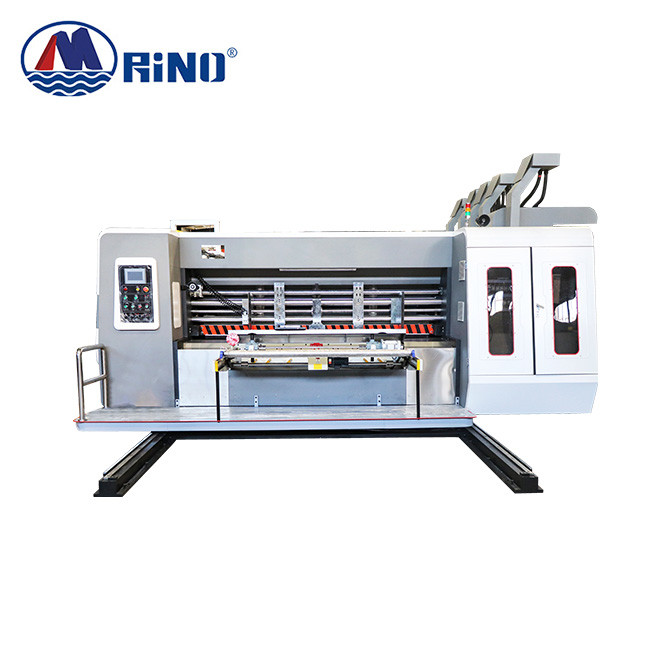

Corrugated Box Cartonbox 2 Color Flexo Printing Machine With Die Cutter

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LD1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 2 Color Corrugated Box Flexo Printer With Die Cutter 15T Grade: Automatic
Maximum Paper Size: 1600×4200mm Minimum Paper Size: 450×700mm
Skip Paper Feeding Size: 1750×4200mm Maximum Printing Size: 1600×4200mm
Maximum Stacking Height: 1800mm Maximum Lifting Weight: 15000kg
High Light:

Cartonbox 2 Color Flexo Printing Machine

,

Two Color Carton Flexo Printing Machine

,

Automatic 2 Color Flexo Printing Machine

Product Description

2 Color Corrugated Box Flexo Printer With Die Cutter 15000kgs



Box Flexo Printing Machine Introduction



Automatic oil spray and automatic oil balance device, which keeps the oil level of each unit at the same level, and also guarantees the service life of the gear. All electrical, electronic and pneumatic components comply with European CE safety standards. The latter process can also be combined with a central paper dust collection system, printing box glue line or waste removal stacker to work together.



Parameter of Carton Flexo Printing Machine



Model HP-LD1600

Maximum paper size

1600×4200mm

Minimum paper size

450×700mm

Skip paper feeding size

1750×4200mm

Maximum printing size

1600×4200mm

Printing repeating dots

1683

Standard printing plate thickness

7.2mm

Cardboard thickness

2-11mm

Number of stacking columns

1

Maximum lifting weight

15T



Main units



Corrugated Box Cartonbox 2 Color Flexo Printing Machine With Die Cutter 0

Paper feeding unit



The large cardboard supports the roller shaft by hanging down. The feed roller gap button is electrically and numerically adjusted. Program protection for the upper and lower limit positions of the gap. The surface of the paper feed roller is covered with a composite rubber material (double-layered, soft inside and hard outside) and cut grooves to avoid pressure damage to the cardboard. The paper feed rubber roller is specially designed as a quick exchange mechanism, which is easy to maintain. The lower paper feed wheel is made of steel, and the surface is embossed and polished and chrome-plated. The paper feed wheel and the transmission gear are not connected with the key collar.





Corrugated Box Cartonbox 2 Color Flexo Printing Machine With Die Cutter 1

Printing unit



1. After the printing phase is set, the inverter will automatically adjust the speed, which has both accurate positioning and time saving. Horizontal phase, computer and electronic digital control, control range ±5mm. The printing roller and the transmission gear are not connected with the key collar. Manual twisting plate axis, full plate hanging groove. The foot switch selects forward and reverse rotation.
2. The gap adjustment of the impression roller, rubber roller and anilox roller adopts a self-locking structure. After cleaning the printing plate, the system will be reset automatically, the position of each printing plate will be memorized automatically when the machine stops, and the machine base will be merged and returned to the original printing position. Each printing unit is equipped with a zero reset button.



Corrugated Box Cartonbox 2 Color Flexo Printing Machine With Die Cutter 2

Die Cutting Unit



The rubber pad roller automatic displacement mechanism extends the service life of the rubber pad. Imported quick-change rubber pads, easy to exchange and wear-resistant. The rubber pad grinding and correcting mechanism increases the usage rate of the rubber pad and reduces consumption.





Packaging&shipping

Corrugated Box Cartonbox 2 Color Flexo Printing Machine With Die Cutter 3

FAQ

1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
