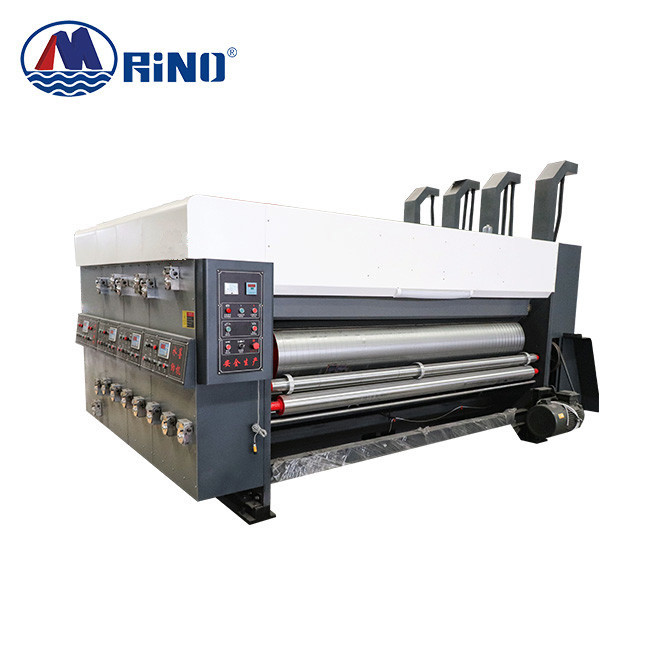

Die Cutter Corrugated Board Printing Machine Two Color

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LD1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 2 Color Corrugated Box Flexo Printer With Die Cutter Corrugated Board Grade: Automatic
Maximum Paper Size: 1600×4200mm Minimum Paper Size: 450×700mm
Skip Paper Feeding Size: 1750×4200mm Maximum Printing Size: 1600×4200mm
Maximum Stacking Height: 1800mm Number Of Stacking Columns Of Stacking: 1
High Light:

2 Color Corrugated Board Printing Machine


Die Cutter Corrugated Board Printing Machine


Automatic Corrugated Box Flexo Printer

Product Description

2 Color Corrugated Box Flexo Printer With Die Cutter Corrugated Board


Box Flexo Printing Machine Introduction


The slotting department adopts PLC programming to control the operation of each part, store and memorize orders, and control each part automatically in place with one button, and enter the "length, width and height" of the new order to form with one button. The die-cutting department adopts the most popular plate-free die-cutting device and speed difference compensation system. The rubber pad moves vertically and horizontally to increase the service life of the rubber pad. The gear of the whole machine is ground with special alloy steel, and the keyless coupling ring is used to ensure the transmission accuracy.


Parameter of Carton Flexo Printing Machine


Model HP-LD1600

Maximum paper size


Minimum paper size


Skip paper feeding size


Maximum printing size


Printing repeating dots


Standard printing plate thickness


Cardboard thickness


Maximum speed


Paper feeding accuracy (paper feeding direction)


Tinted accuracy of each set of printing


Maximum lifting weight



Main units


Die Cutter Corrugated Board Printing Machine Two Color 0

Paper feeding unit


1. The leading edge paper feeding increases the suction flow; the paper feeding is more stable and accurate. Frequency conversion controls the wind box vacuum air flow and pressure to match the cardboard size, dust-proof control box.

2. "Delta" series PLC, high-speed operation module and connection communication interface.

3. The main panel on the operating side uses a 10.4-inch color touch-sensitive unit to operate the man-machine interface.

4. The front and side operation panels of the paper feed unit (stainless steel).


Die Cutter Corrugated Board Printing Machine Two Color 1

Printing unit


1. With the width of the cardboard, the pneumatic gate can be opened and closed electrically to adjust the adsorption range. The suction power of the suction box can be adjusted according to the requirements of different sizes of cardboard.

2. There is no need to install the paper strip-mounted printing plate without the printing unit of the suction conveying device, reducing the time of plate-loading operation.

3. The memory returns to the original printing position function, and the cleaning plate rotates the printing roller to automatically record the relative position of each color before stopping.


Die Cutter Corrugated Board Printing Machine Two Color 2

Die Cutting Unit


There are three operation modes of phase adjustment and registration, numerical setting, button quantitative or inching continuous. After the phase is set, the frequency converter will automatically adjust the speed, which has both accurate positioning and time saving.




Die Cutter Corrugated Board Printing Machine Two Color 3


1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
