Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LD1600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 2 Color Corrugated Box Flexo Printer With Die Cutter 15T | Grade: | Automatic |
|---|---|---|---|
| Maximum Paper Size: | 1600×4200mm | Minimum Paper Size: | 450×700mm |
| Skip Paper Feeding Size: | 1750×4200mm | Maximum Printing Size: | 1600×4200mm |
| Minimum Slotting Interval (positive Knife): | 185*185*185*185mm | Minimum Slotting Interval (negative Knife): | 270*100*270*100mm |
| Maximum Bonding Edge Width: | 45mm | ||
| High Light: | Two Color Corrugated Box Flexo Printer,100pcs/Min Corrugated Box Flexo Printer,Die Cutter Corrugated Box Printing Machine |
||
Product Description

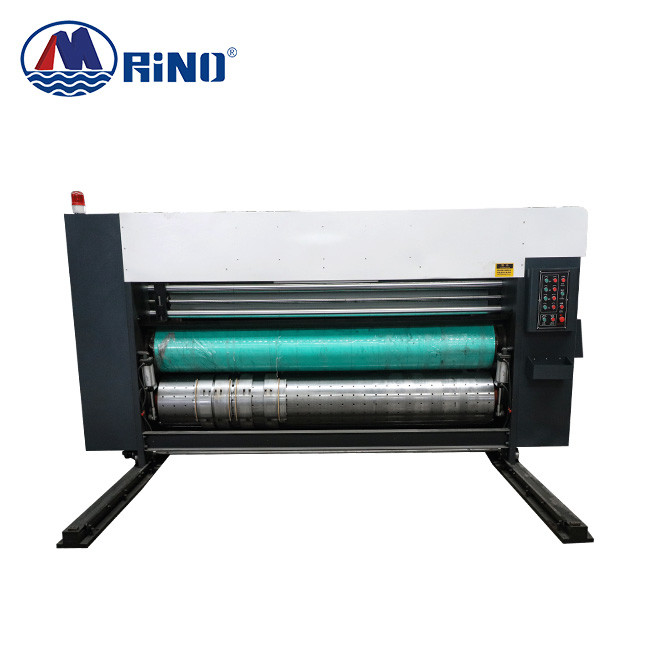

2 Color Corrugated Box Flexo Printer With Die Cutter Maximum Speed 100pcs/Min
Box Flexo Printing Machine Introduction
The slotting department adopts PLC programming to control the operation of each part, store and memorize orders, and control each part automatically in place with one button, and enter the "length, width and height" of the new order to form with one button. The die-cutting department adopts the most popular plate-free die-cutting device and speed difference compensation system.
Parameter of Carton Flexo Printing Machine
| Model | HP-LD1600 |
|
Maximum paper size |
1600×4200mm |
|
Minimum paper size |
450×700mm |
|
Skip paper feeding size |
1750×4200mm |
|
Maximum printing size |
1600×4200mm |
|
Printing repeating dots |
1683 |
|
Standard printing plate thickness |
7.2mm |
|
Cardboard thickness |
2-11mm |
|
Maximum speed |
100pcs/min |
|
Minimum slotting interval (negative knife) |
270*100*270*100mm |
|
Minimum slotting interval (positive knife) |
185*185*185*185mm |
|
Maximum bonding edge width |
45mm |
Main units
|
|
Paper feeding unit
1. In addition to static electricity device, brush and synchronous lifting type dust suction device, dust removal is more perfect. 2. Single-row paper feed roller mode, quick-change mechanism for paper feed rollers. 3. The main control computer and unit man-machine control system. 4. Optional-adsorption transmission box, improve compression resistance, widened dust removal system, better effect. 5. Shandong Komori servo leading edge paper feeding system (four-axis).
|
|
|
Printing unit
1. Dust-proof control box. 2. "Delta" series PLC, high-speed operation module and connection communication interface. 7-inch monochrome touch-sensitive unit operation man-machine interface, DC24V button and selector switch, frequency converter to adjust the air volume of cardboard transmission, unit sub-power non-fuse switch, motor start/stop and overload protection, control circuit protection switch. 3. Synchronous lifting device for impression roller and paper feeding wheel, gap button electric and value setting adjustment, gap upper and lower position program protection device, gap value man-machine display. 4. The special ceramic hard paper feeding wheel has a long service life and ensures the accuracy of cardboard conveying.
|
|
|
Die Cutting Unit
1. Dust-proof control box. "Delta" series PLC, high-speed operation module and connection communication interface.The unit sub-power supply has no fuse switch. Motor start/stop and overload protection. Control circuit protection switch. The die-cutting unit is equipped with a zero reset button. The side and inner side moving knife operation panel of the die-cutting unit.
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
