Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LD1600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 2 Color Corrugated Box Flexo Printer With Die Cutter 15T | Grade: | Automatic |
|---|---|---|---|
| Maximum Paper Size: | 1600×4200mm | Minimum Paper Size: | 450×700mm |
| Skip Paper Feeding Size: | 1750×4200mm | Maximum Printing Size: | 1600×4200mm |
| Printing Repeating Dots: | 1683 | Standard Printing Plate Thickness: | 7.2mm |
| Weight: | 15T | ||
| High Light: | 2 Color Corrugated Box Flexo Printer,Corrugated Box Flexo Printing Machine,2 Color Corrugated Box Printing Machine |
||
Product Description

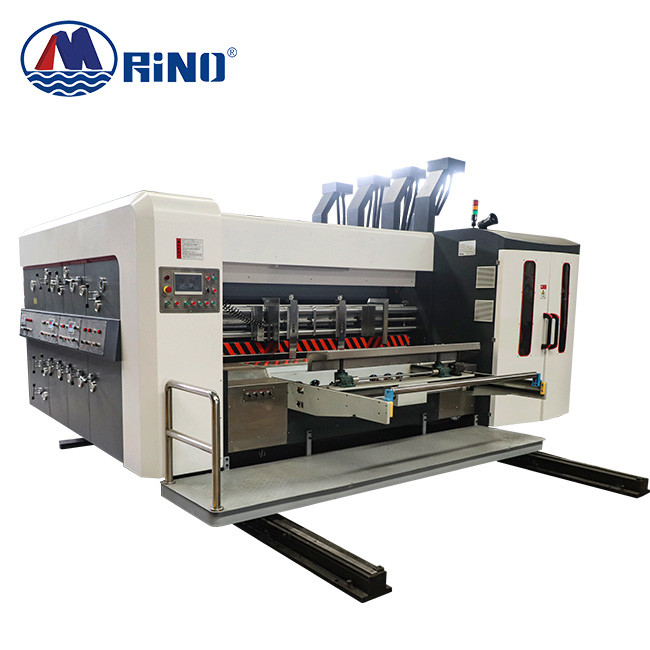

2 Color Corrugated Box Flexo Printer With Die Cutter 15T
Box Flexo Printing Machine Introduction
This product is in strict accordance with mechanical standards, precise calculations, and heavy-duty as the design concept, which is economical and practical, and saves manpower. Its characteristics: classic design concept, mobile combined unit for each unit, saving space.
Parameter of Carton Flexo Printing Machine
| Model | HP-LD1600 |
|
Maximum paper size |
1600×4200mm |
|
Minimum paper size |
450×700mm |
|
Skip paper feeding size |
1750×4200mm |
|
Maximum printing size |
1600×4200mm |
|
Printing repeating dots |
1683 |
|
Standard printing plate thickness |
7.2mm |
|
Cardboard thickness |
2-11mm |
|
Maximum speed |
100pcs/min |
|
Paper feeding accuracy (paper feeding direction) |
±1.0mm |
|
Tinted accuracy of each set of printing |
±0.5mm |
|
Slotting accuracy (feeding direction) |
±1.5mm |
Main units
|
|
Paper feeding unit
1. Leading edge paper feeding system, frequency conversion control air volume, accurate and stable paper feeding. 2. Side baffle and front baffle linear guide rail traverse system, side-shooting and paper-aligning function. 3. The rear bracket is electrically controlled front and rear, and the bracket angle can be easily adjusted.
|
|
|
Printing unit
1. Printing phase, main control computer and unit man-machine control. 2. Adsorption wheel box conveying, regulating air volume and air section to ensure smooth conveying. 3. Ceramic wheel surface transmission wheel, centralized oil injection lubrication device, to ensure accuracy and life. 4. Reel lock plate, locking device on the left and right sides, fast plate hanging drive. 5. The phase adopts an electromagnetic clutch fixing device, which automatically detects and resets. To 6. Set up a controlled circulating ink supply system, ink supply protection, ink shortage alarm, ink saving settings, and quick cleaning. Optional: Double squeegee wiping system-better printing effect.
|
|
|
Die Cutting Unit
1. Die cutting phase, main control computer and unit man-machine control. 2. Pneumatic toothed gap fixing device, electric gap and setting adjustment. 3. The rubber pad roller automatic displacement mechanism extends the service life of the rubber pad. Imported quick-change rubber pads, easy to exchange and wear-resistant. The rubber pad grinding and correcting mechanism increases the usage rate of the rubber pad and reduces consumption. 4. Precise "set-control" speed difference compensation system to ensure die-cutting accuracy and wide compensation range.
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
