Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LM1200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 150Pcs/Min Three Color Carton Box Flexo Printing Machine With Die Cutter For Corrugated Board | Grade: | Automatic |
|---|---|---|---|
| Wallboard Thickness: | 60mm | Gear Thickness: | 60mm |
| Die Cutting Accuracy: | ±1.5mm | Tinted Accuracy: | ±0.5mm |
| Maximum Paper Size: | 1200 X 2800mm | Working Speed: | 150Pcs/Min |
| Weight: | 15TON | ||
| High Light: | 150Pcs/Min Carton Box Flexo Printer,Corrugated Board Flexo Printer,Carton Box Flexo Printer Three Color |
||
Product Description

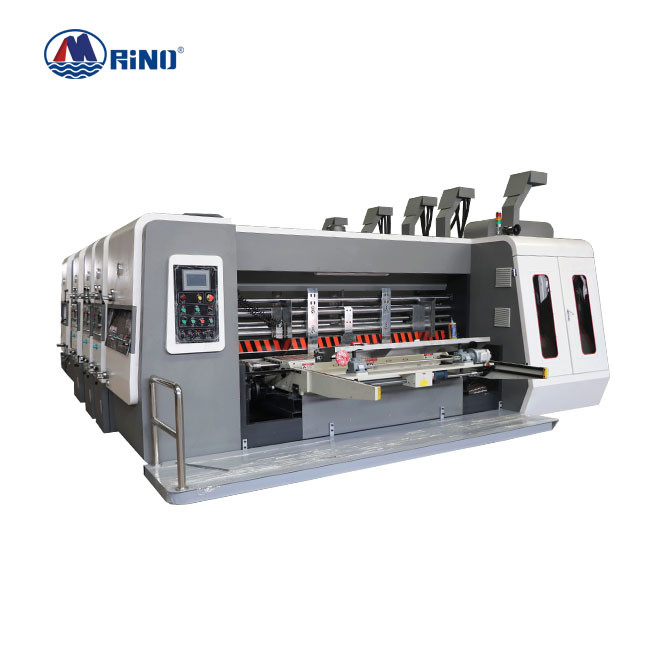

150Pcs/Min Three Color Carton Box Flexo Printing Machine With Die Cutter For Corrugated Board
Box Flexo Printing Machine Introduction
Each part is electrically separated and combined, pneumatic locking, pneumatic lifting, automatic ink distribution, and ink shortage alarm system to ensure the normal operation of the whole machine, fine printing patterns and accurate color registration. All drive shafts of the whole machine are treated with dynamic and static balance, and the gears are special processed , all are carburized and grounded.
Parameter of Carton Flexo Printing Machine
| Model | HP-LM1200 |
| Width | 3000mm |
| Maximum speed(pcs/min) | 180 |
| Wallboard thickness(mm) | 60 |
| Gear thickness(mm) | 60 |
| Maximum paper size(mm) | 1200 X 2600 |
| Minimum paper size(mm) | 350 X 650 |
| Maximum printing size(mm) | 1200X2400 |
| Standard printing plate thickness(mm) | 3.2---7.2 |
| Cardboard thickness(mm) | 3---12 |
| Precision(mm) | Tinted accuracy ±0.5,die cutting accuracy ±1.5 |
| Power (kw) | 26 |
Main units
|
|
Paper feeding unit
Combination of the machine group: the electric control is separated and closed with an alarm bell, the separating and closing ring to alarm, one-key positioning separating and closing, and the drive shaft is equipped with a friction clutch to ensure the safety of operators and avoid damage to the machine due to improper operation. Pneumatic interlocking device, lock firmly, convenient and accurate. The split drive shaft of the unit is equipped with an overload protection device to prevent damage to other parts, ensuring that the gear bite position remains unchanged, and normal production after separation and close, avoiding the occurrence of paperboard waste due to printing misalignment.
|
|
|
Printing unit
The ink pump is a one-way diaphragm air-pressure pump, which can recover the accumulated water in the pump and the pipe with a filter and an ink circulation system. (Note: When the doctor blade ink control system is optional, it is equipped with a double-acting diaphragm pump.) Automatic sensor detection ink volume system, ink abnormal alarm, including warnings and alarm bells.
|
|
|
Die Cutting Unit
The die-cutting phase adopts electric digital 360° adjustment, and the equipment can be adjusted during operation and stop.
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
