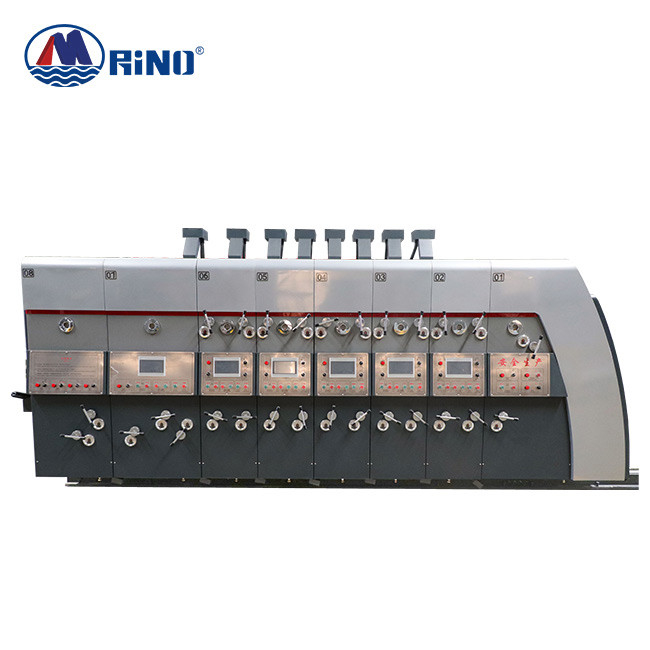

50Hz Automatic Four Color Flexo Printing Machine For Cartonbox

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LM1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 50Hz Automatic Four Color Flexo Printing Machine With Slotter And Die Cutter And Stacker Grade: Automatic
Maximum Paper Size: 1600×4200mm Minimum Paper Size: 450×700mm
Printing Repeating Dots: 1683 Standard Printing Plate Thickness: 7.2mm
Minimum Slotting Interval (positive Knife): 185*185*185*185mm Minimum Slotting Interval (negative Knife): 270*100*270*100mm
High Light:

50Hz Four Color Carton Flexo Printing Machine


Cartonbox Four Color Flexo Printing Machine


Cartonbox 4 Color Flexo Printing Machine

Product Description

50Hz Automatic Four Color Flexo Printing Machine With Slotter And Die Cutter And Stacker
Carton Box Flexo Printing Machine Introduction


The slotting department adopts PLC programming to control the operation of each part, store and memorize orders, and control each part automatically in place with one button, and enter the "length, width and height" of the new order to form with one button. The die-cutting department adopts the most popular plate-free die-cutting device and speed difference compensation system. The rubber pad moves vertically and horizontally to increase the service life of the rubber pad. The gear of the whole machine is ground with special alloy steel, and the keyless coupling ring is used to ensure the transmission accuracy. Automatic oil spray and automatic oil balance device, which keeps the oil level of each unit at the same level, and also guarantees the service life of the gear. All electrical, electronic and pneumatic components comply with European CE safety standards. The latter process can also be combined with a central paper dust collection system, printing box glue line or waste removal stacker to work together.


Parameter of Carton Flexo Printing Machine


Maximum paper size



Minimum paper size



Skip paper feeding size



Maximum printing size



Standard printing plate thickness



Cardboard thickness



Maximum speed



Paper feeding accuracy (paper feeding direction)



Tinted accuracy of each set of printing



Minimum slotting interval (positive knife)



Minimum slotting interval (negative knife)




Main units

50Hz Automatic Four Color Flexo Printing Machine For Cartonbox 0

Paper feeding unit


1. In addition to static electricity device, brush and synchronous lifting type dust suction device, dust removal is more perfect.

2. Single-row paper feed roller mode, quick-change mechanism for paper feed rollers.

3. The main control computer and unit man-machine control system.

4. Optional-adsorption transmission box, improve compression resistance, widened dust removal system, better effect.

5. Shandong Komori servo leading edge paper feeding system (four-axis).

6. The front edge of the servo is equipped with a German (Rexroth) power and drive system.


50Hz Automatic Four Color Flexo Printing Machine For Cartonbox 1

Printing unit

1. Set up a controlled circulating ink supply system, ink supply protection, ink shortage alarm, ink saving settings, and quick cleaning.

Optional: Double squeegee wiping system-better printing effect.

2. Dust-proof control box.

3. "Delta" series PLC, high-speed operation module and connection communication interface. 7-inch monochrome touch-sensitive unit operation man-machine interface, DC24V button and selector switch, frequency converter to adjust the air volume of cardboard transmission, unit sub-power non-fuse switch, motor start/stop and overload protection, control circuit protection switch.

4. Synchronous lifting device for impression roller and paper feeding wheel, gap button electric and value setting adjustment, gap upper and lower position program protection device, gap value man-machine display.

5. The special ceramic hard paper feeding wheel has a long service life and ensures the accuracy of cardboard conveying.




50Hz Automatic Four Color Flexo Printing Machine For Cartonbox 2


50Hz Automatic Four Color Flexo Printing Machine For Cartonbox 3
