Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LD1728 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 15000KG 2 Color Carton Box Flexo Printer Machine With Die Cutter For Corrugated Board | Grade: | Automatic |
|---|---|---|---|
| Wallboard Thickness: | 50mm | Gear Thickness: | 50mm |
| Die Cutting Precision: | ±1.5mm | Tinted Precision: | ±0.5mm |
| Maximum Paper Size: | 1728 X 2800mm | Working Speed: | 120Pcs/Min |
| Weight: | 15TON | ||
| High Light: | Corrugated Board Flexo Printing Machine,Double Color Carton Box Flexo Printer,120Pcs/Min Carton Box Flexo Printing Machine |
||
Product Description

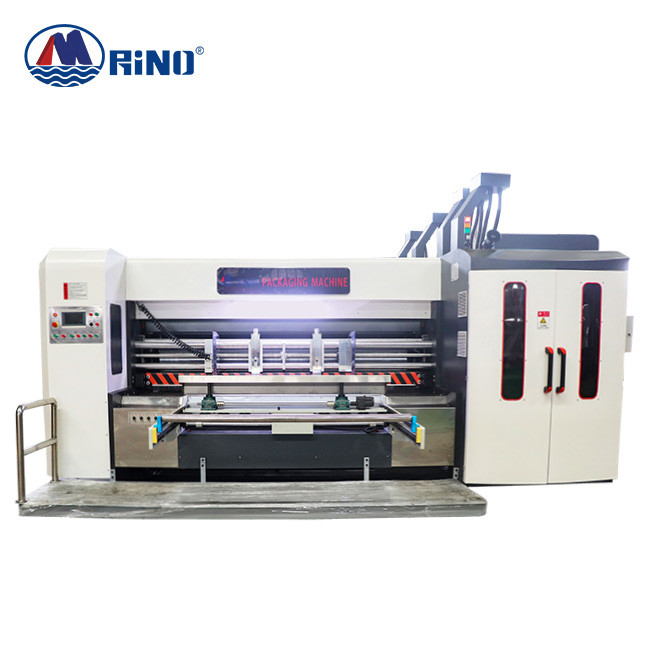

15000KG 2 Color Carton Box Flexo Printer Machine With Die Cutter For Corrugated Board
Box Flexo Printing Machine Introduction
The printing accuracy of this machine can be adjusted from the paper feeding , operation and paper receiving direction. The front of the main machine is equipped with paper output monitoring equipment, and the situation of the paper output department is observed at any time when starting and stopping machine to ensure the safety of the operator who start and adjust the machine.
Parameter of Carton Flexo Printing Machine
| Model | HP-LD1728 |
| Width | 3000mm |
| Maximum speed(pcs/min) | 180 |
| Wallboard thickness(mm) | 50 |
| Gear thickness(mm) | 50 |
| Maximum paper size(mm) | 1728 X 2800 |
| Minimum paper size(mm) | 400 X 650 |
| Maximum printing size(mm) | 1728X2600 |
| Standard printing plate thickness(mm) | 3.2---7.2 |
| Cardboard thickness(mm) | 3---12 |
| Precision(mm) | Tinted accuracy ±0.5,die cutting accuracy ±1.5 |
| Power (kw) | 26 |
Main units
|
|
Paper feeding unit
With the leading edge of the cardboard as the positioning reference, the influence of the length of the cardboard is greatly reduced. When the cardboard is sent to the pulling wheel, the speed is the same as that pulling wheel, and the transfer accuracy will not be affected by the speed difference.
|
|
|
Printing unit
The touch adjustment of the anilox roller and the printing roller is a pneumatic pressing , the plate will be automatically lifted when the machine is stopped, and the electric ink distribution will be turned on automatically to prevent the ink from drying up. The automatic inking mode stops/starts with the paper feeding, and the inking time of each printing unit can be set separately. The anilox roller is equipped with a one-way overrunning clutch, which is separated from the main power drive, making it more convenient and quick to distribute ink or wash ink.
|
|
|
Die Cutting Unit
The soft roller automatic repair device can repair the worn felt cover many times. The repaired felt cover is smooth and clean, maintaining the same performance as the new felt cover, and greatly improving the repeated use rate of the felt cover.
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
