Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LD1728 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 2 Color Carton Box Flexo Printing Machine With Die Cutter For Corrugated Board | Grade: | Automatic |
|---|---|---|---|
| Wallboard Thickness: | 50mm | Gear Thickness: | 50mm |
| Die Cutting Precision: | ±1.5mm | Tinted Precision: | ±0.5mm |
| Maximum Paper Size: | 1728 X 2800mm | Design Speed: | 180Pcs/Min |
| Weight: | 15T | ||
| High Light: | Die Cut Corrugated Box Flexo Printer,2 Color Carton Box Flexo Printer,180Pcs/Min Corrugated Box Flexo Printer |
||
Product Description

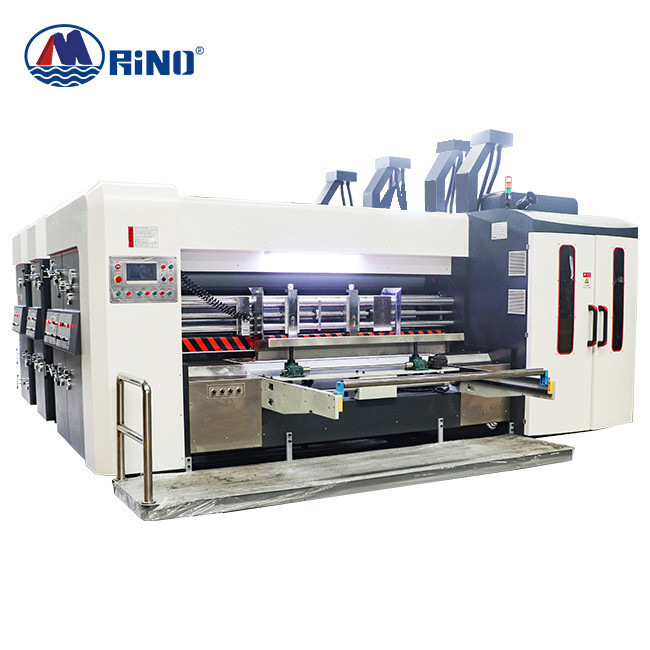

2 Color Carton Box Flexo Printing Machine With Die Cutter For Corrugated Board
Box Flexo Printing Machine Introduction
This equipment can complete the multi-color printing, creasing, grooving, trimming, corner cutting, die cutting, punching and other processes of cardboard at one time. The equipment adopts adsorption paper feeding, the host and fan inverter control the start and stop, the high-power dust removal fan cleans the surface of the cardboard, the main touch screen and the side touch screen use the PLC programming system to control each part, and realize the man-machine interface to control the operation of each part.
Parameter of Carton Flexo Printing Machine
| Model | HP-LD1728 |
| Width | 3000mm |
| Maximum speed(pcs/min) | 180 |
| Wallboard thickness(mm) | 50 |
| Gear thickness(mm) | 50 |
| Maximum paper size(mm) | 1728 X 2800 |
| Minimum paper size(mm) | 400 X 650 |
| Maximum printing size(mm) | 1728X2600 |
| Standard printing plate thickness(mm) | 3.2---7.2 |
| Cardboard thickness(mm) | 3---12 |
| Precision(mm) | Tinted accuracy ±0.5,die cutting accuracy ±1.5 |
| Power (kw) | 26 |
Main units
|
|
Paper feeding unit
The control panel is equipped with a 7-inch human-machine interface color touch screen, which can realize the operation of the paper feeding unit, the printing unit, the slotting unit, and the die-cutting unit. It can control and display the current phase , the speed of the whole machine, the counting and stop to change orders, lifting delay, fixed-speed adjustment of adsorption fan and dust removal fan, slapping time, continuity , interval and other system settings, man-machine dialogue or manual electronic control of each unit dual operating system, fast adjustment speed, safe and easy operation.
|
|
|
Printing unit
The system is equipped with a hanging position. Click the hanging position button, and the equipment will automatically run to a convenient position for hanging the plate, which improves efficiency. The pedal switch is installed for the positive and negative rotation of the plate cylinder, which is convenient for plate changing and cleaning.
|
|
|
Die Cutting Unit
Quick-change rubber pad, wear-resistant and long life. High-quality cast steel material, quenched and tempered, dynamic and static balance, surface fine grinding, increase operation stability.
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
