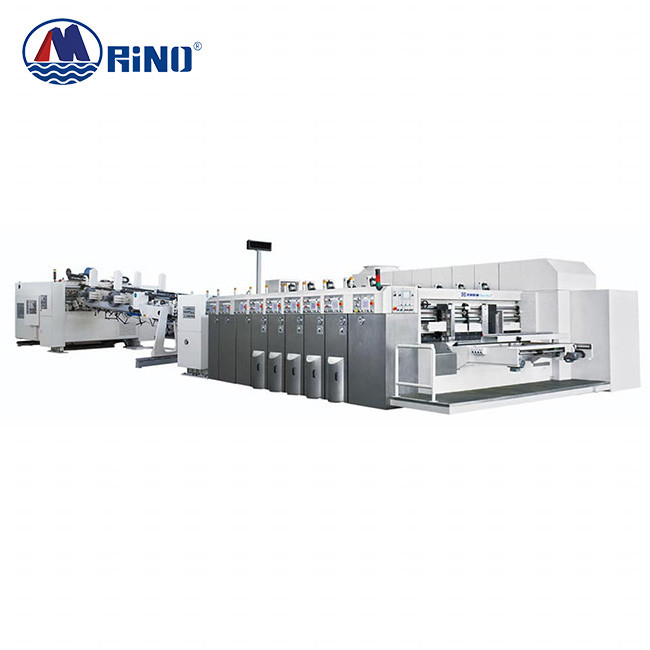

Name: 250Pcs/Min Carton Box Flexo Printing Machine Strapping Linkage Line
Brand: RINO
SKU: HP-LM1400
Rating: 4.6 (123 reviews)

250Pcs/Min Carton Box Flexo Printing Machine Strapping Linkage Line

Product Details:

Place of Origin:

China

Brand Name:

RINO

Certification:

Model Number:

HP-LM1400

Payment & Shipping Terms:

Minimum Order Quantity:

1 Set

Price:

Negotiation

Packaging Details:

Wrapped with film or in wooden case

Delivery Time:

40-60 Working Days After Deposit

Payment Terms:

L/C, T/T

Supply Ability:

10 Set/Month

Detail Information
Product Description

Detail Information
Name:	Carton Box Flexo Printing Machine Slotter Die Cutter Folder Gluer Starpping Linkage Line	Grade:	Automatic Type
Weight:	50T	Voltage:	220V/380V
Slotting Precision:	±1.5mm	Tinted Precision:	±0.5mm
Total Power:	60KW	Maximum Speed:	250Pcs/Min
High Light:	Strap Carton Box Flexo Printing Machine , 60KW Carton Box Flexo Printing Machine , 250Pcs/Min Carton Box Flexo Printing Machine

Product Description

Carton Box Flexo Printing Machine Slotter Die Cutter Folder Gluer Starpping Linkage Line

Carton Box Flexo Printing Machine Introduction

1. Fast cleaning up ink system within 3 minutes.
2. Low residual ink.
3. Fast hanging plate within 15 seconds
4. High productivity for small orders with setup times within 2 minutes.
5. Each unit is individually driven by a servomotor.
6. High folding accuracy that meets every customer’s demands.

Parameter of Carton Flexo Printing Machine

Width	mm	3000
Maximum Paper feeding size	mm	1400×2800
Effective printing size	mm	1400×2600
Minimum Paper feeding size	mm	350×650
Thickness of printing plate	mm	7.2
Design speed	sheets/mi n	250
Economic speed	sheets/mi n	150-180
Main motor	KW	20
Total power	KW	50-60
Weight	T	50
Tinted precision	mm	±0.5
Slotting precision	mm	±1.5

Main units

Paper feeding unit

Feeding performance and reliability is increased dramatically by adopting a lead edge feeder that is capable to handle curled paper and by independently driving each axes (4 axes) by servo motor.
The feeder is designed to decrease noise and vibration when running at high speeds,creating a safer, quieter environment for operators and plant personnel. An added registration compensator greatly increases the accuracy of the feeder.

Printing unit

The use of a chambered doctor blade system, which scrapes excess ink form a ceramic anilox roll, covers ink uniformly regardless of machine speed or sheet size, eliminating uneven or faded colors.
The carrying system with excellent stability enables high-quality, sharp printing with less misalignment.
A fixed unit design respond to stripe printing and solid printing, allowing preparation for next lot in advance while in operation and significantly reducing the time for set change over.

Packaging&shipping

Factory Show
