Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LM1200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 260pcs/Min 3 Color Carton Box Flexo Printing Machine With Die Cutter For Corrugated Board | Grade: | Automatic |
|---|---|---|---|
| Wallboard Thickness: | 60mm | Gear Thickness: | 60mm |
| Die Cutting Precision: | ±1.5mm | Tinted Precision: | ±0.5mm |
| Maximum Paper Size: | 1200 X 2600mm | Design Speed: | 260Pcs/Min |
| High Light: | Corrugated Board Carton Box Flexo Printer,3 Color Carton Box Flexo Printer,260pcs/Min Carton Box Flexo Printing Machine |
||
Product Description

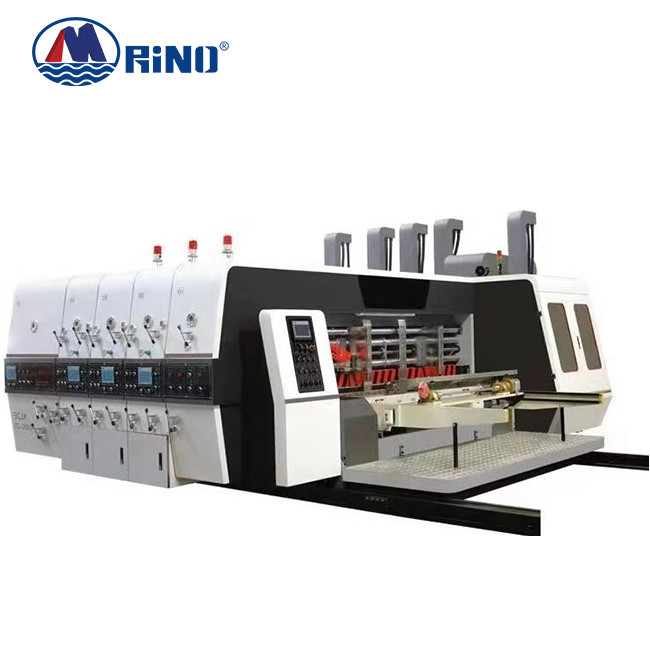

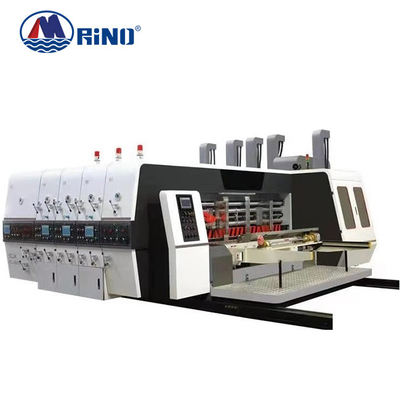

260pcs/Min 3 Color Carton Box Flexo Printing Machine With Die Cutter For Corrugated Board
Box Flexo Printing Machine Introduction
This equipment can complete the multi-color printing, creasing, grooving, trimming, corner cutting, die cutting, punching and other processes of cardboard at one time. The equipment adopts adsorption paper feeding, the host and fan inverter control the start and stop, the high-power dust removal fan cleans the surface of the cardboard, the main touch screen and the side touch screen use the PLC programming system to control each part, and realize the man-machine interface to control the operation of each part.
Parameter of Carton Flexo Printing Machine
| Model | HP-LM1200 |
| Width | 2800mm |
| Maximum speed(pcs/min) | 260 |
| Wallboard thickness(mm) | 60 |
| Gear thickness(mm) | 60 |
| Maximum paper size(mm) | 1200 X 2600 |
| Minimum paper size(mm) | 350 X 650 |
| Skip paper feeding(mm) | 1450 X 2600 |
| Maximum printing size(mm) | 1200 X 2500 |
| Standard printing plate thickness(mm) | 3.2---7.2 |
| Cardboard thickness(mm) | 3---12 |
| Precision(mm) | Tinted accuracy ±0.5,die cutting accuracy ±1.5 |
| Power (kw) | 38 |
| Total power(kw) | 45 |
Main units
|
|
Paper feeding unit
The left and right baffle of the cardboard adopt the electric adjustment distance, which can be electrically controlled in the same way as the left and right according to the contract or separately controlled. The cardboard tractor adopts electric front and back adjustment to adapt to the width of the cardboard. The front baffle is manually synchronized lifting, which is simple, reliable and easy to operate.
|
|
|
Printing unit
The phase of the printing roller adopts a frequency converter electric system, with 360° phase adjustment, which can be applied in both running and stopped states.
|
|
|
Die Cutting Unit
The die roller use high-quality cast steel material, surface grinding, balance correction, and separate holes to increase the stability of operation, and the shaft is electroplated.
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
