Rino Packaging Machinery Co., Ltd

Manual Double Servo Carton Box Stitching Machine 250s/Min

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HS-M1200
Payment & Shipping Terms:
Minimum Order Quantity: 10 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Manual Double Servo Carton Box Stitching Machine Stitching Speed: 300-500 Nails/min
Machine Power: 2KW Stitching Method: 180°
Flat Stitching Wire Model: 17#, 18# Machine Size: 1700x700x1820mm
Machine Total Weight: 600KGS Voltage: 220V/380V
High Light:

250s/min Carton Box Stitching Machine

,

2KW Manual Carton Box Stitching Machine

,

180 Degree Carton Box Stitching Machine

Product Description

Manual Double Servo Carton Box Stitching Machine



Cardboard Box Stitching Machine Introduction



The machine adopts double servo motor control, high nailing speed, neat and beautiful nail distance, adjustable nail distance, the main parts of the machine head are made of imported alloy steel, wear-resistant, and the service life is 3 to 5 times that of ordinary machines. High efficiency, low energy consumption, low failure rate, convenient operation and other characteristics, it is the ideal carton nailing equipment for modern carton factories.



1. The servo motor controls the paper pushing, and the servo motor controls the head nailing.

2. The nail distance can be adjusted arbitrarily from 30 to 120 mm.

3. Computer display input for order quantity, completed quantity, remaining quantity, total nail distance, and nail quantity.

4. The nailing speed is adjustable from 220-570 nails/min.



Cardboard Box Stitching Machine Specification



Model Stapling speed Stapling thickness Stretching length of the loading arm Dimension Weight
HS-M1200 250s/min 3/5/7ply 1200mm 1700x700x1820 600kg
HS-M1400 250s/min 3/5/7ply 1400mm 1900x700x1820 800kg
HS-M1800 250s/min 3/5/7ply 1800mm 2300x700x1820 1000kg



Machine details

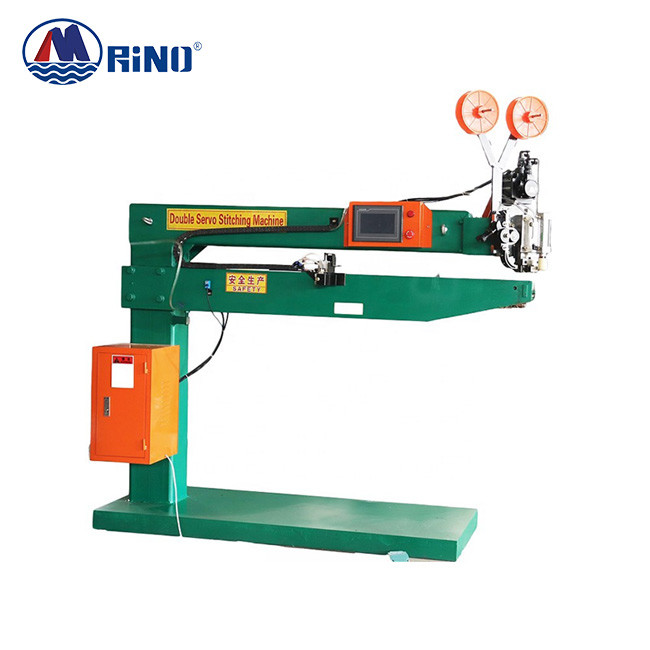

Manual Double Servo Carton Box Stitching Machine 250s/Min 0 Manual Double Servo Carton Box Stitching Machine 250s/Min 1



Manual Double Servo Carton Box Stitching Machine 250s/Min 2
