Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HS-D2000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20-40 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | Corrugated Cardboard Box Making Stitching Double Piece Stitcher Machine | Maximum Cardboard(A+B)*2: | 4000mm |
|---|---|---|---|
| Maximum Tongue: | 100mm | Stitching Distance: | 30-120mm |
| Maximum Nailing Speed: | 500-600 Nail/min | Weight: | 2500kgs |
| Stitching No.: | 2-99 | Feeding Height: | 900mm |
| High Light: | Cardboard Automatic Stitcher Machine,Four Servo Automatic Stitcher Machine,PLC Control Automatic Stitcher Machine |
||
Product Description

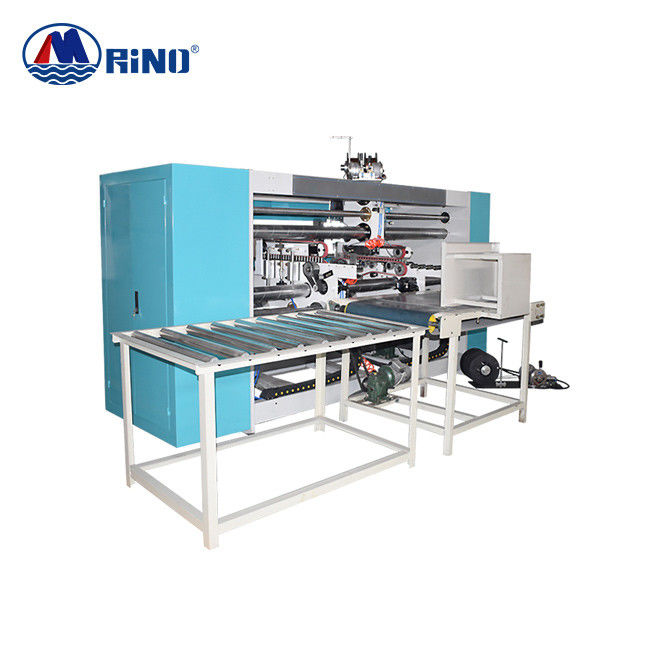

Corrugated Cardboard Box Making Stitching Double Piece Stitcher Machine
Cradboard Stitching Machine Features
This machine adopts Japan Yaskawa or Mitsubishi imported four servo drive,precision accuracy.The whole control system adopts OMRON PLC control system.The bottom mold and knife adopt wolfram steel (wear-resistant).It can nail a lid box &carton no cover, and can nail a monolithic ground nail carton ,twin sheet nail carton.The adjusting nail spacing, the use of computer set up automatic adjusting nail spacing,nail spacing 20-120mm adjustable. And can nail single nail,double row nail, strengthen nail .The rear section with automatic counting function, finished cartons can be set according to the number (1-99)sub stack sent to the conveying machinery terminal,convenient bundling.
Cradboard Stitching Machine Parameter
| Model | HS-D2000 |
| Max paper(A+B)*2(mm) | 4000 |
| Min paper(A+B)*2(mm) | 1060 |
| A Max carton length(mm) | 2850 |
| A Min carton lengt(mm) | 350 |
| BMax width(mm) | 1000 |
| B Min width(mm) | 120 |
| Max (C+D+C)paper height(mm) | 2500 |
| Min(C+D+C) paper height(mm) | 400 |
| C(mm) | 560 |
| C(mm) | 50 |
| DMax height(mm) | 2000 |
| DMin height(mm) | 150 |
| Max tongue width(mm) | 45 |
| Stitch distance | 30-120 |
| Stitch No | 1-99 |
| Speed (/min) | 600 |
| weight(T) | 2.5 |
Machine detail
|
|

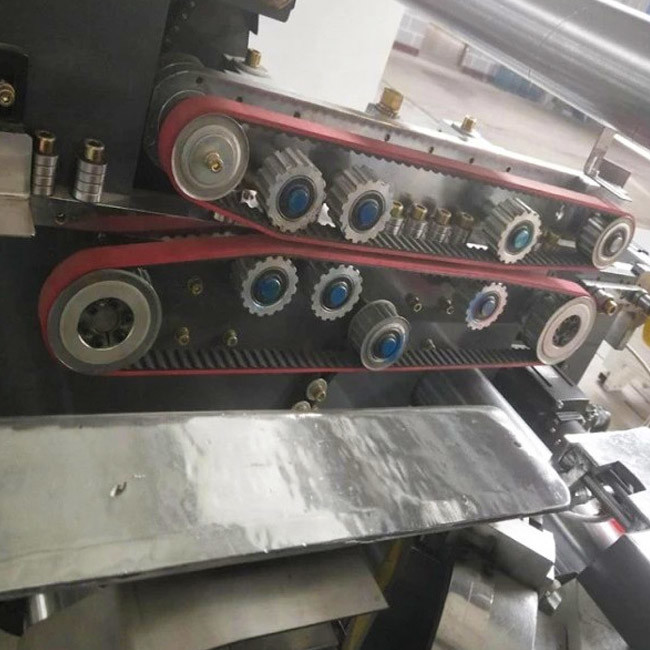

Patent type feeding width automatic adjustment device and printing locking device with screw.
|
|
|
Computer adjust nail distance. It is main machine interface control for convenient operation.
|
