Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HS-S2800 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 Set/Month |
Detail Information |
|||
Maximum Corrugated Board Size: | 2800*1500mm | Minimum Corrugated Board Size: | 660*330mm |
---|---|---|---|
Nailing Distance: | 30-120mm | Maximum Machine Speed: | 400-600 Nails/min |
Name: | Single Piece Semi Automatic Corrugated Carton Box Stitcher Stitching Machine | Power Supply: | 220V |
Nail Wire Model: | #17、#18 | Number Of Nails: | 2-99 |
Highlight: | Single Piece corrugated box stitching machine,2800*1500mm Corrugated Box Stitching Machine |
Product Description

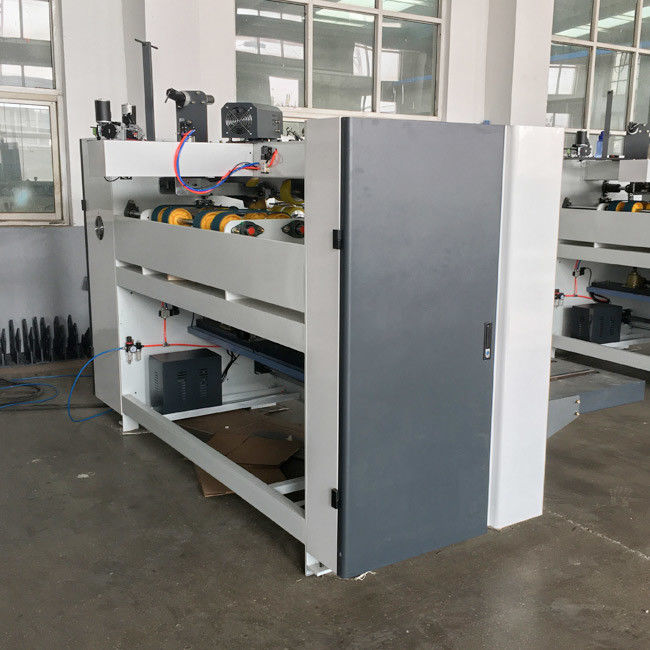

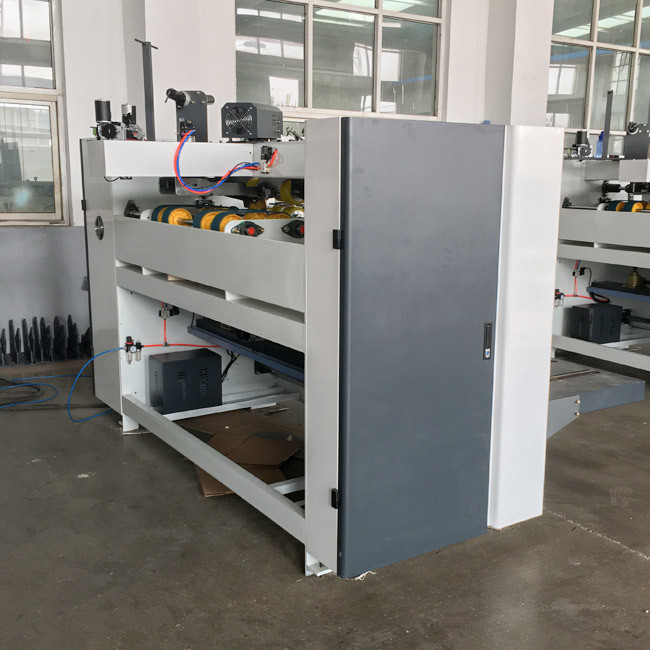

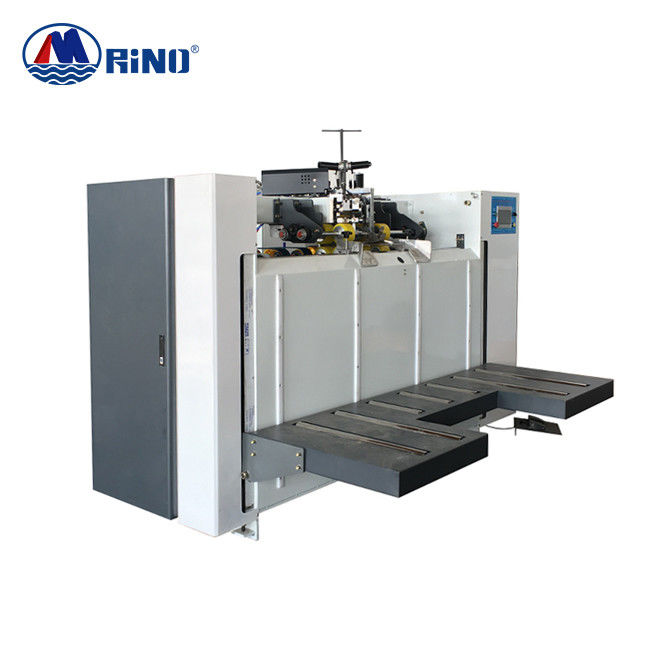

Single Piece Semi Automatic Corrugated Carton Box Stitcher Stitching Machine
Introduction of Cardboard Box Stitching Machine
1. Entire nail heads group made of special steel , computer gong is precision making.
2. Can nail single nail (/)Dual nail(/ /) strengthen nails (/ / / / / / two side are Dual nail, the middle part are single nail) once completed, can fit different customer requirements of different kinds of nails.
3. Changing carton size and adjusting nails can be completed just one minute, saving time and easy operation.
4. Can nail box with or without lid (with or without lid box should be informed to maker before machine making).
5. Department of automatic counting , feed units equipped with photoelectric sensors, when feeding, table automatically rise.
6. Rear section with automatic counting function, the number of finished carton can be set (1-99) and transport to the machinery end, convenient for bundled package.
Cardboard Box Stitching Machine Parameter
Model |
HS-S2800 |
MAX.pardboard Size | 2800*1500mm |
MIN .pardboard Size | 660*330mm |
Nail Distance | 30-120mm |
Speed | 400-600 nails / min |
Total Power | 6HP |
Nail Wire | #17,#18 |
Paper Stacking Height | 900MM |
Weight | 2500KGS |
Main Units of Box Stitching Machine
![]() |
Stapling head, punching and sliding are all adopts Japan alloy steel DC53 by strict heat process to ensure durable.
Suit for 3/5 ply offset carton and cover or no cover was stitched.
|
![]() |
Single nail, double nail, strengthen nail can be stitched one time.
Size was controlled by electric, fault was showed on the screen.
|
Accessory List
NO | NAME | NO. | BRAND |
1 | Touch screen | 1 | WEINVIEW,TAIWAN |
2 | SERVO MOTOR | 2 | MITSUBISHI,JAPAN |
3 | PLC | OMRON,JAPAN | |
4 | MOTOR | 1 | LIMING,TAIWAN |
5 | BLADE | 1 | Japanese Tungsten Steel |
6 | STITCHING HEAD | 1 | Imported from Taiwan, Italian technology |
7 | PHOTOELECTRIC SENSOR | 2 | OMRON,JAPAN |
8 | BREAKER | Schneider | |
9 | BUTTON | Schneider | |
10 | Wire Feeder | 1 | SHANGHAI |
11 | WALLBOARD | 1 | THICKNESS12mm |
12 | BEARINGS | 1 | C&U |
