Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HS-D2000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20-40 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | Semi Automatic Double Pieces Box Stitcher Cardboard Box Stitching Machine | Maximum Paperboard(A+B)*2: | 4000mm |
|---|---|---|---|
| Maximum Tongue Width: | 100mm | Stitching Distance: | 30-120mm |
| Nailing Speed: | 500-600 Nail/min | Weight: | 2.5T |
| Stitching No.: | 2-99 | Feeding Height: | 900mm |
| High Light: | Double Pieces Carton Box Stitching Machine,2.5T Carton Box Stitching Machine,600 Nail/Min carton stitching machine |
||
Product Description

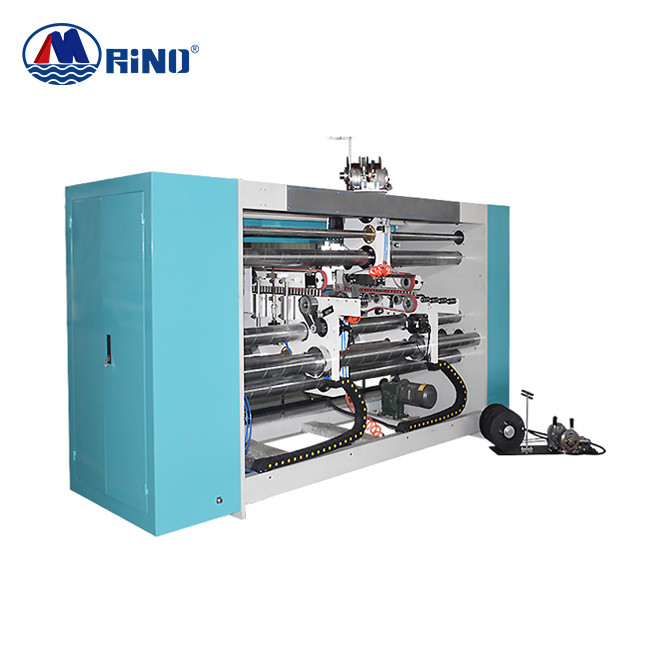

Semi Automatic Double Pieces Box Stitcher Cardboard Box Stitching Machine
Cradboard Stitching Machine Features
1. It has multi functions like single piece stitching, double piece stitching or irregular boxes.
2. Full electrical control of the dimension. It will only take 2-3 minutes to change the dimension...
3. Can be used for reinforced nail, single nail & double nail and will complete once.
4. Auto counting for the paper feeding, Binding of the products.
5. Suitable for the big boxes with high speed and lower labour force.
6. Computer adjustment of the nail distance in 30-120mm arbitrarily.
7. Computer display showing the break down specifications.
8. Special boxes without the cover can also be stitchered.
9. Suitable for the 3 ply, 5 ply & 7 ply boxes ( need to specify for the 7 ply boxes. )
Cradboard Stitching Machine Parameter
| Model | HS-D2000 |
| Max paper(A+B)*2(mm) | 4000 |
| Min paper(A+B)*2(mm) | 1060 |
| A Max carton length(mm) | 2850 |
| A Min carton lengt(mm) | 350 |
| BMax width(mm) | 1000 |
| B Min width(mm) | 120 |
| Max (C+D+C)paper height(mm) | 2500 |
| Min(C+D+C) paper height(mm) | 400 |
| C(mm) | 560 |
| C(mm) | 50 |
| DMax height(mm) | 2000 |
| DMin height(mm) | 150 |
| Max tongue width(mm) | 45 |
| Stitch distance | 30-120 |
| Stitch No | 1-99 |
| Speed (/min) | 600 |
| weight(T) | 2.5 |
