Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HS-D2400 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 20-40 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 Set/Month |
Detail Information |
|||
Name: | Semi-Automatic Double Jointed Stitching Machine Carton Box Stitcher Machine Nail | Maximum Cardboard(A+B)*2: | 4600mm |
---|---|---|---|
Max. Tongue: | 100mm | Stitching Pitch: | 30-120mm |
Maximum Nailing Speed: | 500nail/min | Weight: | 4000kgs |
Stitching No.: | 2-99 | Feeding Height: | 600mm |
Highlight: | Double Jointed Carton Box Stitching Machine,500 Nail/Min Carton Box Stitching Machine,RINO Carton Box Stitching Machine |
Product Description

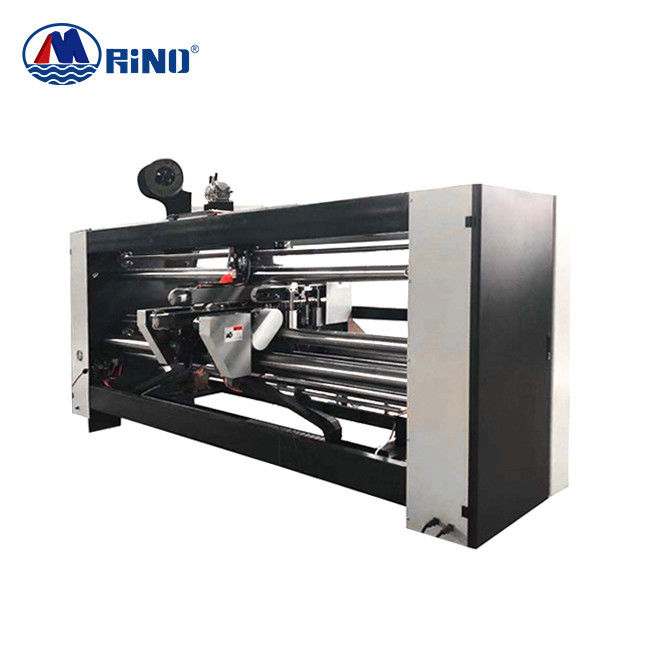

Semi-Automatic Double Jointed Stitching Machine Carton Box Stitcher Machine Nail
Cradboard Stitching Machine Features

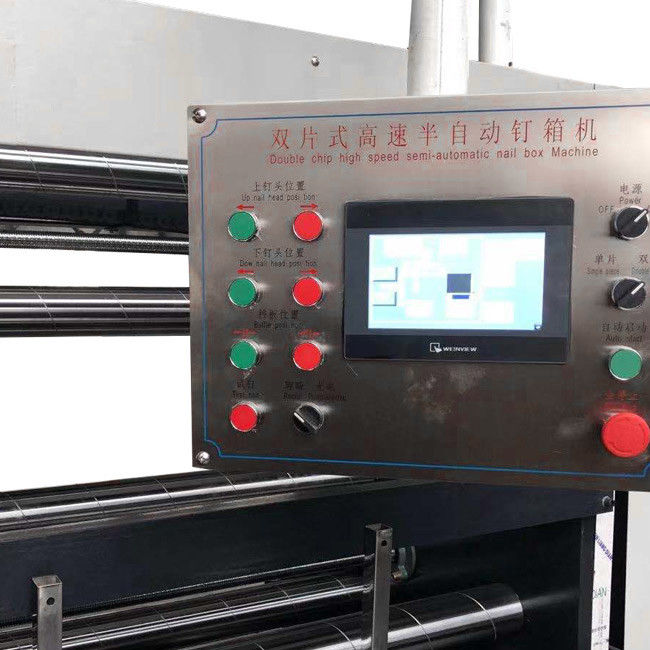

This machine can nail boxes with lids, cartons without lids, single-piece cartons, and double-piece cartons. Adjust the nail distance, use the computer to automatically adjust the nail distance, the nail distance is adjustable from 30-120mm. It can also nail single nails, double-row nails and reinforced nails. The rear section has an automatic counting function, and the finished carton can be stacked according to the quantity (1-99) and sent to the conveying machine terminal, which is convenient for bundling.
Cradboard Stitching Machine Parameter
Model | HS-D2400 | HS-D3000 |
Max. sheet size(A+B)*2(mm) | 4600 | 5800 |
Min. sheet size(A+B)*2(mm) | 1060 | 1060 |
Max.sheet size length(mm) | 2250 | 2850 |
Min.sheet length(mm) | 350 | 350 |
Max.sheet width(mm) | 1200 | 1500 |
Min.sheet width(mm) | 180 | 180 |
Min.sheet height(C+D+C) (mm) | 400 | 400 |
Stitching pitch(mm) | 30-120 | 30-120 |
No.of stitching | 1-99 | 1-99 |
Machine speed(stitch/min) | 500 | 500 |
Power Required(HP) | 18 | 18 |
Machine Length(mm) | 6000 | 6000 |
Machine width(mm) | 3550 | 4150 |
Machine Weight(kg) | 4000 | 4200 |
Max.stopper Measurement | 600mm(C) | |
Max.TS width | 45mm(E) | |
Min.Frist stitch Pitch | 25mm(D) Uncover |
