Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HS-S2800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Maximum Paperboard Size: | 2800*1500mm | Minimum Paperboard Size: | 660*330mm |
|---|---|---|---|
| Stitching Distance: | 30-120mm | Maximum Speed: | 500 Nails/min |
| Name: | Semi Automatic Corrugated Box Stitching Stitcher Machine Corrugated Box Machinery | Power: | 380V |
| Nail Wire Type: | #17、#18 | Number Of Nails: | 1-99 |
| High Light: | 2800*1500mm Carton Box Stitching Machine,Double Servo Carton Box Stitching Machine,500 Nails/Min carton stitcher |
||
Product Description

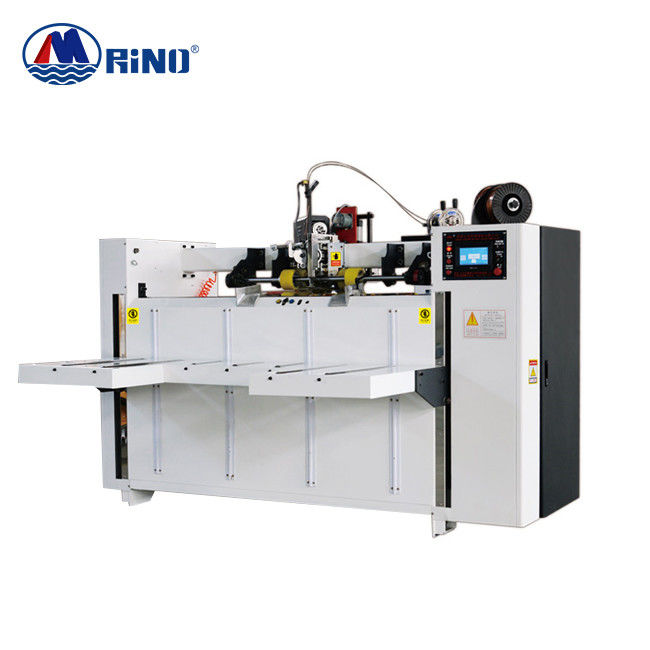

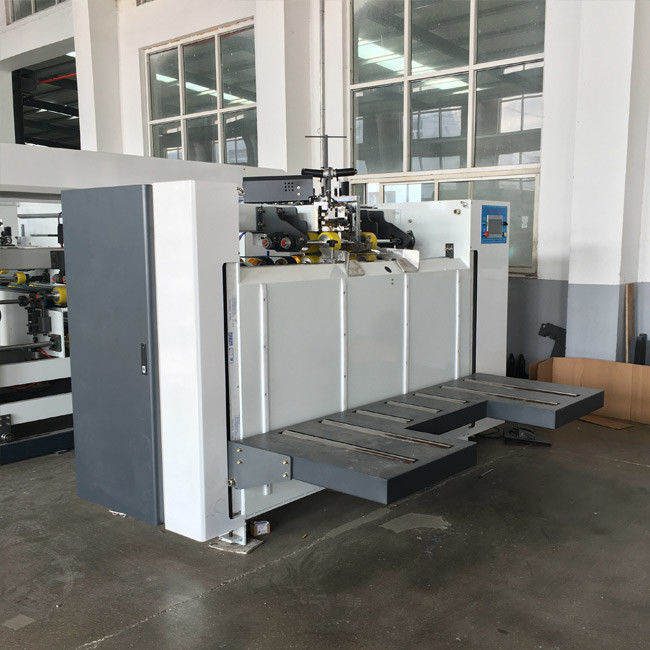

Semi Automatic Corrugated Box Stitching Stitcher Machine Corrugated Box Machinery
Introduction of Cardboard Box Stitching Machine
The double-servo semi-automatic nail box stitching machine is the latest product improved on the basis of the ordinary semi-automatic nail box machine. The whole driving and running part adopts two pieces of servo motors to drive the machine to run. Servo motors are also used in the feeding part, nail head and rear baffle. The adjustment of the rear baffle is operated through the touch screen, which is accurate, fast and convenient, without the need for workers to adjust. Improve the shortcomings of ordinary nail box machines that use gears and bearings to drive the machine to run, reduce machine failures, and extend the service life of the machine. The box stapler is the creative equipment of the carton factory.
Cardboard Box Stitching Machine Parameter
| Model |
HS-S2800 |
| MAX.pardboard Size | 2800*1500mm |
| MIN .pardboard Size | 660*330mm |
| Nail Distance | 30-120mm |
| Speed | 400-600 nails / min |
| Total Power | 6HP |
| Nail Wire | #17,#18 |
| Paper Stacking Height | 900MM |
| Weight | 2500KGS |
Main Units of Box Stitching Machine
|
|
Yaskawa Japan imported dual-servo-driven,accurately precision, mechanical transmission are decreased, which can effectively reduce the mechanical failure rate.
|
|
|
Single nail, double nail, strengthen nail can be stitched one time.
Size was controlled by electric, fault was showed on the screen.
|
Accessory List
| NO | NAME | NO. | BRAND |
| 1 | Touch screen | 1 | WEINVIEW,TAIWAN |
| 2 | SERVO MOTOR | 2 | Yaskawa ,JAPAN |
| 3 | PLC | OMRON,JAPAN | |
| 4 | MOTOR | 1 | LIMING,TAIWAN |
| 5 | BLADE | 1 | Japanese Tungsten Steel |
| 6 | STITCHING HEAD | 1 | Imported from Taiwan, Italian technology |
| 7 | PHOTOELECTRIC SENSOR | 2 | OMRON,JAPAN |
| 8 | BREAKER | Schneider | |
| 9 | BUTTON | Schneider | |
| 10 | Wire Feeder | 1 | SHANGHAI |
| 11 | WALLBOARD | 1 | THICKNESS12mm |
| 12 | BEARINGS | 1 | C&U |
