Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LM900 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Carton Box Flexo Printing Slotting Rotary Die Cutting Vibration Stacker Machine | Grade: | Automatic |
|---|---|---|---|
| Weight: | 20T | Gear Thickness: | 60mm |
| Standard Printing Plate Thickness: | 3.2---7.2mm | Tinted Precision: | ±0.5mm |
| Total Power: | 45KW | Design Speed: | 200Pcs/Min |
| High Light: | Vibration Flexo Printing Slotting Machine,Rotary Carton Box Flexo Printing Machine,Die Cutting Flexo Printing Slotting Machine |
||
Product Description

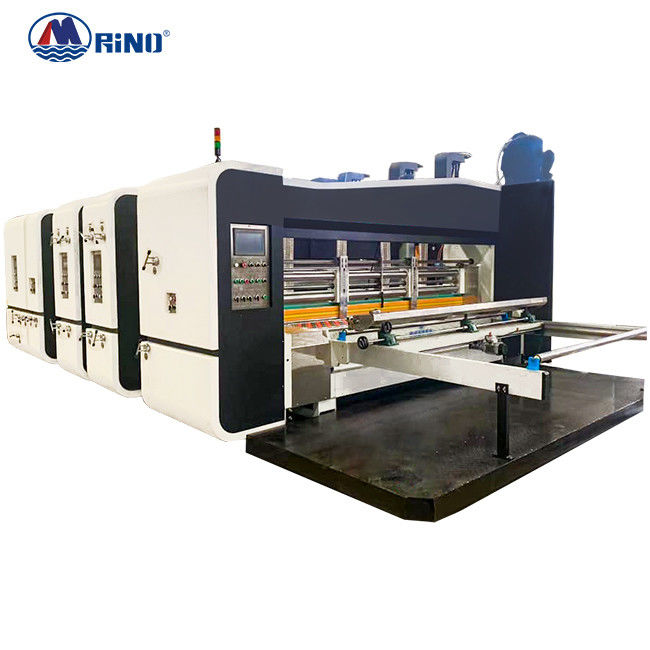

Carton Box Flexo Printing Slotting Rotary Die Cutting Vibration Stacker Machine
Box Flexo Printing Machine Introduction
Adopt advanced German Siemens servo control system to automatically track response to ensure long-term high printing accuracy.
Adopt advanced electrostatic adsorption, brush and rolling brush combined dust removal system to achieve good dust removal effect, ensuring perfect dots and pure color printing effect.
Computer centralized control, the whole machine is memorized, and orders can be saved.
Convenient production management.
With remote diagnosis and maintenance functions.
Parameter of Carton Flexo Printing Machine
| Model | HP-LM900 |
| Width | 2400mm |
| Maximum speed(pcs/min) | 200 |
| Wallboard thickness(mm) | 60 |
| Gear thickness(mm) | 60 |
| Maximum paper size(mm) | 900 X 2200 |
| Minimum paper size(mm) | 300 X 650 |
| Maximum printing size(mm) | 900 X 2000 |
| Standard printing plate thickness(mm) | 3.2---7.2 |
| Cardboard thickness(mm) | 3---12 |
| Precision(mm) | Tinted accuracy ±0.5 Slotting accuracy±1.5 die cutting accuracy ±1.5 |
| Power (kw) | 38 |
| Total power(kw) | 45 |
Main units
|
|
Paper feeding unit
The left and right side baffles (controlled by computer touch screen), the block box adopts electric adjustment, the front baffle gap is manually adjusted synchronously, and the side baffles are equipped with pneumatic routing devices to make the horizontal positioning of the cardboard more accurate.
|
|
|
|
|
Slotting Unit
Slotting knife width 7mm, alloy material, after heat treatment, grinding, tooth-shaped slotting knife, two-piece cutting edge knife, sharp edge, high precision.
|
Packaging&shipping
FAQ
1.Q:What is the machine warranty?
A:one year.
2.Q:What is the production time while placing order?
A:About 20 days
3.Q:What is the delivery time?
A:40-60 days after get the payment.
4.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
5.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
6.Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
