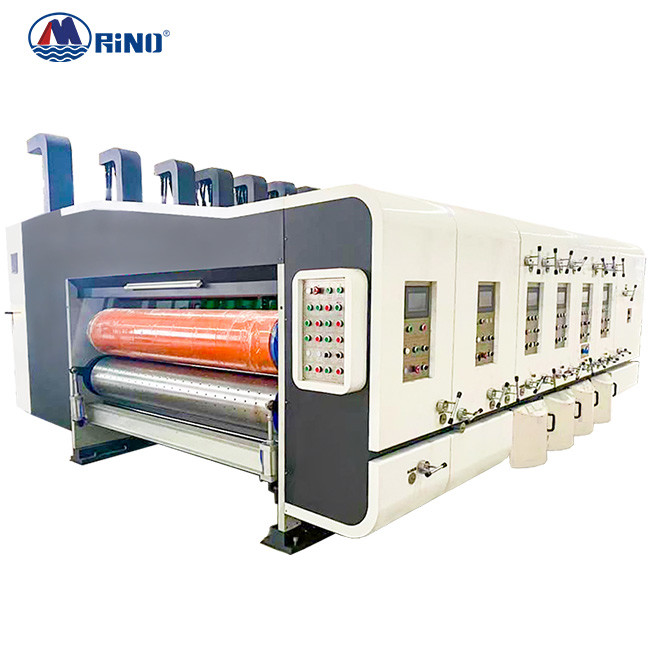

Automatic Carton Box Flexo Printing Slotting Machine 4 Color For Corrugated Board

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LM1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Automatic Carton Box Flexo Printing Die Cutting Slotting Machine For Corrugated Board Grade: Automatic
Weight: 20-30T Gear Thickness: 60mm
Standard Printing Plate Thickness: 3.2---7.2mm Tinted Precision: ±0.5mm
Total Power: 45KW Design Speed: 200Pcs/Min
High Light:

Carton Box Cardboard Flexo Printing Machine


Corrugated Cardboard Flexo Printing Machine


4 Color Flexo Printing Slotting Machine

Product Description

Automatic Carton Box 4 Color Flexo Printing Die Cutting Slotting Machine For Corrugated Board



Box Flexo Printing Machine Introduction


This machine is designed and manufactured in accordance with strict specifications and safety standards, and has the advantages of high speed, automatic control, and quick order replacement.

Using high-quality materials and parts. All electronic components comply with CE standards, and safety standards can be equivalent to European standards.

Each unit is fixed with a vacuum suction transmission device, which can transfer the order of idle printing units during production.


Parameter of Carton Flexo Printing Machine


Model HP-LM1600
Width 2600mm
Maximum speed(pcs/min) 200
Wallboard thickness(mm) 60
Gear thickness(mm) 60
Maximum paper size(mm) 1600 X 2400
Minimum paper size(mm) 400 X 650
Skip paper feeding(mm) 1650 X 2400
Maximum printing size(mm) 1600 X 2300
Standard printing plate thickness(mm) 3.2---7.2
Cardboard thickness(mm) 3---12
Precision(mm) Tinted accuracy ±0.5 Slotting accuracy±1.5 die cutting accuracy ±1.5
Power (kw) 38
Total power(kw) 45


Main units


Automatic Carton Box Flexo Printing Slotting Machine 4 Color For Corrugated Board 0

Paper feeding unit


1. The feeding roller is made of two layers of rubber, the inner layer is soft and the outer layer is hard, which makes the inner layer more flexible, the surface is more wear-resistant, and the groove damage of the cardboard is reduced;
2. Dust removal system with brushes and segmented vacuum cleaners; self-locking system adopts adjustment of the feed roller gap, feeder side guide electric and PLC control;
3. The vacuum fan is controlled by variable frequency drive to increase or decrease the vacuum suction to match different sizes of cardboard.



Automatic Carton Box Flexo Printing Slotting Machine 4 Color For Corrugated Board 1

Slotting Unit


1. The first pre-creasing, the cardboard will not be damaged after pre-creasing.
2. The slotting register and the height of the carton are digitally controlled by the motor and PLC.
3. The flexible angle cutting knife can cut 3 or 5 or 7 layers of cardboard without adjustment and easy operation.







1.Q:What is the machine warranty?
A:one year.
2.Q:What is the production time while placing order?
A:About 20 days
3.Q:What is the delivery time?
A:40-60 days after get the payment.
4.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
5.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
6.Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
