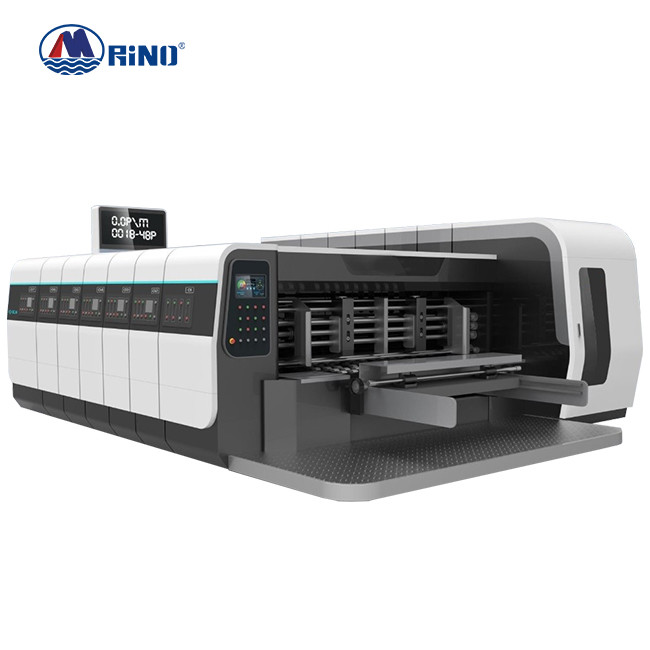

4 Color Carton Box Flexo Printing Machine For Corrugated Board

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LM1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 4 Color Carton Box Flexo Printing Machine Printer Slotter Die Cutter Machine For Corrugated Board Grade: Automatic
Wallboard Thickness: 60mm Gear Thickness: 60mm
Die Cutting Precision: ±1.5mm Tinted Precision: ±0.5mm
Maximum Paper Size: 1200 X 2600mm Design Speed: 200Pcs/Min
High Light:

Flexo Carton Box Printer


4 Color Carton Box Flexo Printer


Die Carton Box Flexo Printing Machine

Product Description

4 Color Carton Box Flexo Printing Machine Printer Slotter Die Cutter Machine For Corrugated Board


Box Flexo Printing Machine Introduction


The front of the main machine is equipped with paper output monitoring equipment, and the situation of the paper output department is observed at any time when starting and stopping machine to ensure the safety of the operator who start and adjust the machine. Each part is electrically separated and combined, pneumatic locking, pneumatic lifting, automatic ink distribution, and ink shortage alarm system to ensure the normal operation of the whole machine, fine printing patterns and accurate color registration. All drive shafts of the whole machine are treated with dynamic and static balance, and the gears are special processed , all are carburized and grounded, the overall hardness is HRC52-58, and the accuracy is level 6. All gear lubrication adopts spray-type circulating lubrication, equipped with circulating oil display window, to observe the oiling situation at any time.


Parameter of Carton Flexo Printing Machine


Model HP-LM1200
Width 2800mm
Maximum speed(pcs/min) 200
Wallboard thickness(mm) 60
Gear thickness(mm) 60
Maximum paper size(mm) 1200 X 2600
Minimum paper size(mm) 350 X 650
Skip paper feeding(mm) 1450 X 2600
Maximum printing size(mm) 1200 X 2500
Standard printing plate thickness(mm) 3.2---7.2
Cardboard thickness(mm) 3---12
Precision(mm) Tinted accuracy ±0.5,die cutting accuracy ±1.5
Power (kw) 38
Total power(kw) 45


Main units


4 Color Carton Box Flexo Printing Machine For Corrugated Board 0

Paper feeding unit

The lead edge paper feeding including standard type: suitable for various corrugated board , the system performance is stable, the paper feeding accuracy is high, adopts the vacuum negative pressure suction flat paper feeding method, to ensure high-speed and accurate paper feeding. (Optional additional price) "Light pressure" type: It can reduce the friction between the cardboard and the paper feeding table, and reduce the damage to the cardboard . Its characteristics is to protect the original corrugated board strength and reduce the injury of the elastic paper feeding rubber shaft mechanism on the cardboard, is conducive to smooth transfer of cardboard after touching the line. Reduce conveying congestion, save cardboard and reduce paper production time. It can feed E-flute (thin) horizontal corrugated paper, curved and lower quality cardboard.


4 Color Carton Box Flexo Printing Machine For Corrugated Board 1

Printing unit


Doctor blade system (optional additional price)

1. The innovative chamber fluid dynamics and ink sealing design of the enclosed double squeegee system have a good ink delivery effect and can save ink. The air pressure or cylinder is adjusted and locked, and the doctor blade wear is automatically compensated, so that the anilox roller and the doctor blade can fit better to obtain the best scraping effect. The Teflon anti-corrosion and anti-sticking coating in the inner chamber makes the ink transfer and cleaning easier. The all-round installation design can replace any old-fashioned rubber roller or single-squeegee system. "Fully enclosed" in the true sense, especially suitable for volatile solvent units, saving solvents and improving the working environment.


4 Color Carton Box Flexo Printing Machine For Corrugated Board 2

Slotting Unit


The standard thickness of the slotting knife is 7mm, and the tooth-shaped slotting knife is made of alloy steel after heat treatment and has good hardness and toughness. Two-piece trimming knife with sharp edge and high precision. The shaft is made of high-quality 45# seamless steel pipe, the surface is ground and electroplated, and the movement is stable. Large displacement mechanism of the middle knife, trimming and cutting device, strong production adaptability. Snap-fit double-blade trimming knife, trimming smooth and clean, saving cost.






1.Q:What is the machine warranty?
A:one year.
2.Q:What is the production time while placing order?
A:About 20 days
3.Q:What is the delivery time?
A:40-60 days after get the payment.
4.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
5.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
6.Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
