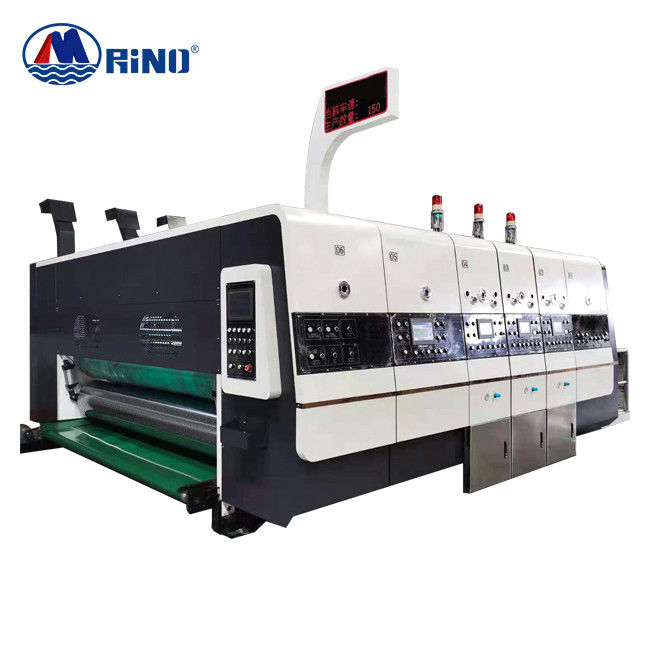

Precision 1.5mm 3 Color Carton Box Die Cutting Machine Lead Edge Feeding

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LM1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Precision 1.5mm 3 Color Carton Box Die Cutting Machine Lead Edge Feeding Type: Automatic
Total Weight: 20T Voltage Supply: 220V/380V
Die Cutting Precision: ±1.5mm Tinted Precision: ±0.5mm
Total Machine Power: 45KW Maximum Speed: 150Pcs/Min
High Light:

1.5mm Carton Box Die Cutting Machine


Carton Box Flexo Printing Machine 45KW


150Pcs/Min Carton Box Die Cutting Machine

Product Description

Precision 1.5mm 3 Color Carton Box Die Cutting Machine Lead Edge Feeding



Box Flexo Printing Machine Introduction


This machine can complete the multi-color printing, crimping, slotting, trimming and corner cutting of cardboard at one time. The equipment adopts the front edge adsorption paper feeding, the host computer and the fan frequency converter control the start and stop, and the touch screen adopts the PLC programming system of the industrial control parts, which realizes the human-machine interface to control the operation of all parts. The printing accuracy of this machine can be operated. The front of the main machine is equipped with paper output monitoring equipment, and the situation of the paper output department is observed at any time when starting and stopping to ensure the safety of the personnel who start the machine and adjust the machine. All parts are separated and combined electrically, pneumatic locking, pneumatic lifting, and automatic ink distribution system to ensure the normal operation of the whole machine, fine printing patterns and accurate color registration.


Parameter of Carton Flexo Printing Machine


Model HP-LM1250
Color Group Everything can be equipped according to user’s needs.
Printing Paper A, B, C, A/B, B/C, A/B/C FLUTE
Production Speed 80 -100 pieces/min Economy speed, Max Speed 120 pieces/min
Max. Paper feeding Sizes 1200mm*2600mm
Max. Printing Sizes 1200mm*2500mm
Standard Printing Plate Thickness 7.2mm


Roller Dia.


Main units


Precision 1.5mm 3 Color Carton Box Die Cutting Machine Lead Edge Feeding 0

Paper feeding unit


1. Suction fan, high pressure centrifugal fan has large air volume, can adjust the air volume according to the warping degree of the paperboard, increase the stability and accuracy of the transmission of the thin paperboard and the warp corrugated cardboard.

2. The paper feeding rubber roller is made of high elastic rubber, wear resistant natural rubber, high temperature casting glue, excircle and deep groove grinder, and the balance correction is carried out

3. Without equipping oil recycling and lubrication structure , and it is friendly to environment .


Precision 1.5mm 3 Color Carton Box Die Cutting Machine Lead Edge Feeding 1

Printing unit


1. The paper-feeding of the drive part of the printing part adopts cross sliding drive. The gears of the print pressing roller and the paper-catching roller adopt the planetary rocker-plate drive device. The gears are normally meshed from beginning to end while the space between the print pressing and the paper catching is adjusted.

2. Pneumatic diaphragm pump ink supply system, the internal parts are with high hardness stainless steel material, will not be acid and alkali corrosion, diaphragm pump pad adopts seven layer combination, elastic better, longer service life







1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A:  for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
