Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HS-D2000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20-40 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | Carton Box Wire Stitcher Cardboard Box Double Head Stitching Machine | Maximum Paper(A+B)*2: | 4000mm |
|---|---|---|---|
| Max Tongue Width: | 100mm | Stitch Distance: | 30-120mm |
| Nailing Speed: | 600 Nail/min | Weight: | 2.5T |
| Stitch No: | 2-99 | Feeding Height: | 900mm |
| High Light: | 4 Servo Automatic Carton Stitching Machine,Double Head Automatic Carton Stitching Machine,RINO Automatic Carton Stitching Machine |
||
Product Description

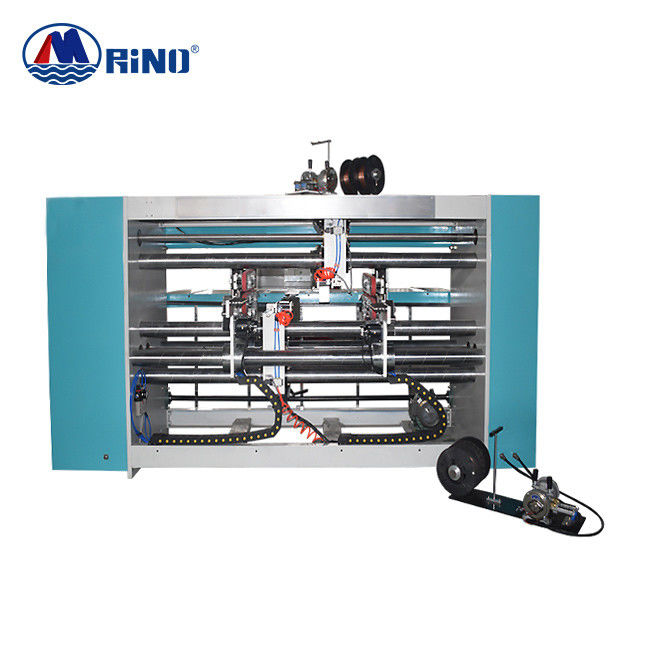

Carton Box Wire Stitcher Cardboard Box Double Head Stitching Machine
Cradboard Stitching Machine Features
1. Suitable for making single or double irregular carton without cover.
2. Electric control the carton size.

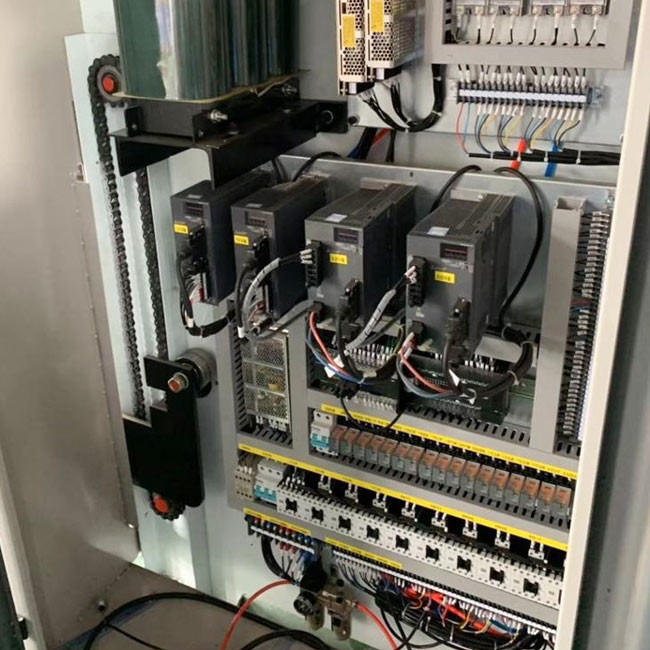

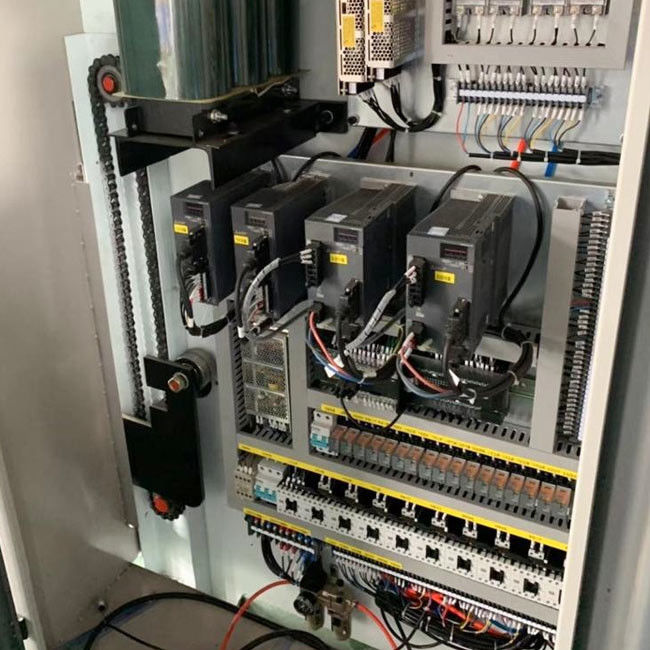

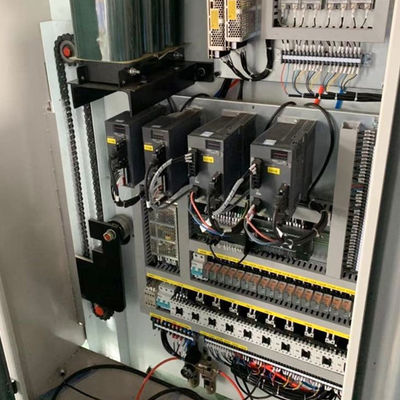

3. Powerful 4 servo control system, more stable and accurately.
4. Auto alarm when machine out of nails, automatic counting.
5. Use high quality components. Mitsubishi PLC system, Yaskawa servo motor, Siemens touch screen,schneider electronic switch, NSK bearings.
6. Blades and bottom die use high quality tungsten materials with wear resisting function.
Cradboard Stitching Machine Parameter
| Model | HS-D2000 |
| Max paper(A+B)*2(mm) | 4000 |
| Min paper(A+B)*2(mm) | 1060 |
| A Max carton length(mm) | 2850 |
| A Min carton lengt(mm) | 350 |
| BMax width(mm) | 1000 |
| B Min width(mm) | 120 |
| Max (C+D+C)paper height(mm) | 2500 |
| Min(C+D+C) paper height(mm) | 400 |
| C(mm) | 560 |
| C(mm) | 50 |
| DMax height(mm) | 2000 |
| DMin height(mm) | 150 |
| Max tongue width(mm) | 45 |
| Stitch distance | 30-120 |
| Stitch No | 1-99 |
| Speed (/min) | 600 |
| weight(T) | 2.5 |
Machine detail
|
|
Patent type feeding width automatic adjustment device and printing locking device with screw.
|
|
|
Computer adjust nail distance. It is main machine interface control for convenient operation.
|
