Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LM1200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | High Speed 5 Color Flexo Printing Carton Box Machine With Drying And Uv Coating Function | Grade: | Automatic |
|---|---|---|---|
| Weight: | 35T | Voltage: | 220V/380V |
| Slotting Accuracy: | ±1.5mm | Tinted Accuracy: | ±0.5mm |
| Total Power: | 175KW | Design Speed: | 200Pcs/Min |
| High Light: | 35T Flexo Printing Machine For Corrugated Carton,200Pcs Flexo Printing Machine For Corrugated Carton |
||
Product Description

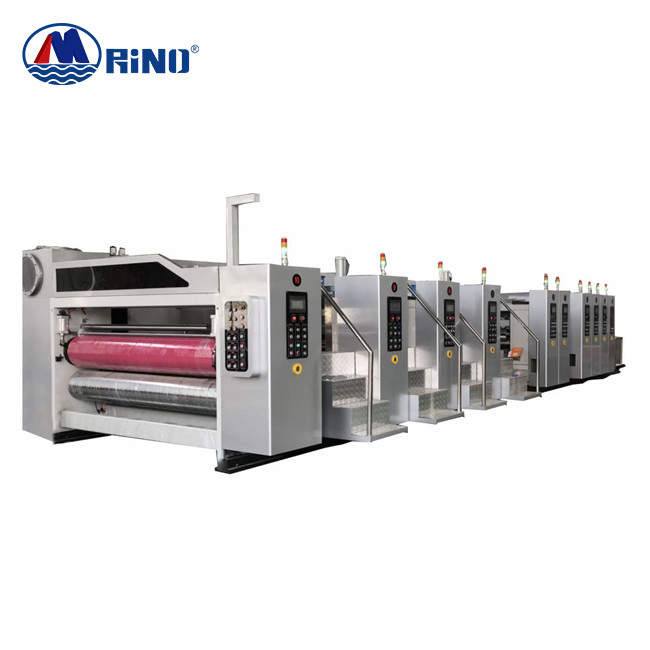

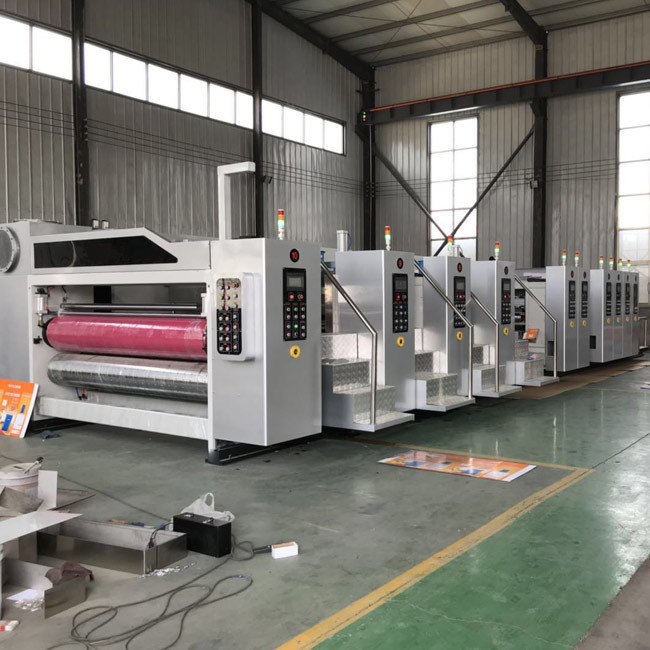

High Speed 5 Color Flexo Printing Carton Box Machine With Drying And Uv Coating Function
Carton Box Flexo Printing Machine Introduction
1.Automatic suction lead edge feeder equipped with suction fan to feeding cardboard, the blowing rate is adjustable by the transducer according to the degree of crook of cardboard in order to transmit cardboard smoothly.
2.The main control pannel is composed of control buttons and touch screen, which is very convenient and reliable.
3.The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
4.The side plate is electrical adjusted automatically while the backstop is adjusted manually.
5.Sheet cleaner is equipped to remove the contaminants on the cardboard which will improves the printing quality.
6.The upper transmission roll is made of seamless steel tube, the surface is covered wearproof rubber, which is also good at avoiding crushing the cardboard.
7.The lower transmission roll is made of seamless steel tube, with the treatment of grinding, embossing, and chrome plated.
8.The transmission between the upper and lower transmission roll is driven by double slider coupling, which is good at reducing wear down and transmitting smoothly.
9.The transmission shaft equipped with electromagnetic friction clutch, for avoiding damaging the motor in case of misoperation or overload.
10.Automatic counter for recording the cardboard supply quantity to show the output.
Parameter of Carton Flexo Printing Machine
| Machine width | 2800mm |
| Speed (pcs/min) | 200 Pcs / min |
| Width of the wall (mm) | 60 mm |
| Thickness of gear (mm) | 60 mm |
| Max. Feeding size (mm)) | 1200X2500 mm |
| Min feeding size (mm,) | 400X860 mm |
| Working Power (kw) | 175 ( The power is different according the printing colors ) |
| Skip feeding size (mm) | 1350X2500 mm |
| Die cutter precision | ±1.5 mm |
| Tinted Precision | ±0.25 mm |
| Total power (kw) | 200 |
| Max printing size (mm) | 1200X2400 mm |
| corruagted thickness (mm) | 3---12 mm |
|
Thickness of printing plate (mm) |
5.2---7.2 mm |
Main units
|
|
Paper feeding unit
1. Lead edge feeding type. 2. Vacuum absorption assist paper feeding ensure stable high-speed operation. The air volume can be adjusted according to the camber of the paperboard. 3. Front baffle can be electrically adjusted with scale on it, easily understood.
|
|
|
Printing unit
1. The printing roller and trace pressing roller: good quality SSTU, grinded and hard chrome-plated. 2. Hang printing plate system, it is easy to install and change printing plate. Foot switch operate. 3. International standard high-precision harmonic phasing device,PLC and touchscreen controlled 360 degree adjustment.
|
