Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HS-S2000 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 Set/Month |
Detail Information |
|||
Maximum Paperboard Size: | 1515×2460mm | Minimum Paperboard Size: | 300×606mm |
---|---|---|---|
Nail Distance: | 30-100mm | Speed Of Machine: | 600 Nails/min |
Name: | Semi Automatic Cardboard Box Stitching Machine Stitcher Machine Single Piece 2000 | Power: | 6HP |
Nail Wire Model: | 2.0mm×(0.65-0.75mm) | Weight: | 2t |
High Light: | PLC Control Semi Automatic Stitching Machine,600 Nails/Min Semi Automatic Stitching Machine |
Product Description

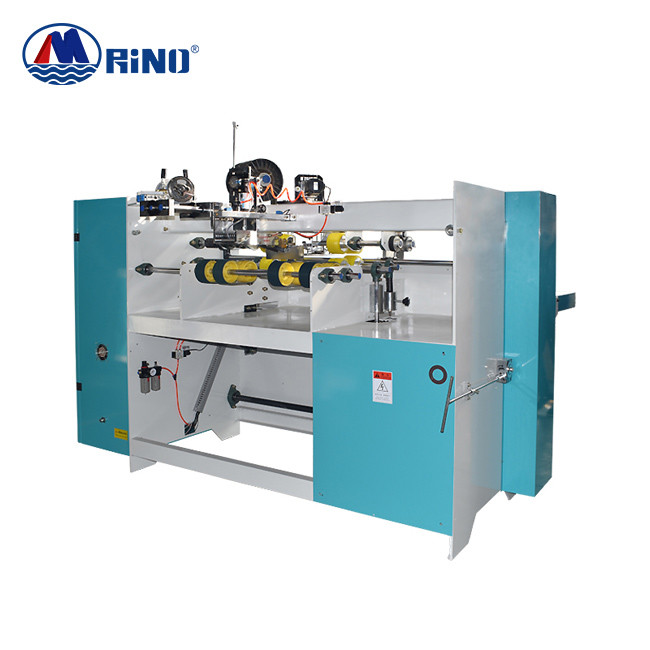

Semi Automatic Cardboard Box Stitching Machine Stitcher Machine Single Piece 2000
Introduction of Cardboard Box Stitching Machine
1. Double servo design ,PLC&touch screen control .
2. High speed semi-auto stitching with 600nails/min.
3. Automatic rising feed table keeps sheet high at feeding line for convenient operation , and automatic falling when sheet feed finish .
4. The electronic control system is controlled by PLC and the control system is easy to maintain.
5. Stitching type has single stitch ,double stitch ,and Strengthen the nail.
6. Easy operation and installation .
7. One minute quick change order .
8. The feeding department is automatically counted, and bundles output .
Cardboard Box Stitching Machine Parameter
Model |
HS-S2000 |
MAX.Cardboard Size | 1515×2460mm |
MIN .Cardboard Size | 300×606mm |
Nail Distance | 30-100mm |
Speed | 600 nails / min |
Total Power | 6HP |
Nail Wire | 2.0mm×(0.65-0.75mm) |
Paper Stacking Height | 900MM |
Weight | 2000KGS |
Main Units of Box Stitching Machine
![]() |
This transformation and adjustment of carton carton size from the nail it takes only a minute to be completed, greatly saves time and is convenient to operate. The front feeding part automatically counting, the feeding table is provided with a photoelectric sensing device, automatic rising feeder.
|
![]() |
Automatic alarm after stitching wire runs out. (to avoid the non wire when the leak to fight, less nail bad product) From semi-finished stapled to the finished and packaged Banding placed in the whole process of only two people operation, the operation is simple and convenient ,lower cost.
|
Accessory List
NO | NAME | NO. | BRAND |
1 | Touch screen | 1 | WEINVIEW,TAIWAN |
2 | SERVO MOTOR | 2 | MITSUBISHI,JAPAN |
3 | PLC | OMRON,JAPAN | |
4 | MOTOR | 1 | LIMING,TAIWAN |
5 | BLADE | 1 | Japanese Tungsten Steel |
6 | STITCHING HEAD | 1 | Imported from Taiwan, Italian technology |
7 | PHOTOELECTRIC SENSOR | 2 | OMRON,JAPAN |
8 | BREAKER | Schneider | |
9 | BUTTON | Schneider | |
10 | Wire Feeder | 1 | SHANGHAI |
11 | WALLBOARD | 1 | THICKNESS12mm |
12 | BEARINGS | 1 | C&U |
