Detail Information
Name:	Semi Automatic Carton Box Flat Bed Die Cutting Machine Stripping And Die Cutter Machine	Max Cardboard Size:	1510×1120mm
Min Cardboard Size:	400×400mm	Max Die Cutting Size:	1500×1100mm
Weight:	17800kg	Die Cutting Precision:	±0.5mm
Cardboard Thickness:	Corrugated Board Thickness ≤8mm	Max Die Cutting Speed:	4500 Sheets/h
High Light:	Stripping Carton Box Die Cutting Machine , Semi Auto Carton Box Die Cutting Machine , 1510×1120mm Flat Bed Die Cutting Machine

Product Description

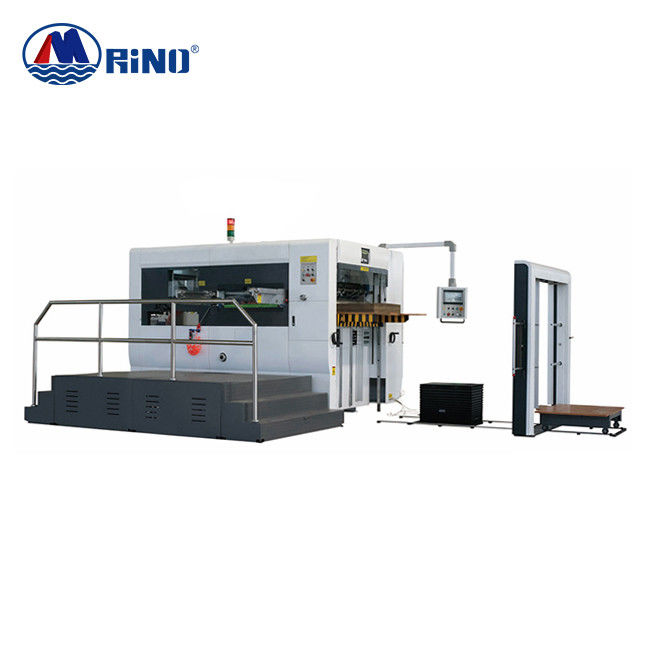

Semi Automatic Carton Box Flat Bed Die Cutting Machine Stripping And Die Cutter Machine

Product Description Of Carton Box Die Cutting Machine

1. The main wall panel is 70MM steel plate cutting, double-sided processing to 65MM, and the operating surface is reinforced

In order to ensure that the upper and lower whole and the processing height are consistent with the wallboard, the strength of the wallboard.

2. The square boxes on the bottom moving platform and the upper platform are all made of one-time casting of integral nodular cast iron.

3. After the second tempering aging treatment, the overall strength is consistent and not easy to be deformed

Parameter of Carton Box Die Cutting Machine

Model	HD-S1500
Max feeding cardboard size	1510×1120mm
Min feeding cardboard size	400×400mm
Max die cutting size	1500×1100mm
Max die cutting pressure	300T
Die cutting precision	±0.5mm
Cardboard thickness	Corrugated board thickness ≤8mm (max. thickness)
Max die cutting speed	4500 sheets/h
Weight	17.8T
Total power	17KW
Dimension	6300×4500×2500mm

Main Units

Linear bearings are used for paper delivery and arranging, with simple structure and neat paper delivery.

The humanized design ensures that the paper can be easily pulled out after die cutting, and the paper change time is controlled within one minute.

The die-cutting pressure is adjusted by four points, which can be adjusted easily by turning the handle, or can be adjusted individually.

With 350 tons of pressure, cardboard, corrugated paper or thick board paper can be easily die-cut.

Unusual automatic control of loose plates, paper falling, etc. realizes humanized automation of mechanical operation.

CE standard safety protection devices and warning devices ensure the safety of man and machine.

The main motor adopts high protection grade motor and imported frequency converter, and the power is never interrupted.

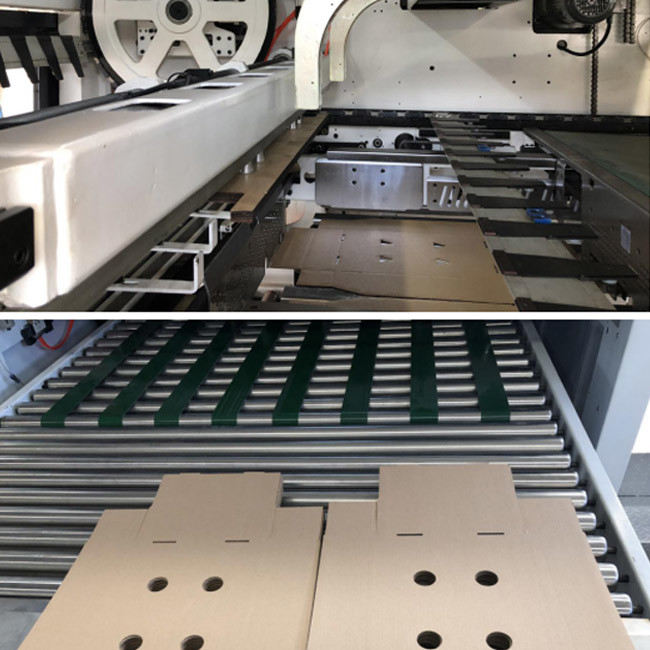

Finished Products

Flat Bed Stripping Carton Box Die Cutting Machine Semi Auto 1510×1120mm 3
