Product Details:
|
|
| Place of Origin: | Shandong,China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HD-L1300 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 1300 Automatic Lead Edge Feeding Carton Box Die Cutting Machine For Corrugated Board | Maximum Paper Size: | 1320*980mm |
|---|---|---|---|
| Minimum Paper Size: | 350*450mm | Die Cutting Precision: | ±1mm |
| Maximum Speed: | 5000sheets/h | Total Power: | 24.5KW |
| Weight: | 16.5T | Minimum Front Scrap Size: | ≥8mm |
| High Light: | 1300*960mm Corrugated Die Cutting Machine,Edge Feeding Corrugated Die Cutting Machine |
||
Product Description

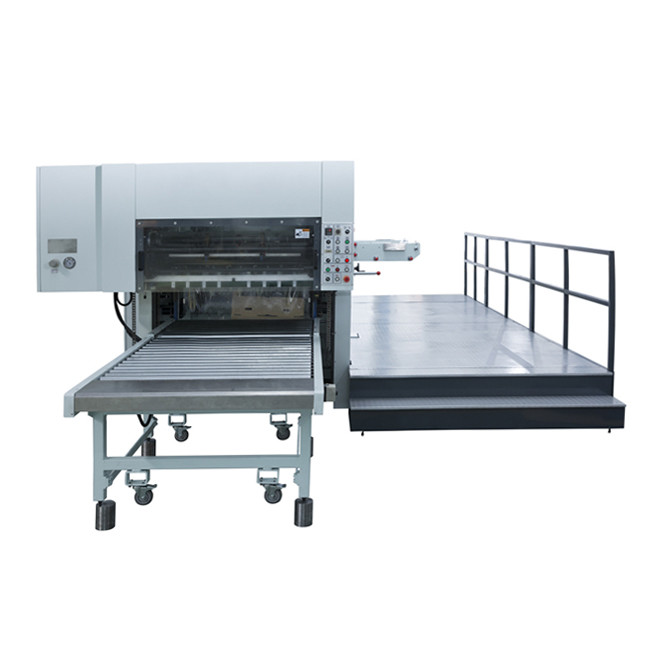

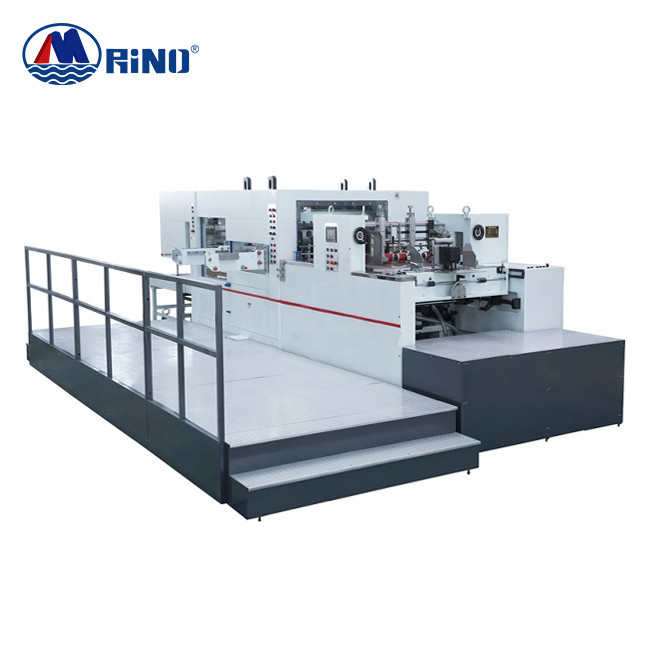

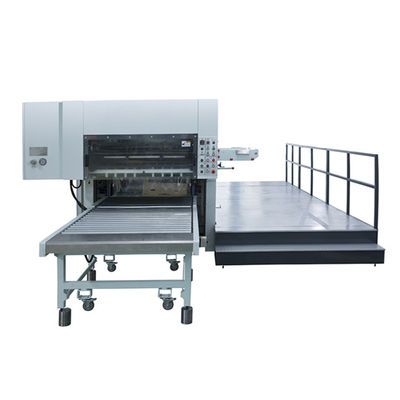

1300 Automatic Lead Edge Feeding Carton Box Die Cutting Machine For Corrugated Board
Carton Box Die Cutting Machine Introduction
This Fully Automatic Creasing and Die Cutting Machine has fully automatic feeding, die cutting,delivery,obstacle indicating ,checking and measuring functions. It is a special equipment for creasing and automatic die cutting ordinary cardboard ,paperboard, corrugated board (Such as Brands,stickers,labels,paper cups,Invitation letters,Paper box,Cartons, paper Bags,paper Mats,Namecars and so on) ,applicable to printing packaging decoration and plastic industries.Machine is characterized by compact structure, fine workship,big pressure, high precision and easy and reliable operation,etc.
Carton Box Die Cutting Machine Parameter
| Model | HD-L1300 |
| Max. paper size | 1320*980mm |
| Min. paper size | 350*450mm |
| Max. die-cutting size | 1300*960mm |
| Max.die-cutting pressure | 350N/cm2 |
|
Cardboard
Corrugated paper |
200-2000g/m2 ≤6mm |
| Max. die-cutting speed | 5000sheets/h |
| Max. feeding pile height |
1000mm (above the level) |
| Total power | 24.5KW |
|
Weight
|
16.5T |
|
Dimensions
|
5900*2365*2346mm |
Main Units
|
|
Paper feeding unit
Pre-paper pile design and special pneumatic bench can save much time The non-stop sampling system can check the board accurate without stop the machine.
|
|
|
Die cutting unit
Die cutting chase fixed accurately by pneumatic lock system Die cutting plate is putted in and out by air floating device Electric clutch system of main chain can assure the chain steady when it is stopped at high speed.
|
|
|
Stripping unit The complete waste removal system can automatically remove waste materials around and in the middle to ensure clean, neat waste removal and high production efficiency.
|
Finished Products
Main Electrical Appliances
| Equipment | Brand |
| Timing belt | Obi, Gates, EP |
| Mold spring | |
| Crankshaft material and processing | Japanese special steel |
| Vortex material and processing | Japanese special steel |
| Vortex material and processing | Japanese special steel |
| Cam material and processing | Japanese special steel |
| Encoder | Ikea, Switzerland |
