Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HH-S1100 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | 1100 Carton Box Die Cutting Machine And Foil Hot Stamping For Card Couplet | Plate Frame Size: | 1100X800mm |
|---|---|---|---|
| Working Speed: | 20±2pcs/min | Motor Power: | 5.5KW |
| Machine Weight: | 3800kg | Dimensions: | 1800 X1900 X1480mm |
| The Length Of The Indentation Section: | <15M | Color: | Customized |
| High Light: | 5.5KW Carton Box Die Cutting Machine,1100X800mm Carton Box Die Cutting Machine,1100mm hot stamping die cutting machine |
||
Product Description

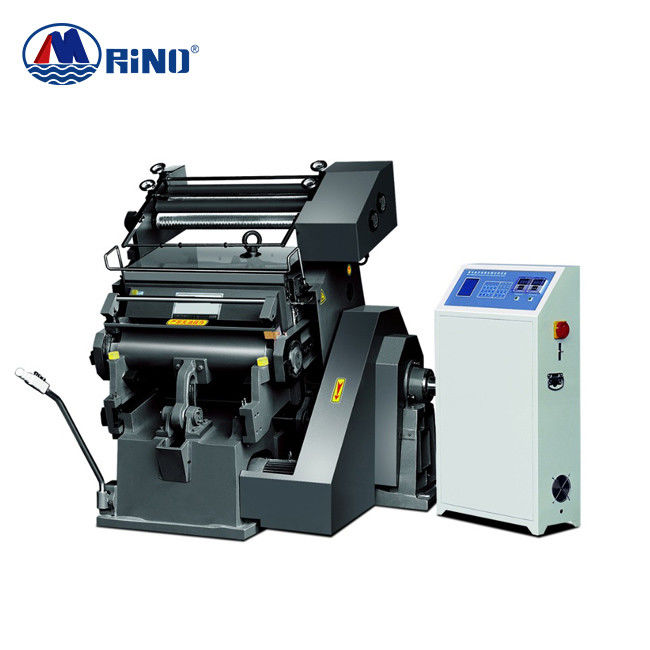

1100 Carton Box Die Cutting Machine And Foil Hot Stamping For Card Couplet
Product Introduction of Hot Stamping And Die Cutting Machine
The machine consists of motor seat, pressing frame, electromagnetic clutch transmission, electrical control components. Motor is located in the back right side of the machine, through the V-belt reduction drive. Drag the flywheel running. Electromagnetic clutch flywheel and shaft coupling. Pull through the electromagnetic clutch, disengaging operation or braking operation of the control shaft. After the operation of the drive shaft, through a reduction gear speed reduction system, the crank shaft at both ends of the wheel rotational speed, so affecting the connecting rod drives the reciprocating rocking motion swing frame completely. Creasing task. Paper features a three-step jump, Story or aluminum foil can be reversed, computer-controlled heat evenly.
Electrical Model
| Circuit breaker | DZ47-60-32A-3P 10-1P |
| Contactor | CJX2-2510 1810 1210-36V |
| Limit switch | ME8111 LX-19K LXW-6 11ZL LXK3/20S/T |
| Diode heat sink | ZP20A, Ping-pong switch 2 |
| transformer | JBK3-400A |
| Thermal relay | 18A-25A |
| emergency button | Red, green, yellow |
| Indicator light | Red, green, yellow,LD16-36V |
| Knob button | Black AN24-H,red AN24-K |
Parameter
| Model | HH-S750 | HH-S930 |
HH-S1100 |
HH-S1200 | HH-S1300 | HH-S1400 |
| Plate frame size | 750X520 | 930X660 | 1100X800 | 1200X820 | 1300X920 | 1400X1000 |
| Working speed | 25±3 | 20±3 | 20±2 | 20±2 | 18±2 | 18±2 |
| The length of the indentation section | <15M | <25M | <32M | <35M | <40M | <40M |
| Motor power | 2.2KW | 3KW | 5.5KW | 5.5KW | 7.5KW | 7.5KW |
| Machine weight | 1800kg | 2800kg | 3800kg | 4100kg |
5200kg
|
5500kg |
| Dimensions |
1300 X1300 X1700 |
1780 X1590 X1540 |
1800 X1900 X1480 |
1800 X2000 X1520 |
1800 X2120 X1600 |
1800 X2220 X1650 |
Machine Details
|
|
|
|
Packaging&Shipping
