Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HD-M1100 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Maximum Paper Size: | 1100×800mm | Working Speed: | 22±2(sheets /min) |
|---|---|---|---|
| Total Power: | 5.5kw | Weight: | 4500kg |
| Overall Dimensions: | 1900×1800×1700mm | Uasage: | Carton ,paper ,plastic Cutting Machine |
| Name: | 1100 Manual Carton Box Die Cutting Machine Plastic Paperboard Die Cutter | Usage: | Cardboard ,leather,plastic,corrugated Board Die Cutting |
| High Light: | 1100mm Carton Box Die Cutting Machine,Manual Carton Box Die Cutting Machine,Paperboard Manual Die Punching Machine |
||
Product Description

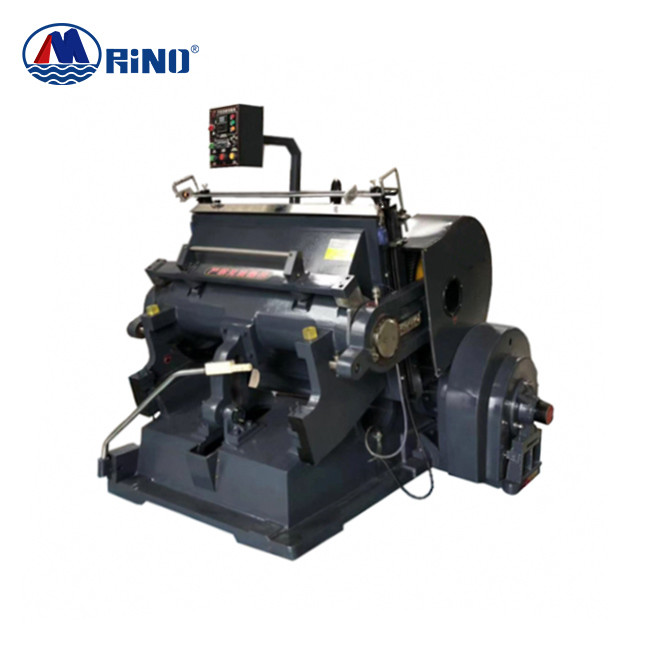

1100 Manual Carton Box Die Cutting Machine Plastic Paperboard Die Cutter
Product Introduction of Carton Box Die Cutting Machine
1. The sliding bearing is made of high-quality cast copper alloy, which is wear-resistant and vibration-reducing.
2. The flywheel has a large torque and a large pressing force.
3. The fuselage is integrally cast with high-quality materials, with high strength and good rigidity.
4. The single-plate electromagnetic clutch is sensitive and reliable.
5. It has three functions of single-chip pressing, continuous pressing and opening delay, and the delay range can be adjusted at will.
6. The operating height is designed reasonably, and the opening angle of the pressing frame is large.
This machine has the advantages of compact structure, excellent manufacturing, large pressing force, high precision, convenient use, safe and reliable operation and so on. This machine has four insurances and four functions. Insurance: Longmen insurance, triangle insurance, handle insurance, light control automatic insurance, which is more safe and reliable. Function: single cut, delay, continuous, counting. In addition, the brake clutch is an electric suction disc brake clutch, which has the characteristics of sensitive brake, large insurance coefficient and strong safety performance. The template frame adopts an adjustable plate frame to facilitate loading and unloading.
Die Cutting Machine Parameter
| Model | Max. Rule Area | Working speed | Total power | Weight | Overall Dimensions(L×W×H) |
| HD-M750 | 750×520mm | 25±2(sheets/min) | 2.2kw | 2000kg | 1260×1350×1280mm |
| HD-M930 | 930×670mm | 23±2(sheets/min) | 4.0kw | 3000kg | 1800×1600×1600mm |
| HD-M1100 | 1100×800mm | 22±2(sheets /min) | 5.5kw | 4500kg | 1900×1800×1700mm |
| HD-M1200 | 1200×830mm | 22±2(sheets /min) | 5.5kw | 4800kg | 1900×2000×1700mm |
| HD-M1300 | 1300×920mm | 16±2(sheets /min) | 5.5 kw/7.5kw | 6000kg | 2000×2400×1800mm |
| HD-M1400 | 1400×1000mm | 16±2(sheets /min) | 5.5 kw/7.5kw | 6500kg | 2000×2450×1900mm |
| HD-M1500 | 1500×1050mm | 15±2(sheets /min) | 5.5 kw/7.5kw | 7000kg | 2000×2500×1930mm |
| HD-M1600 | 1600×1250mm | 15±2(sheets /min) | 11kw | 11000kg | 2170×2560×2130mm |
| HD-M1800 | 1800×1300mm | 14±2 (sheets /min) | 15kw | 13500kg | 2240×2800×2230mm |
Machine details
|
|
|
|
