Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LM1600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Carton Box Flexo Printing Machine Corrugated Printer With Slotting Unit | Grade: | Automatic |
|---|---|---|---|
| Weight: | 18 T | Voltage: | 380V |
| Slotting Precision: | ±1.5mm | Tinted Precision: | ±0.5mm |
| Total Power: | 45KW | Design Speed: | 200Pcs/Min |
| High Light: | 1600×3600mm Corrugated Flexo Printing Machine,Slotting Unit Corrugated Flexo Printing Machine |
||
Product Description

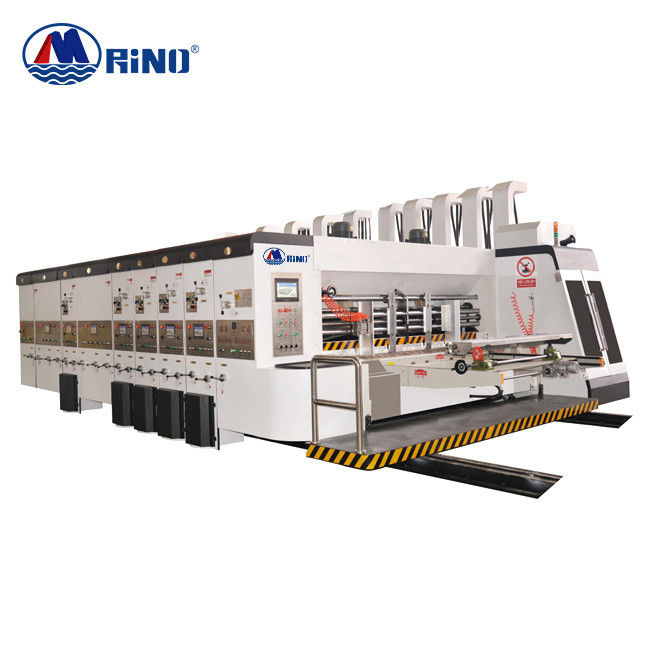

Carton Box Flexo Printing Machine Corrugated Printer With Slotting Unit
Carton Box Flexo Printing Machine Introduction
Touch screen available ,size input by screen or buttons based on operator needs.
Four rollers for feeding, upper two rollers wrapped with rubbers which can keep the flute in good shape, not destroyed. Dynamic balance technical for rollers.
Brush device is available ,which can clean the cardboard before printing.
Parameter of Carton Flexo Printing Machine
|
Width |
mm |
4000 |
|
Maximum Paper feeding size |
mm |
1600×3800 |
|
Effective printing size |
mm |
1600×3600 |
|
Minimum Paper feeding size |
mm |
350×650 |
|
Thickness of printing plate |
mm |
7.2 |
|
Design speed |
sheets/mi |
200 |
|
Economic speed |
sheets/mi |
150-180 |
|
Main motor |
KW |
20 |
|
Total power |
KW |
30-45 |
|
Weight |
T |
18 |
|
Tinted precision |
mm |
±0.5 |
|
Slotting precision |
mm |
±1.5 |
Main units
|
|
Paper feeding unit 1. Individual feeder system ,it is very steady when machine running ,and it is easier to adjust. 2. Touch screen available ,size input by screen or buttons based on operator needs.
|
|
|

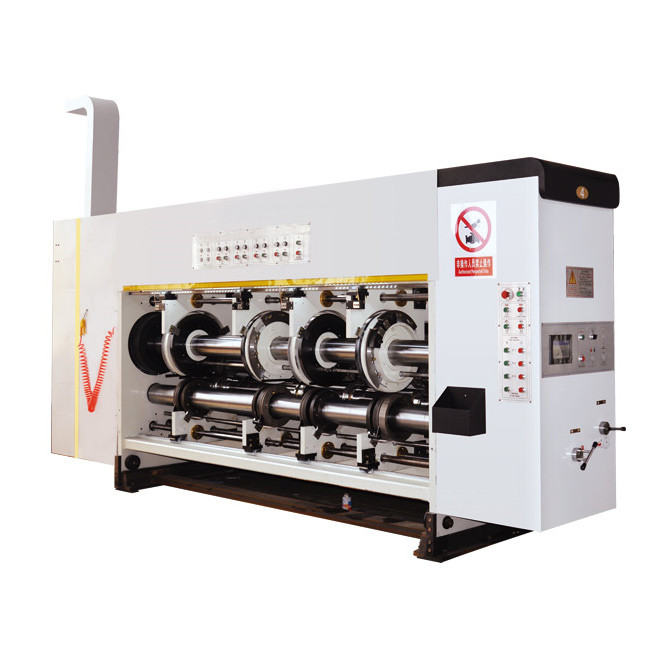

Printing unit
1. Gear adopt grinding technical for 40Cr material with thickness 50mm 2. Print rollers, ink roller and embossing rollers all adopt dynamic balance technical for ensure steady transmission. 3. Ink roller lifting automatically coordinate with feeding system. Installed wedge clutch which is good for ink distributing and washing.
|
Packaging&shipping
Factory Show
