Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HP-CM1600 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 Set/Month |
Detail Information |
|||
Name: | 3 Color Carton Box Flexo Printing Machine Chain-Drive Feeding With Die Cutting Slotter | Max. Paper Sizes: | 2600*1600 Mm |
---|---|---|---|
Max Printing Size: | 2400*1600mm | Working Speed: | 60(pcs/min) |
Max Speed: | 90(pcs/min) | Standard Printing Plate Thickness: | 6mm |
Roller Diameter: | 536mm | Usage: | Carton Box Printing |
High Light: | 3 Color Carton Box Flexo Printing Machine,Feeding Carton Box Flexo Printing Machine |
Product Description

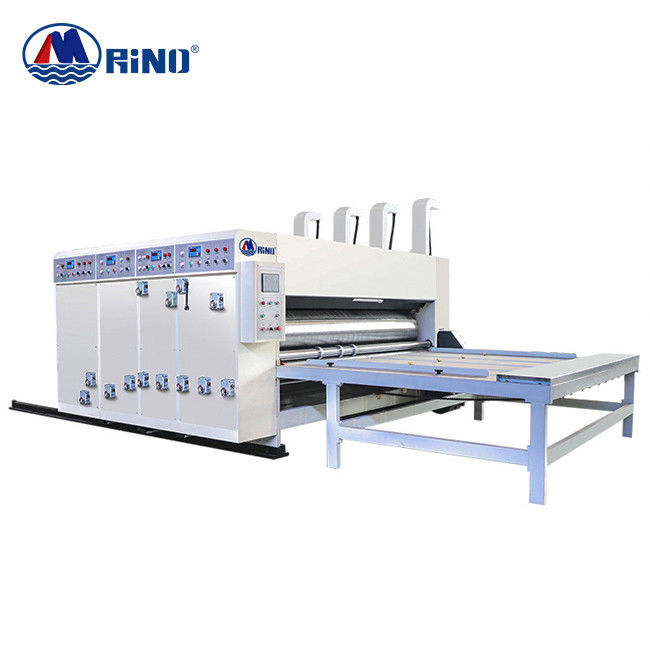

3 Color Carton Box Flexo Printing Machine Chain-Drive Feeding With Die Cutting Slotter
Characteristic Carton Box Flexo Printing Machine
1. This machine adopts chain feeding type, bilateral blocking positioning, to ensure that feed paper accurately.
2. The die cutting roller is 360° adjustment, digital display and equipped with electronic counter.
3. The gear of the machine adopts high frequency processing and uses automatic spray type lubrication greatly improve the operation precision and service life.
4. The roller is made of high quality steel, internal conditioning, surface grinding processing hard chromium lpating and dynamic balancing correction operate smoothly.
Parameter
Model | Max. paper sizes |
Max printing size |
Working speed | Max speed | Standard Printing Plate Thickness | Color-printed precision(four color) | Power of main motor |
Roller diameter |
HP-CM1470 | 2600*1600 mm | 2400*1600mm | 60(pcs/min) | 90(pcs/min) | 6mm | ±0.75mm | 11 kw | 536mm |
Main Units
![]() |
Paper feeding unit
1. Paper-feeding : Chain ,paper pushing feeding pizza box printing machine ;
|
![]() |
Printing unit 1. The printing roll is made of heavy wall seamless steel pipe, with surface finely ground and hard chrome plated, and balance corrected to ensure steady running. 2. High-precision anilox roller, The textured density of anilox roller is 200-250 lines / inch, to ensure the printing effect is clear and beautiful.
|
![]() |
Slotting unit
1.The tool shaft is seamless steel tube, and it is plated hard chromium after two times of grinding, and the movement is smooth 2.Slot width 7mm. 3.The alloy steel is grinded by heat treatment, and the hardness and toughness of the slotting cutter are guaranteed 4.The alloy steel is grinded and sharpened by heat treatment. The knife edge is sharp and the precision is high 5.Box height manual synchronous adjustment. 6.Planetary gear mechanism.
|
