Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LM1400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Lead Edge Feeding Carton Box Flexo Printing Machine Flexo Printer With Die Cutting | Grade: | Automatic |
|---|---|---|---|
| Weight: | 40000kg | Voltage: | 380V |
| Die Cutting Precision: | ±1.5mm | Tinted Precision: | ±0.5mm |
| Total Power: | 45KW | Design Speed: | 200Pcs/Min |
| High Light: | High Speed Carton Flexographic Printing Machine,45KW Carton Flexographic Printing Machine |
||
Product Description

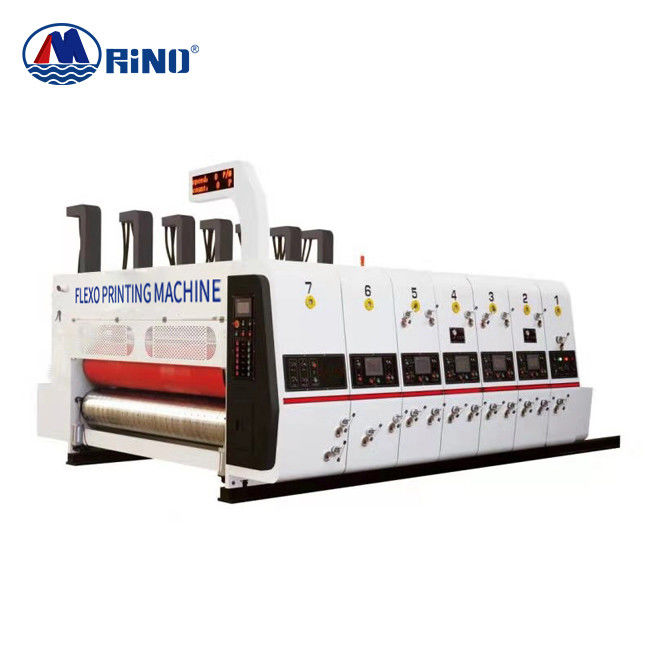

Lead Edge Feeding Carton Box Flexo Printing Machine Flexo Printer With Die Cutting
Carton Box Flexo Printing Machine Introduction
1. The important parts of the wallboard and the whole machine are tempered with aging to remove the internal stress of the metal; CNC grinder is used for grinding.
2. The shaft and rollers of the whole machine are made of steel, which have been ground, computerized for dynamic balance correction, and plated with hard chrome.
3. The transmission gear of the whole machine is made of 40Cr alloy steel, 50 thickness, carburized and quenched, hardness HRC 48-50; after grinding.
Parameter of Carton Flexo Printing Machine
|
Width |
mm |
2800 |
|
Maximum Paper feeding size |
mm |
1400×2600 |
|
Effective printing size |
mm |
1400×2400 |
|
Minimum Paper feeding size |
mm |
350×650 |
|
Thickness of printing plate |
mm |
7.2 |
|
Design speed |
sheets/mi n |
200 |
|
Economic speed |
sheets/mi n |
150 |
|
Main motor |
KW |
15-20 |
|
Total power |
KW |
30-45 |
|
Weight |
T |
15 |
|
Tinted precision |
mm |
±0.5 |
|
Die cutting precision |
mm |
±1.5 |
Main units
|
|
Paper feeding unit
|
|
|
Printing unit
1. The outer diameter is ￠480mm. 2. The surface of the steel pipe is ground and plated with hard chromium. 3. Do balance correction, stable operation. 4. Ratchet fixed reel shaft.
|
|
|
Die Cutting Unit
1. The outer diameter is 487 ㎜ . 2. The surface of cast steel material is ground and plated with hard chromium. 3. Balancing correction to increase running stability. 4. The distance between the fixed screw holes of the knife mold is 100 ㎜×100 ㎜. 5. Applicable knife mold height is 25.4 mm.
|
Packaging&shipping
FAQ
1.Q:What is the machine warranty?
A:one year.
2.Q:What is the production time while placing order?
A:About 20 days
3.Q:What is the delivery time?
A:40-60 days after get the payment.
4.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
5.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
6.Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
