Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HSF-C2200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | 150m/min Corrugated Board Production Line 320mm Cassette Corrugated Single Facer Machine | Maximum Speed: | 150m/min |
|---|---|---|---|
| Working Speed: | 120m/min | Maximum Working Width: | 1600-2500mm |
| Steam Temperature: | 160—210 Centigrade | Power Requirements: | 380V, 50Hz |
| Diameter Of Press Roller: | 345mm | Diameter Of Corrugated Roller: | 320mm |
| High Light: | Corrugated Board Production Line 150m/min,320mm Cassette Corrugated Board Production Line,Single Facer Corrugated Board Production Line |
||
Product Description

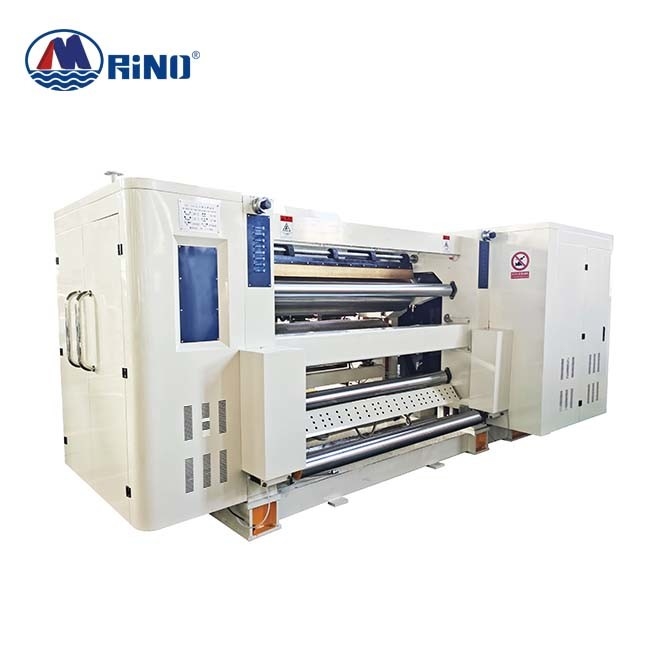

150m/min Corrugated Board Production Line 320mm Cassette Corrugated Single Facer Machine
Introduction of Single Facer Corrugated Machine
* The guide paper adopts wind absorption to maintain the stability of corrugated cord type at high speed.
* By the air blower through the vacuum box will be corrugated in the middle corrugated roller 180 degree range to form negative pressure zone, to complete the rolling of corrugated.
* Under the Corrugated roller suction groove width of not more than 2mm, can be reduced single-sided corrugated cardboard stripe traces.
* The transmission department adopts synchronous Belt drive, isolating the vibration source, making the transmission more stable, running reliably and maintaining higher.
* The use of automatic circulation of plastic, pneumatic gluing and reset, with buffering effect.
* On the surface of COTS through special screen engraving and chromium plating treatment.
Single Facer Corrugated Machine Parameter
|
Sheet width 2200mm Design speed: 150m/min Running speed: 120m/min |
||
| Name | Configuration | Qty |
|
SF-LH150 Cassette type Single facer |
Cassette type, corrugated roller material: tungsten carbide, diameter: ￠320mm, change corrugated roller in 10 minutes, frequency motor, electric adjust gluing width, adjust glue according to speed |
1set |
| Corrugated fast change part | Ø320mm Tungsten Carbide tile corrugated roller, suction hood, tile sleeve wall panel, swivel joint | 1set |
| Change roller trailer | Hydraulic synchronous lifting, electric traction walking | 1car |
|
|
