Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HE-M2000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | Electric Shaftless Paper Mill Roll Stand For Corrugated Paperboard Production Line | Maximum Paper Diameter: | φ1400mm |
|---|---|---|---|
| Range Of Paper Width: | 2000mm | Voltage: | 220V/380V |
| Usage: | Kraft Paper Holding Feeding | Color: | Customized According To Your Needs |
| Type: | Electrical Driving | Loading Capacity: | 1.5-2ton/side |
| High Light: | Electric Shaftless Mill Roll Stand,Paperboard Shaftless Mill Roll Stand |
||
Product Description

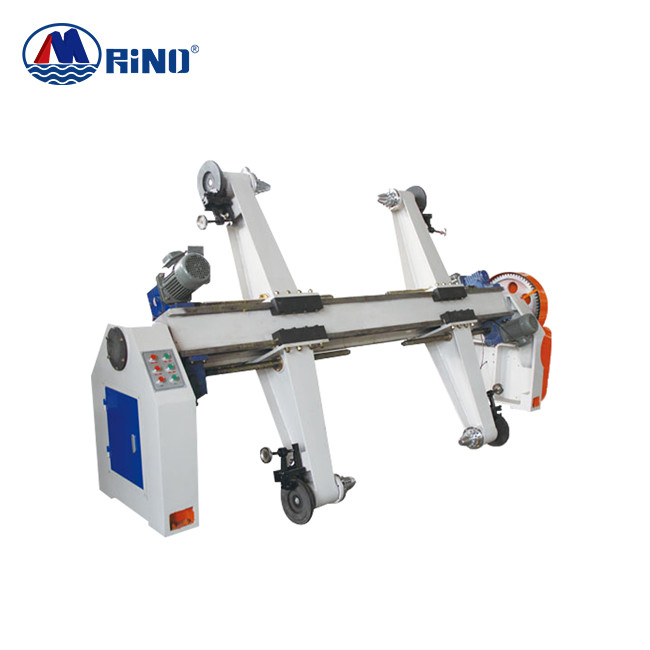

Electric Shaftless Paper Mill Roll Stand For Corrugated Paperboard Production Line
Electrical Shaft-Less Mill Roll Stand Function
1. Raw paper lift-lower, clamp,loosen,movement,contraposition are controlled by electrical.
2. Raw paper tension adjustment adopts pneumatic or manual brakes
3. The top jaw is taper or bulge style
4. Max paper roll diameter: 1500mm
5. Drive or arm: Electric action of up and down, loose and tight, move and center.
6. Tension control equipped with pneumatic brake, manual control, also can connect with the machine online control.
| Width | 1400-2500mm |
| Paper roll dia. | φ350-φ1500mm |
| Single side hold weight | 2T |
| Pressure | 0.6-0.9Mpa |
| Total power | 4.0kw |
| Voltage | 3ph380v 50Hz |
Machine Introduction
|
|
|
|
Swing type
Max. paper roll dia.: 1400/ 1600 /1800mm
length: 800-1400mm
Clamping paper roll, moving right-left, arms up-down and paper roll rotation is motorized operated.
Support two paper rollers in the meantime, one is working, and another is for spare part.
Adopts “Spring clutch”.
Paper tension controlled by pneumatically operated disc brake, setting the tension easily.
