Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HH-M1600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | Paper Box Production Line Hydraulic Mill Roll Stand Corrugated Board Production Line | Maximum Paper Width: | 1600mm |
|---|---|---|---|
| Minimum Paper Width: | 900mm | Maximum Paper Mill Diameter: | 1500mm |
| Maximum Pneumatic Pressure: | 16-18Mpa | Power: | 220V/380V, 50Hz/60Hz |
| Length Of Track For Carry Paper Mill: | 6000mm | Function: | Corrugated Kraft Paper Holder Feeding |
| High Light: | RINO Corrugated Board Production Line,380V Hydraulic Mill Roll Stand,220V Hydraulic Mill Roll Stand |
||
Product Description

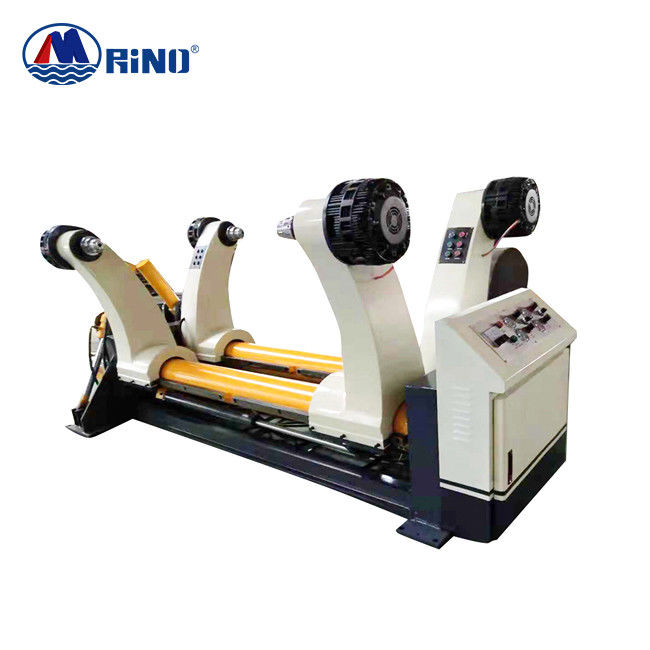

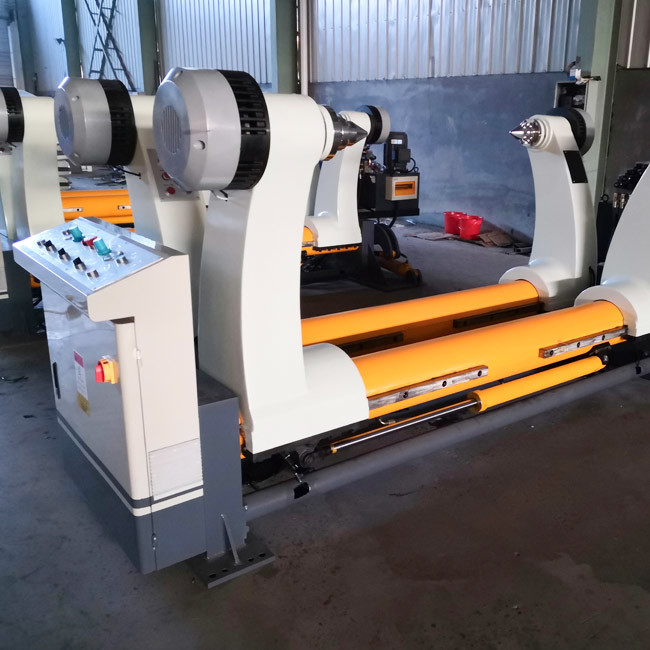

Paper Box Production Line Hydraulic Mill Roll Stand Corrugated Board Production Line
Features of Hydraulic Shaft Less Mill Roll Stand
1. Expiry width:800-2200mm,clamp paper diameter: Max:1500mm,Min:350mm
2. Single arm max load weight: 3ton
3. Symmetrical structure may also install two original paper, tube bundle is kept for paper assignments.
4. Adopts hydraulic drive, can complete base paper lifting, clamping, loosen, move on.
5. Adopt pneumatic tension adjust base paper tension and automatically bulge style chuck.
6. Tension control equipped with pneumatic brake,also can connect with automatic paper splicer to achieve quick paper supply.
Parameter of Hydraulic Shaft Less Mill Roll Stand
| Name | Main Parameter | |
| 1 | Expiry width | 1600mm |
| 2 | Clamp paper range | Max:1600--1800mm Min:900mm |
| 3 | Clamp paper Diameter | Max:1400mm Min:400mm |
| 4 | Singlearm Max load | Max weight: 1500kg |
| 5 | Clamp motor | Work power:0.75kw 4pcs |
| 6 | Lift motor | Work power:2.2kw 1pcs |
| 7 | Voltage | As customer’s required |
Hydraulic Shaft Less Mill Roll Stand Introduction
|
|
|
|
Main Parts
| Name of main parts | Brands or place of origin | material |
| Main shaft | Day steel production | diameter242mm |
| Swing arm | Production by own | Resin sand gray ironHT200 |
| wallboard | Jigang prduction | Q235AWelding parts |
| bearing | HRB OR C&U | |
| teeth chuck | 3-4inch shared | |
| Main electrical appliance | Siemens |
