Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HH-M1800 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 Set/Month |
Detail Information |
|||
Name: | Hydraulic Corrugated Cardboard Mill Roll Stand Pnemautic Mill Roll Stand | Maximum Working Paper Width: | 1800mm |
---|---|---|---|
Minimum Working Paper Width: | 900mm | Maximum Paper Mill Diameter: | 1500mm |
Maximum Working Pneumatic Pressure: | 16-18Mpa | Total Power: | 380V, 50Hz |
Length Of Track For Carry Paper Mill: | 6000mm | Function: | Kraft Paper Holder Feeding |
High Light: | Pneumatic Shaftless Mill Roll Stand,Hydraulic Shaftless Mill Roll Stand |
Product Description

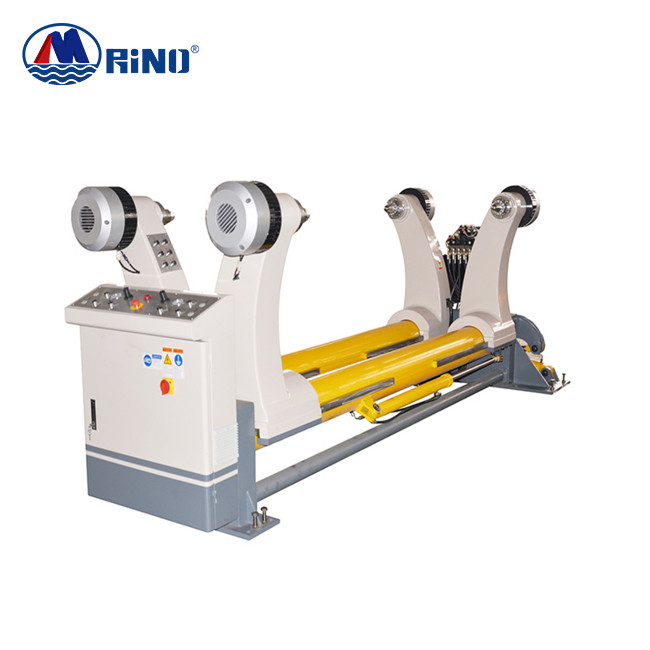

Hydraulic Corrugated Cardboard Mill Roll Stand Pnemautic Mill Roll Stand
Features of Hydraulic Shaft Less Mill Roll Stand
1) The structure is double rotating shafts and four arms, both arms support two papermaking rolls at the same time.
2) Hydraulically control the up and down, opening and centering of the paper machine rolls or electric opening and centering.
3) The use of multi-point brakes and automatic telescopic elastic chucks imported from Italy reduces paper waste
Parameter of Hydraulic Shaft Less Mill Roll Stand
Product Name
|
Hydraulic Mill Roll Stand
|
Width
|
1200-2800mm
|
Roll Paper Min. width
|
1200-2000mm: 800mm
2000-2800mm: 1200mm
|
Roll paper diameter
|
Max. 1500mm
|
Support Weight
|
Max. 3Tons
|
JIG
|
Standard: Inner expanding chuck
Option: Zero waste type chuck
|
Feeding trolley
|
6/7/8/10m, manual/electric/hydraulic, option. 2 heavy track
|
Brake
|
Pneumatic, multi-point brake
|
Material
|
Cast Iron
|
Network control
|
Available, need to connect to Auto Splicer, Automatic tension adjustment
|
Centering device
|
Option
|
Connect with Roll paper conveying system
|
Available
|
Hydraulic Shaft Less Mill Roll Stand Introduction
![]() |
![]() |
Main Parts
Name of main parts | Brands or place of origin | material |
Main shaft | Day steel production | diameter242mm |
Swing arm | Production by own | Resin sand gray ironHT200 |
wallboard | Jigang prduction | Q235AWelding parts |
bearing | HRB OR C&U | |
teeth chuck | 3-4inch shared | |
Main electrical appliance | Siemens |
