Electric Mill Roll Stand Corrugated Board Production Line 3ph 380v 50Hz

Name: Electric Mill Roll Stand Corrugated Board Production Line 3ph 380v 50Hz
Brand: RINO
SKU: HE-M2000
Rating: 4.9 (145 reviews)

Product Details:
Place of Origin:	China
Brand Name:	RINO
Certification:	CE
Model Number:	HE-M2000
Payment & Shipping Terms:
Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wrapped with film or in wooden case
Delivery Time:	40-60 Working Days After Deposit
Payment Terms:	L/C, T/T
Supply Ability:	100 Set/Month

Contact Now

Detail Information
Name:	Automatic Electric Mill Roll Stand Corrugated Machine Box Production Line	Maximum Paper Diameter:	φ1500mm
Paper Width:	2000mm	Voltage:	220V/380V
Usage:	Corrugated Kraft Paper Holding Feeding	Color:	Customized According To Your Needs
Grade:	Electrical Driving	Loading Capacity:	1.5-2MT/side
High Light:	Roll Stand Corrugated Board Production Line , 3ph Corrugated Board Production Line , 380v mill roll stand

Product Description

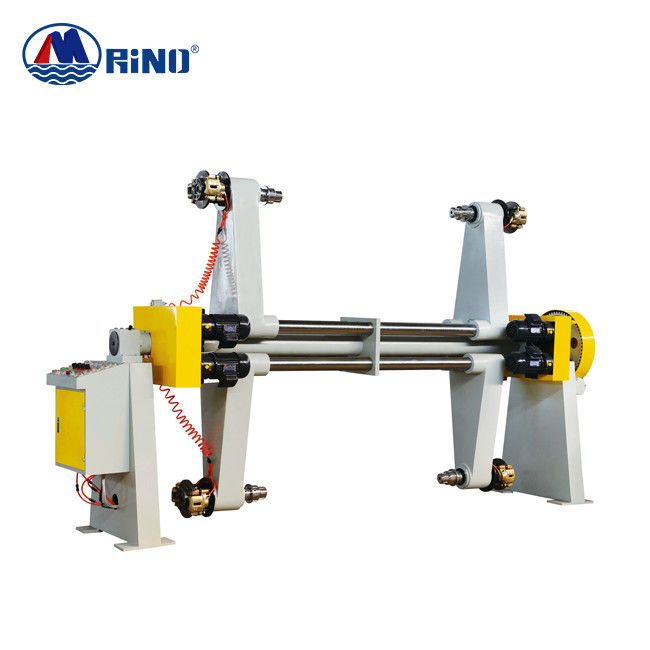

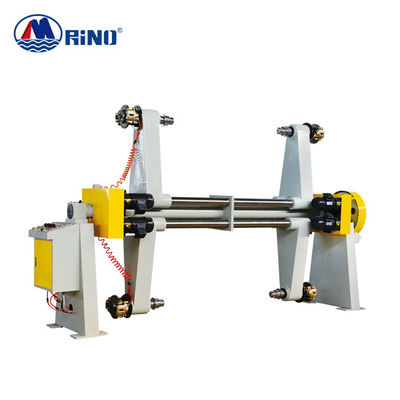

Automatic Electric Mill Roll Stand Corrugated Machine Box Production Line

Electrical Shaft-Less Mill Roll Stand Function

1. The symmetric structure can load two paper roll at the same time and can be used as non-stop working for paper exchanging.

2. Adopt electric way to clamp, loose, move to middle, left and right etc.

3. Brake adjustment adopts butterfly disc system.

4. It adopt two-level automatic self-inflating paper clamp; 3 inch.

Electrical Shaft-Less Mill Roll Stand Parameter

Machine Introduction

Swing type

Max. paper roll dia.: 1400/ 1600 /1800mm

length: 800-1400mm

Clamping paper roll, moving right-left, arms up-down and paper roll rotation is motorized operated.

Support two paper rollers in the meantime, one is working, and another is for spare part.

Adopts “Spring clutch”.

Paper tension controlled by pneumatically operated disc brake, setting the tension easily.
