Chain Feeding Corrugated Rotary Slotter Machine 40 Pcs/Min

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HR-S41400
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20 Working Days After Deposit
Payment Terms: T/T
Supply Ability: 100 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: RS4 Chain Feeding Carton Machine Corrugated Rotary Slotter Machine Maximum Corrugated Paper Size : 1400*2400mm
Maximum Machine Speed: 3000-4000pcs/h Paper Slotting Width: 7.5mm
Main Power Supply: 4 Kw Usage: Corrugated Carton Box Slotting And Creasing RS4
Phase Adjustment Method: Electric 360° Machine Working Speed: 40pcs/min
High Light:

Chain Feeding Corrugated Rotary Slotter Machine

,

40 pcs/min Corrugated Rotary Slotter Machine

Product Description

RS4 Chain Feeding Carton Machine Corrugated Rotary Slotter Machine



Machine Introduction of Corrugated Rotary Slotter Machine



1. The machine upper and below blade dise and upper and below pressing line wheel is electric horizontal adjustment, electric sideway motor on the upper blade dise that move more smoothly, to protect the motors and blade tool is more perfect, maintenance and change is more easy.

2. The machine bottom knife shaft and pressing line wheel knife shaft with eccentric crosshead shoe adjustment, can through three, five, seven layer paperboard spacing adjust pressure.

3. Paper feeder part all adopt electric adjustment, convenient to use.

4. Equipped with an emergency stop button, make the operation is safety

5. Can with frequency conversion motor and PLC touch screen multi-function control system.



Corrugated Rotary Slotter Machine Parameter



Model

The Max. Feeding Area

(mm)

The Max. Working Speed
(sheet/min)

The Slotting Width

(mm)

The Main Motor power

(KW)

HR-S4900

900*2400 60 7.5 4

HR-S41200

1200*2400 60 7.5 4

HR-S41400

1200*2400 60 7.5 4

HR-S41600

1600*2400 60 7.5 4



Main Structure



1. Feeding table adopts chain style manual feeding paper.

2. Slotting blade phase adopts 360 degree positive turn and reverse turn, blade axes treated. by rigidity chroming electroplate and nicety grinding ,firmness durable

3. Transmit gear adopt no clearance cooperation, debase gear adjust error.

4. Gear lubricate, adopt spout out style system .prolong gear using life.

5. Slotter phase :electric number digital adjust

6. Combined slotting creasing slitting knives which is easy to change order.

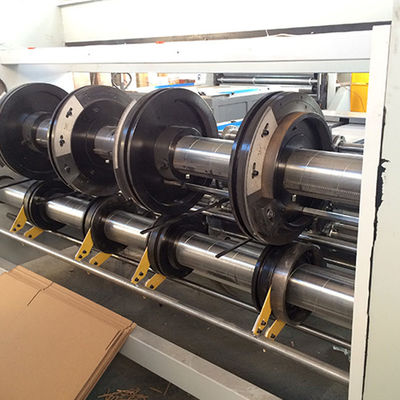

Detailed Picture

Chain Feeding Corrugated Rotary Slotter Machine 40 Pcs/Min 0

Chain Feeding Corrugated Rotary Slotter Machine 40 Pcs/Min 1

FAQ

1. Q: What is the machine warranty?
A :one year.
2. Q: What is the production time while placing order?
A: About 20 days
3. Q: What is the delivery time?
A: 40-60 days after get the payment.
4. Q: Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q: Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q: Do you have machines in stock?
A:  for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
7. Q: Do you inspect machines before packing?
A: Of course we do.we have QC department to debug the machine before packing
8. Q: What's the payment term?
A: T/T 30% in advance, the balance paid before delivery.
9.  Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
