900mm Rotary Creaser Slotter Machine Adopts Chain Feeding Model

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HR-S4900
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20 Working Days After Deposit
Payment Terms: T/T
Supply Ability: 100 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Semi Automatic Rotary Slotter Corrugtaed Box Machine Carton Machine Max. Feeding Paper : 900*2400mm
Maximum Working Speed: 60pcs/min Slotting Width: 7.5mm
Main Motor : 4 Kw Usage: Corrugated Board Slotting And Creasing
Phase Adjustment: Electric 360° Working Speed: 40-50 Pcs/min
High Light:

900mm Rotary Creaser Slotter Machine


Chain Feeding Rotary Creaser Slotter Machine

Product Description

Semi Automatic Rotary Slotter Corrugtaed Box Machine Carton Machine


Machine Introduction of Corrugated Rotary Slotter Machine


1.Paper feeding unit:

(1) It adopts chain feeding model controlled by step-less speed regulation.

(2) Lead edge of paper feeding is equipped with elastic feeding pressure plate to ensure the bent paperboard to be smoothly sent in.

(3) Optically controlled counter presets order number to plan the production.

2.Slotting Unit:

(1) Three groups of slotting, one group of corner cutting, two groups of slitting with four groups of creasing.

(2) Mechanical phase adjustment is read by dial.

3.Complete Machine:

(1) Joggling function enables adjusting workers to operate independently.

(2) Emergent stopping function secures the operation without any waste.

(3) The whole machine axles and rollers are all plated with rigid chrome and grinded surface.

(4) Working platform adjustment with clutch makes size rectification convenient.


Corrugated Rotary Slotter Machine Parameter



The Max. Feeding Area


The Max. Working Speed

The Slotting Width


The Main Motor power



900*2400 60 7.5 4


1200*2400 60 7.5 4


1200*2400 60 7.5 4


1600*2400 60 7.5 4


Main Structure


1. Feeding table adopts chain style manual feeding paper.

2. Slotting blade phase adopts 360 degree positive turn and reverse turn, blade axes treated. by rigidity chroming electroplate and nicety grinding ,firmness durable

3. Transmit gear adopt no clearance cooperation, debase gear adjust error.

4. Gear lubricate, adopt spout out style system .prolong gear using life.

5. Slotter phase :electric number digital adjust

6. Combined slotting creasing slitting knives which is easy to change order.


Detailed Picture

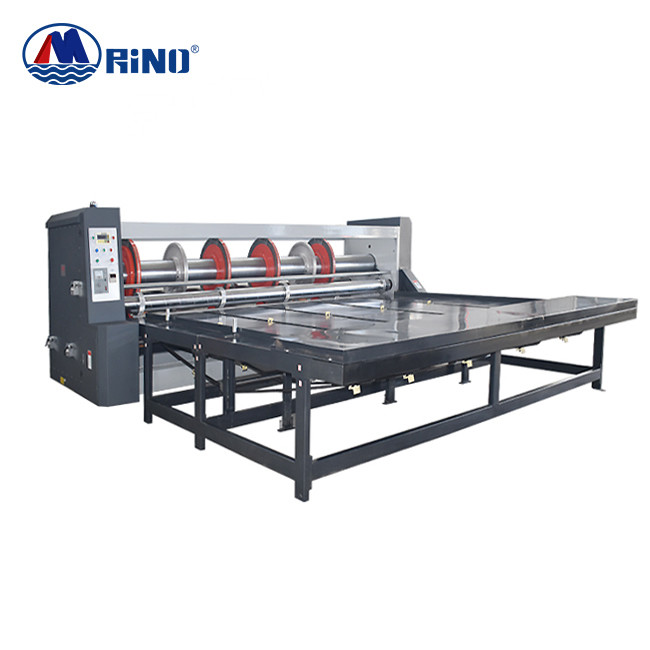

900mm Rotary Creaser Slotter Machine Adopts Chain Feeding Model 0

900mm Rotary Creaser Slotter Machine Adopts Chain Feeding Model 1


1. Q: What is the machine warranty?
A :one year.
2. Q: What is the production time while placing order?
A: About 20 days
3. Q: What is the delivery time?
A: 40-60 days after get the payment.
4. Q: Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q: Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q: Do you have machines in stock?
A:  for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
7. Q: Do you inspect machines before packing?
A: Of course we do.we have QC department to debug the machine before packing
8. Q: What's the payment term?
A: T/T 30% in advance, the balance paid before delivery.
9.  Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
