Rino Packaging Machinery Co., Ltd

Creasing Corrugated Rotary Slotter Machine 4000w Simple Maintenance

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HR-S41200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20 Working Days After Deposit
Payment Terms: T/T
Supply Ability: 100 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Slotter Creasing Box Making Corrugated Carton Rotary Slotting Machine Max. Feeding Paper : 1200*2600mm
Maximum Speed: 60pcs/min Cardboard Slotting Width: 7.5mm
Total Power: 4 Kw 4000w Usage: Corrugated Box Slotting And Creasing
Phase Adjustment Method: Electric 360° Working Speed: 40-50 Pcs/min
High Light:

Creasing Corrugated Rotary Slotter Machine

,

4000w Corrugated Rotary Slotter Machine

Product Description

Slotter Creasing Box Making Corrugated Carton Rotary Slotting Machine



Machine Introduction of Corrugated Rotary Slotter Machine



1. The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing correction and surface hard chromium plating.

2. The engine drive gear is adopted 40Cr, the shaving machining nitrogen treatment, tinted with high precision.

3. Machine transmission parts (shaft, gear joint) is adopted free key connection (LOCK -ALX),clears the connection gap.lt is suitable for long-term high speed running with high torque.

4. The machine drive bearing ,important driving parts adopt three big domestic famous brand:Hava los,simple maintenance,long service life.

5. The engine lubrication system is adopted automatic spray type lubrication, equipped with auto oil level balance system.

6. It adopts Working gap adjustment, self-locking type worm wheel and worm gear device , quick performance and convenient adjustment.

7. The main motor is adopted frequency conversion control.Ilt makes start, running more steadily and saves more energy.

8.Rotary die-cutting department and rotary slotting department is optional for you.





Corrugated Rotary Slotter Machine Parameter



Model

The Max. Feeding Area

(mm)

The Max. Working Speed
(sheet/min)

The Slotting Width

(mm)

The Main Motor power

(KW)

HR-S4900

900*2600 60 7.5 4

HR-S41200

1200*2600 60 7.5 4

HR-S41400

1200*2600 60 7.5 4

HR-S41600

1600*2600 60 7.5 4





Detailed Picture

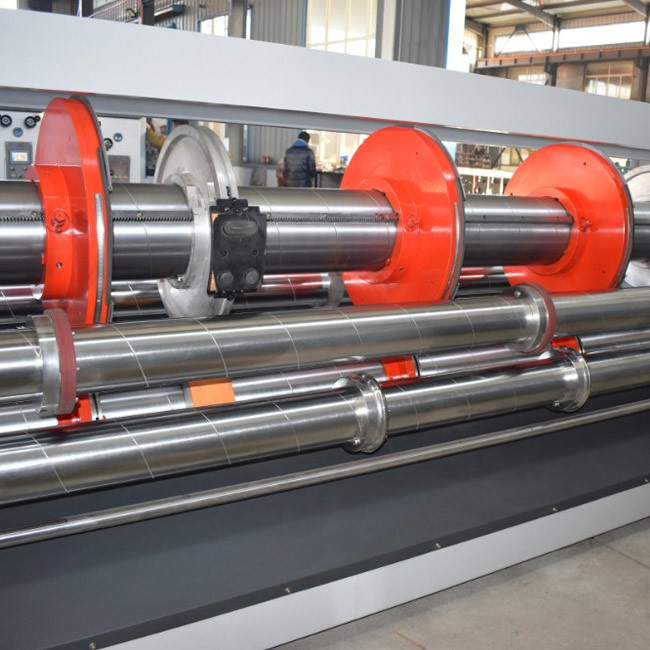

Creasing Corrugated Rotary Slotter Machine 4000w Simple Maintenance 0

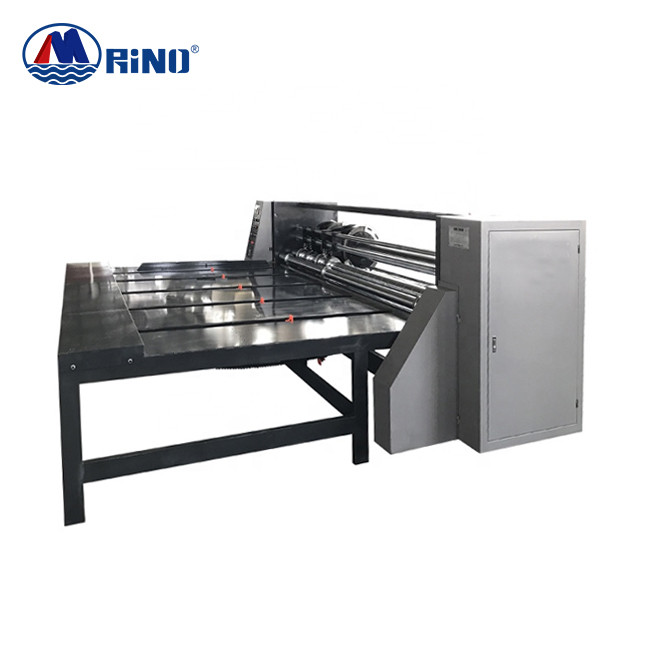

Creasing Corrugated Rotary Slotter Machine 4000w Simple Maintenance 1

FAQ

1. Q: What is the machine warranty?
A :one year.
2. Q: What is the production time while placing order?
A: About 20 days
3. Q: What is the delivery time?
A: 40-60 days after get the payment.
4. Q: Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q: Does the packing strong?
A: Yes, all packages are double-checking before delivery
