Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HR-S41400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | Slotter Corrugated Box Rs4 Slotter Machine Carton Box Making Machine | Max. Feeding Paper : | 1400*2400mm |
|---|---|---|---|
| Maximum Machine Speed: | 60pcs/min | Paper Slotting Width: | 7.5mm |
| Main Power: | 4 Kw | Usage: | Corrugated Carton Box Slotting And Creasing |
| Phase Adjustment Method: | Electric 360° | Machine Working Speed: | 40-50 Pcs/min |
| High Light: | 50 Pcs/Min Corrugated Rotary Slotter Machine,RINO Corrugated Rotary Slotter Machine,CE corrugated box slotting machine |
||
Product Description

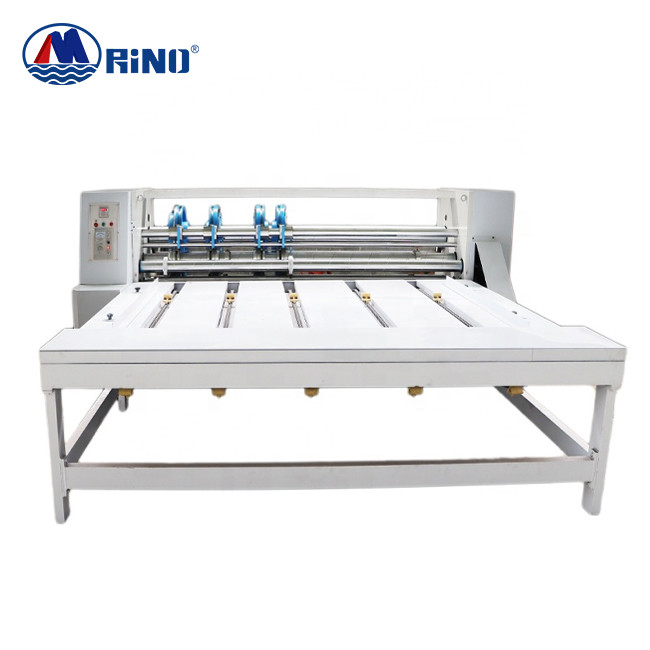

Slotter Corrugated Box Rs4 Slotter Machine Carton Box Making Machine
Machine Introduction of Corrugated Rotary Slotter Machine
Slotting machine is a combination equipment, it can perform slotting, slitting, creasing one time, Its main characteristics of hand feeding single cardboard, all of cardboard is ok include ben board.
1. Chain feeding, side gauge positioning to ensure paper feeding accuracy
2. Planetary gear type 360-degree electric phase adjustment, fast and convenient
3. Adopt manual four-tool synchronous adjustment box height, convenient and quick (optional electric adjustment)
4. Automatic spray Lubrication Gear to prolong Gear Life
5. The grooved bottom shaft is designed with a cross slider eccentric sleeve, which can be adjusted according to the thickness of the cardboard and the pressure of the upper cutter shaft.
6. All shaft grinding, hard chrome plating
7. The slotting cutter adopts high quality 48CrMo and is quenched at high temperature.
8. The variable-frequency motor drive, the speed is adjustable, and the machine is running smoothly
9. Electronic counter, showing the quantity of production.
10. Slotted line pressing manual synchronous traverse (electric optional)
11. Optional: punch holes device
Corrugated Rotary Slotter Machine Parameter
| Model |
The Max. Feeding Area (mm) |
The Max. Working Speed (sheet/min) |
The Slotting Width (mm) |
The Main Motor power (KW) |
|
HR-S4900 |
900*2400 | 60 | 7.5 | 4 |
|
HR-S41200 |
1200*2400 | 60 | 7.5 | 4 |
|
HR-S41400 |
1200*2400 | 60 | 7.5 | 4 |
|
HR-S41600 |
1600*2400 | 60 | 7.5 | 4 |
Detailed Picture
FAQ
1. Q: What is the machine warranty?
A :one year.
2. Q: What is the production time while placing order?
A: About 20 days
3. Q: What is the delivery time?
A: 40-60 days after get the payment.
4. Q: Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q: Does the packing strong?
A: Yes, all packages are double-checking before delivery
