RINO 1600mm Corrugated Box Slotting And Creasing Machine Chain Feeding

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HR-S41600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20 Working Days After Deposit
Payment Terms: T/T
Supply Ability: 100 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 1600 Corrugated Cardboard Rotary Slotter Machine RS4 Box Slotting Cutting Machine Max. Feeding Paper : 1600*2600mm
Maximum Machine Speed: 60pcs/min Paperboard Slotting Width: 7.5mm
Machine Power: 4kw Usage: Corrugated Carton Box Slotting And Creasing
Phase Adjustment Method: Electric 360° Machine Working Speed: 40-50 Pcs/min
High Light:

1600mm Corrugated Box Slotting And Creasing Machine

,

RINO Corrugated Box Slotting And Creasing Machine

Product Description

1600 Corrugated Cardboard Rotary Slotter Machine RS4 Box Slotting Cutting Machine



Machine Introduction of Corrugated Rotary Slotter Machine



1)  This machine adopts chain feeding type, bilateral blocking positioning, to ensure that feed accurately.

2)  Box height adjust is four knife synchronization, the length adjustment, the knife and the line pressing on the top and the bottom the paper cutter and the paper pressure rod, linkage shift, save the time of order transformation.

3) The phase adopts structure of planetary gear type electric 360°adjustment digital display.

4) The machine transmission uses cross slide block structure, uses automatic spray type lubrication circulating oil supply, the gear adopts free key connection, remove the link clearance.

5) The electrical appliances adopts international famous brand, the bearing adopts rolling bearing from Harbin, high speed and has stable performance.

6) The punching and the clasp hands device and the free plate quad die cutting device is optional.



Corrugated Rotary Slotter Machine Parameter



Model

The Max. Feeding Area

(mm)

The Max. Working Speed
(sheet/min)

The Slotting Width

(mm)

The Main Motor power

(KW)

HR-S4900

900*2600 60 7.5 4

HR-S41200

1200*2600 60 7.5 4

HR-S41400

1200*2600 60 7.5 4

HR-S41600

1600*2600 60 7.5 4





Detailed Picture

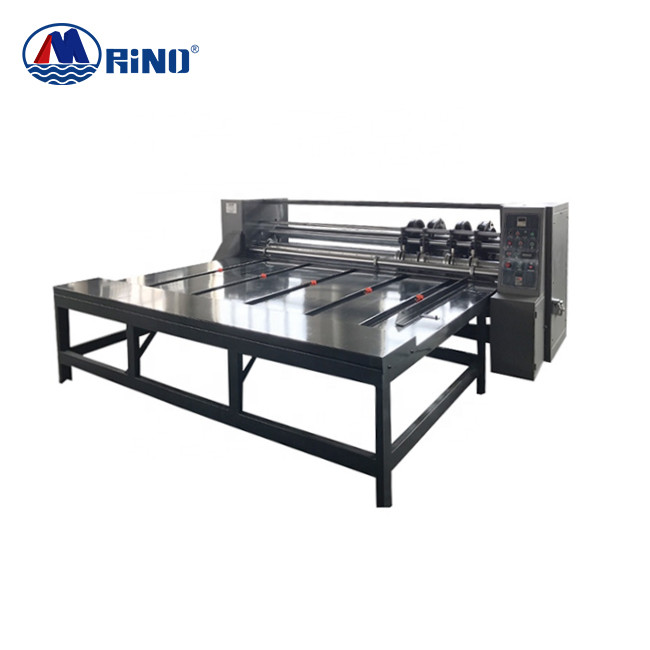

RINO 1600mm Corrugated Box Slotting And Creasing Machine Chain Feeding 0

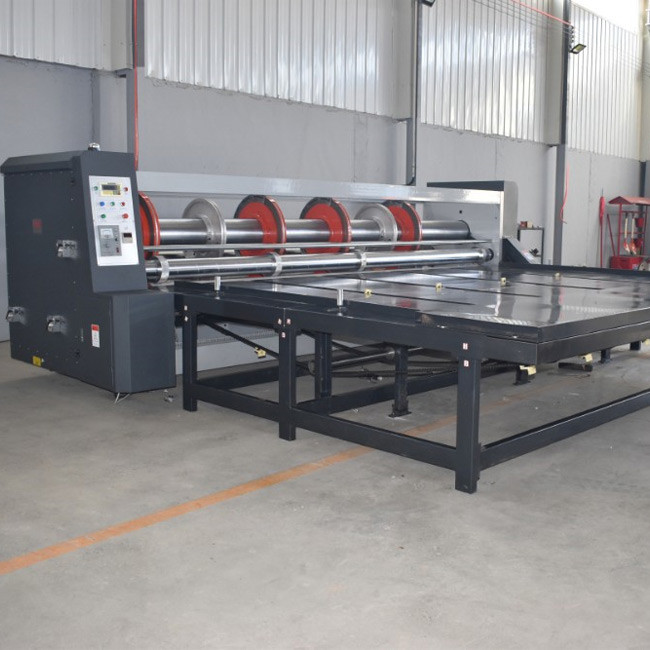

RINO 1600mm Corrugated Box Slotting And Creasing Machine Chain Feeding 1

FAQ

1. Q: What is the machine warranty?
A :one year.
2. Q: What is the production time while placing order?
A: About 20 days
3. Q: What is the delivery time?
A: 40-60 days after get the payment.
4. Q: Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q: Does the packing strong?
A: Yes, all packages are double-checking before delivery
