Corrugated Slitter Scorer Machine

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HTB-SS 2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20 Working Days After Deposit
Payment Terms: T/T
Supply Ability: 30 Set/Month
  • Detail Information
  • Product Description

Detail Information

Model: HTB-SS 2500 Quantity Of Blade: 4 Or 5 Blades According To Customer's Requirement
Maximum Paper Slitting Width: 2500mm Thickness Of Knife: 1.3mm
Total Machine Power: 4000W Overall Dimension: 3700*1600*1500mm
Voltage: 220V/380V Name: Thin Blade Slitter Scorer Machine Corrugated Carton Box Making Machine
High Light:

Corrugated Slitter Scorer Machine


CE Slitter Scorer Machine

Product Description

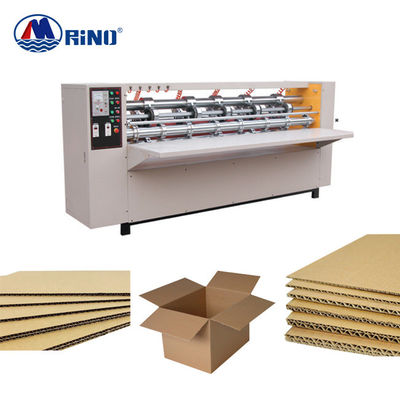

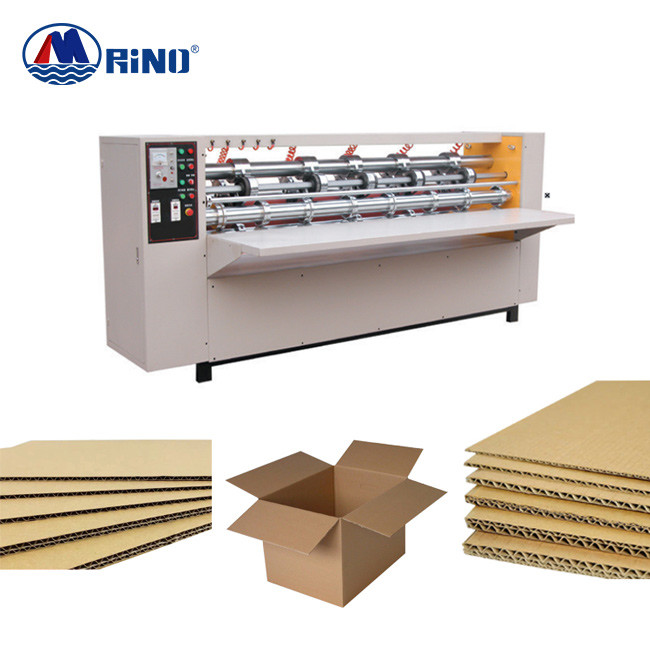

 Thin Blade Slitter Scorer Machine Corrugated Carton Box Making Machine


Thin Blade Slitter Scorer Machine Introduction

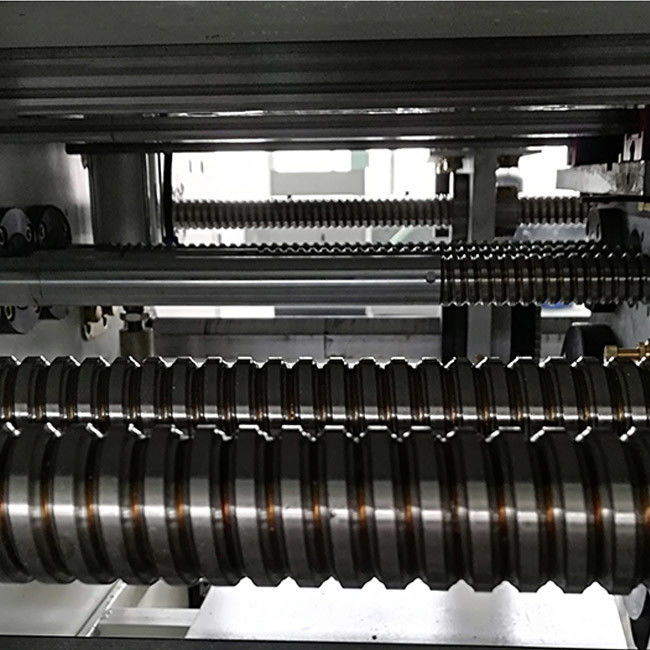

1)  Used thin blade slitting paperboard to avoid burr and be flattened. Finished cardboard is flat, smooth and free from burrs and press flatten, good straightness, improve quality and appearance of cardboard

2)  Automatic sharpening blades, cutting and grinding at the same time. Keep the sharpness of blade and increase working efficient.

3)  Scorer with the Martin technique of French, no tear for high, medium and low-grade cardboard.



Parameter of Thin Blade Slitter Scorer Machine


Model HTB-SS 1800 HTB-SS 2000 HTB-SS 2200 HTB-SS 2500
Qty. of blade pcs 4 or 5 blades or as customer's requirement
Qty. of scorer pcs 6 or 8 scorers or as customer's requirement
Max slitting width mm 1800 2000 2200 2500
Min slitting width mm 140 140 140 140
Min scoring distance mm 30 30 30 30
External diameter of blades mm Φ200 Φ200 Φ200 Φ200
Thickness of blades mm 1.3 1.3 1.3 1.3
Power KW 4 4 4 4
Overall dimension(L*W*H) mm 3000*1600*1500 3200*1600*1500 3400*1600*1500 3700*1600*1500




Corrugated Slitter Scorer Machine 0
