Touch Screen 2000mm Slitter Scorer Machine For Corrugated Board

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HT-BC2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20 Working Days After Deposit
Payment Terms: T/T
Supply Ability: 30 Set/Month
  • Detail Information
  • Product Description

Detail Information

Product Model: HT-BC2000 Number Of Blade: Blades Can Be Customized
Maximum Slitting Length: 2000mm Design Speed: 200m/min
Working Speed: 150m/min Order Change Time: 3-8s
Order Change Precision: ±0.5mm Name: Computer NC Thin Blade Slitter Scorer Machine In Corrugated Cardboard Production Line
High Light:

Touch Screen Slitter Scorer Machine


Corrugated Board Slitter Scorer Machine


2000mm Slitter Scorer Machine

Product Description

 High Quality Touch Screen Corrugated Board Thin Blade Slitter Scorer Machinery


Thin Blade Slitter Scorer Machine Introduction


1. Using thin tungsten steel alloy knife, the knife is sharp and its service life is more than 8 million meters.
2. Grinding tool is computer controlled automatic or manual grinding tool. It can cut edge and grind tool to improve production efficiency.
3. Imported synchronous drive device is adopted, which has high accuracy, long service life and low running noise.
4. standard suction waste port, when changing the order, the position of suction waste port is adjusted synchronously with the knife.

5. The order changeover for slitting and scoring adopts ball lead screws and nuts for transmission, so the mechanical precision is high, the rotation is flexible, the reverse gap is small, and the locating is accurate; the locating precision for slitting& scoring≤±0.5mm;
6. The order changeover for slitting and scoring adopts a linear guide rail for guiding to offer high mechanical precision, stable guiding and accurate locating;
7. Deviation correction for lateral movement in the whole machine: lateral movement±100 mm;


Parameter of Thin Blade Slitter Scorer Machine

Width 1600-2500mm
Design Speed 200m/min
Working Speed 160m/min
Order change time 3-8s
Order change precision ±0.5mm
Knife & score 5 slitting knives ,8 score lines
Min.Slitting width 310mm

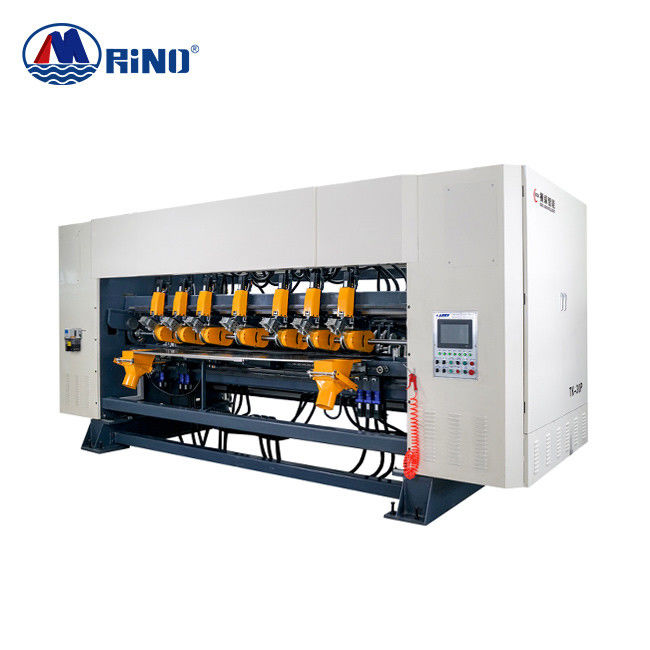

Touch Screen 2000mm Slitter Scorer Machine For Corrugated Board 0

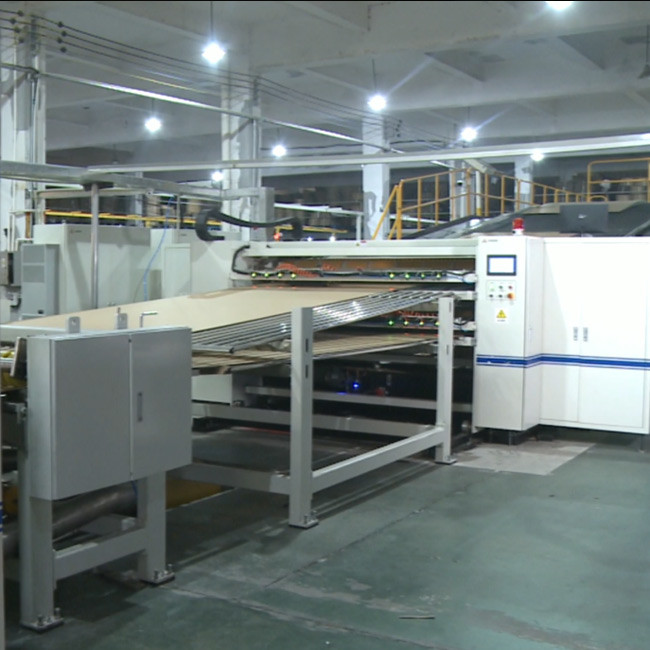

Touch Screen 2000mm Slitter Scorer Machine For Corrugated Board 1
